Product Details:
|
| Product Name: | C276 Round Bar | Alloy Or Not: | Non-alloy |
|---|---|---|---|
| Surface Treatment: | Polished | Tolerance: | 0/+1mm |
| Length: | 2000-6000mm | Technology: | Clod Drawn |
| High Light: | UNS N10276 Stainless Steel Round Bar,Stainless Steel Round Bar C276 Pipes,Hastelloy Stainless Steel Round Bar |
||
Bright Polished Hastelloy C276 Round Bar / Stainless Steel Bright Bar Diameter 4 - 100mm
Specification of our hastelloy C276 round bar
|
Products Name |
Hastelloy C276 round bar |
|
Finishing |
Hot rolled / Cold Drawn |
|
Diameter |
hot rolled bars: 10 - 250mm |
|
cold drawn bars: 4 - 60mm |
|
|
Length |
6m or cutting any length as request |
|
Standard |
ASTM EN |
|
MOQ |
100 kgs |
|
Packing |
surround by waterproof paper and plastic foil |
|
Loading Port |
Shanghai Port(China) |
|
Certificate |
EN 10204-3.1 / CO or other certificate as request |
| Other Grade |
Stainless steel: 201 303 304 310S 316L 321 2205 2507 410 420.etc Monel: 400 500 Inconel 600 625 800 825.etc |
Hastelloy C276 - UNS N10276 Advanced Nickel Alloy
Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.
Alloy C-276 is widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.
Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.
| Ni | Mo | Cr | Fe | W | Co | Mn | C | V | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Remainder
|
15.0-17.0
|
14.5-16.5
|
4.0-7.0
|
3.0-4.5
|
2.5 max
|
1.0 max
|
.01 max
|
.35 max
|
.04 max
|
.03 max
|
.08 max
|
Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.
Alloy C276 welding products are used as matching composition filler material for welding C276 alloy wrought and cast products, for dissimilar welding applications including other nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.
Specifiacations: ASME-SFA-5.14 ERNiCrMo-4
Forms of C276 Filler Metal Available at Mega Mex
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet / Plate | Bar | Forging | Fitting | Wire |
|---|---|---|---|---|---|---|---|---|
|
B622
|
B619
|
B622
|
B626
|
B575
|
B574
|
B564
|
B366
|
|
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
|
Bar
|
110.0
|
52.6
|
62
|
|
Plate
|
107.4
|
50.3
|
67
|
|
Sheet
|
115.5
|
54.6
|
60
|
|
Tube & Pipe
|
105.4
|
45.4
|
70
|

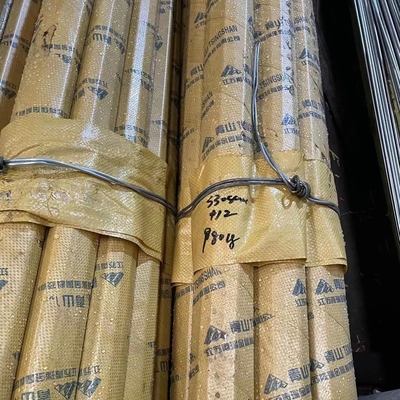

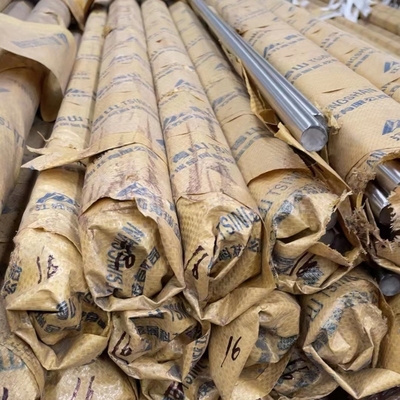

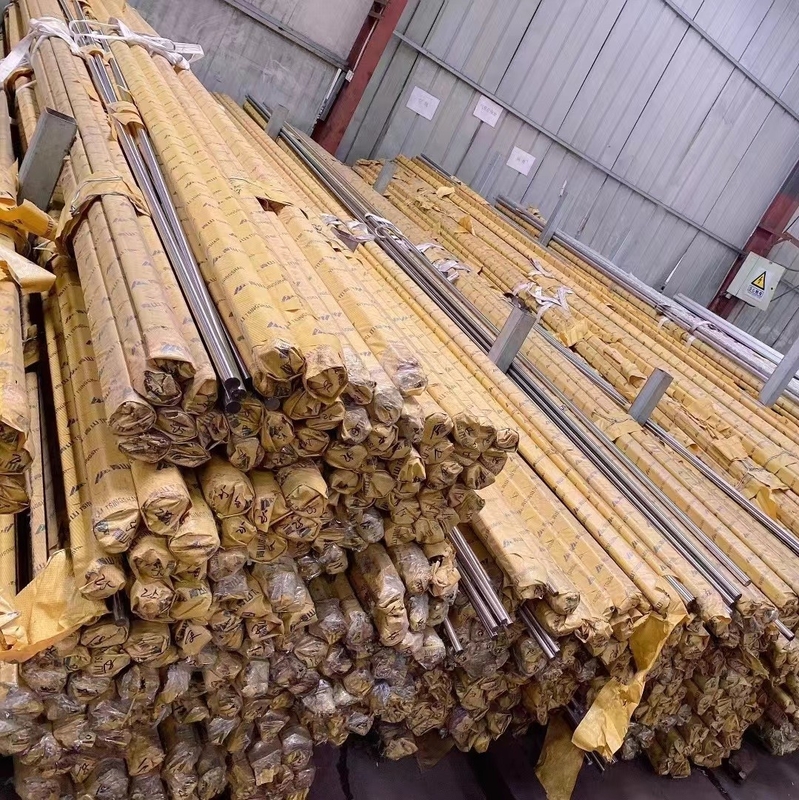

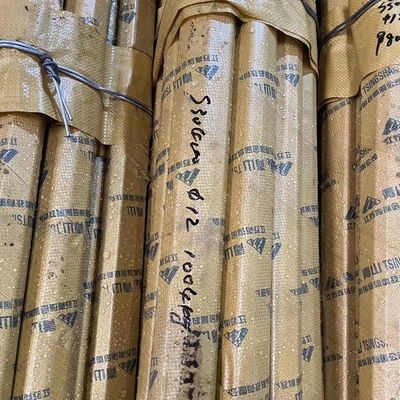

Products Show
