UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting

UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting
UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting
UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting

Large Image :  UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting

Product Details:
Place of Origin: China
Brand Name: BAOSTEEL
Model Number: Incoloy 825
Payment & Shipping Terms:
Minimum Order Quantity: 200 kgs
Price: 15 - 30 USD/Kg
Packaging Details: Protected by PVC and PE cover. Packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. In addition, clear labels are tagged on the ou
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 tons per ton

UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting

Description
Certification: CE, ISO, BV, SGS Stock: Always In Good Stock
Product Name: Incoloy 825 Alloy Sheet And Plate Length: 1000mm-6000mm
Width: 1000mm, 1219mm, 1250mm, 1500mm Thickness: 0.8 - 40.0mm
Standard: ASTM, AISI, JIS, DIN, EN, GB Type: Sheet / Plate
Color: 2B NO.1 Application: Chemical Industrial
Sample: Allowed
High Light:

Incoloy Hastelloy Plate Sheets

,

UNS N08825 Hastelloy Plate

,

0.9 mm Hastelloy Plate 825 Sheets

UNS N08825 Incoloy 825 Sheets and Plates Thickness 0.9 - 40.0mm Laser Cutting as Request



Products Specification



Products Name Incoloy 825 sheet and plate
Thickness 0.8 - 40.0mm
Width 1000mm 1219mm 1500mm or customs as request
Length 2000mm 2438mm 6000mm or customs as request
Surface 2B NO.1
Brand BAOSTEEL
Service Cutting Bending
Other Grade Monel 400 500 Hastelloy C276 C4 inconel 625 600 .etc
MOQ 200 Kgs
Deliver time within 12 days
Packing waterproof paper and wooden pallets
Loading Port Shanghai



UNS N08825 Incoloy 825 is a nickel-iron-chromium alloy that contains small amounts of titanium, copper, and molybdenum. Incoloy® 825’s chemical composition provides great resistance to many corrosive environments, such as pitting, crevice corrosion, intergranular corrosion, and stress- corrosion cracking. Incoloy 825 nickel alloy has good mechanical properties from moderate to high temperatures, with a hot- working range of 1600 to 2150º F. Alloy 825 also maintains good weldability for all conventional processes.
At Magellan Metals, we are an industry-leading provider of exceptional quality Incoloy 825 products including Incoloy 825 pipe, Incoloy 825 tube/tubing and Incoloy 825 plate.



Chemical Analysis
C .05 max
MN 1.0 max
S .03 max
Si .5 max
Cr 19.5- 23.5
Ni 38.0- 46.0
Mo 2.5- 3.5
Cu 1.5- 3.0
Ti 0.6- 1.2
Al 0.2 max
Fe 22.0 min

Incoloy 825 Material Advantages

UNS N08825 is designed to provide exceptional resistance to many corrosive environments. It is like alloy 800 but has improved resistance to aqueous corrosion. It also maintains excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Some of the additional benefits associated with Alloy 825, include:
  • Good mechanical properties at both room and elevated temperatures up to approximately 1000°F
  • Permission for pressure-vessel use at wall temperatures up to 800°F
  • Excellent resistance to reducing and oxidizing acids
  • Good resistance to stress-corrosion cracking
  • Satisfactory resistance to localized attack like pitting and crevice corrosion
  • Very resistant to sulfuric and phosphoric acids


Incoloy 825® Available Formats

Incoloy 825® sheet is available in thicknesses ranging from .020 to .156". Incoloy 825® strip in coil form is available in lighter gauges up 12" wide. Incoloy 825® plate is available up 3" thick.
Nickel alloy Incoloy 825® bar is available in wrought bar up to 6" diameter and larger sizes and shapes may be forged to order.
Incoloy 825® seamless pipe is available up to 8" NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Incoloy 825® tubes are available up to 1-1/2" OD. Nickel alloy Incoloy 825 nickel alloy redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity. Additionally, Magellan Metals offers nickel alloy Incoloy 825® in a variety of forms, including:

  • Bar
  • Wire
  • Sheet
  • Plate
  • Forgings
  • Pipe fittings
  • Flanges
  • Seamless & Welded pipe
  • Seamless Tube & Welded tube
  • Weld Rod

Incoloy Alloy 825 Applications

Nickel alloy UNS N08825 has many different industrial applications, some of which include:

  • Propeller shafts
  • Phosphoric acid evaporators
  • Tank trucks
  • Hot vessels for food, water, sea water
  • Sulphuric acid piping and vessels
  • Marine exhaust systems

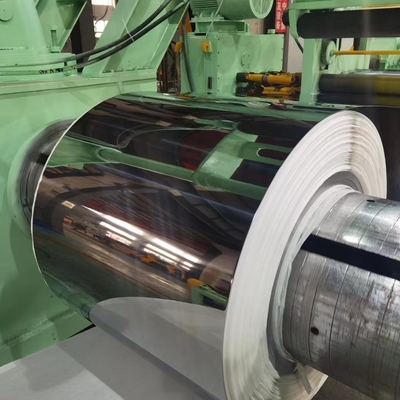

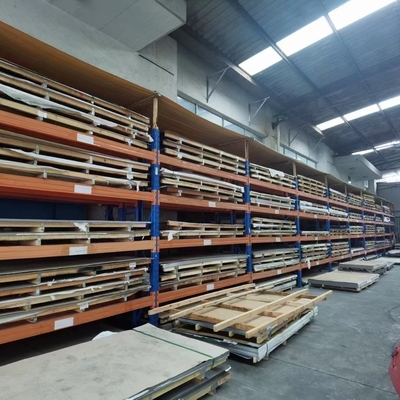

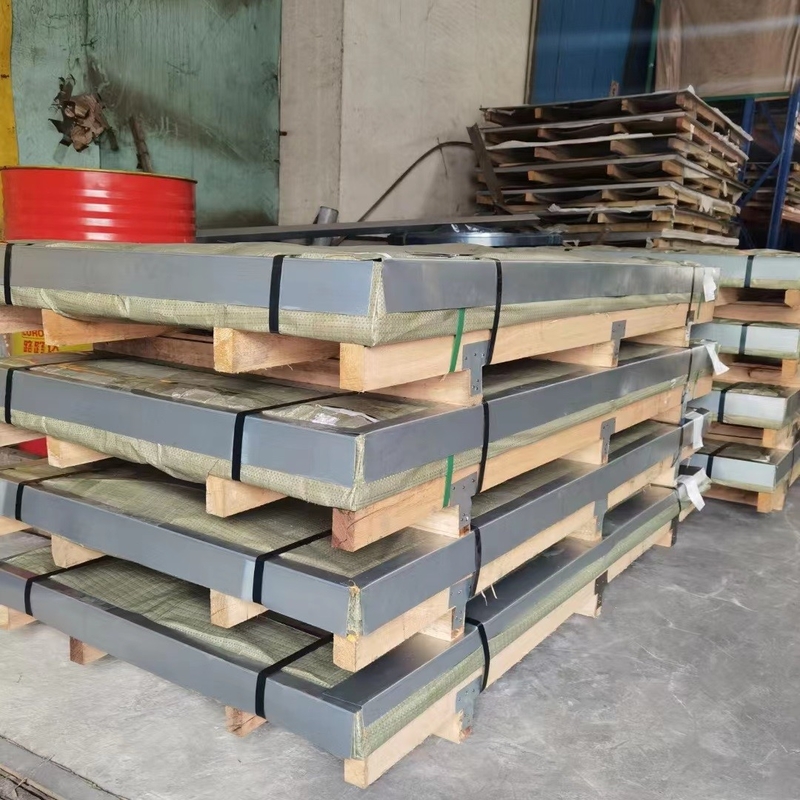

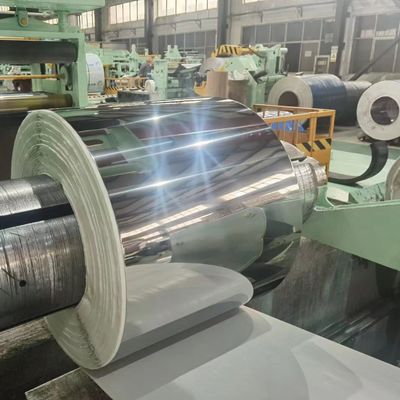

Products Show



UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting 0UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting 1UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting 2UNS N08825 Incoloy Hastelloy Plate 825 Sheets Thickness 0.9 Mm Laser Cutting 3
