Product Details:
|
Name: | Ship Steel Plate | Material: | A D E F Grade |
---|---|---|---|
Length: | 6-11m | Width: | 1500-2500mm |
Thickness: | 5-250mm | Type: | Hot Rolled |
Highlight: | shipping plate,marine steel plate |

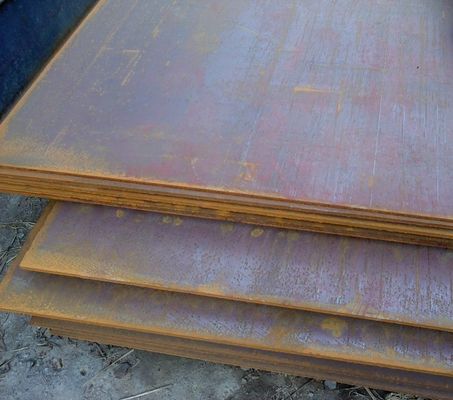

steel ship plate EH40
Thickness:5-250 mm
Width:1500-3000mm
Standard: ABS/KR/CCS/GL/BV/DNV/LR/KDK/NKK/RINA
ABS DNV EH40 shipbuild steel plate, EH40 steel plate,hot rolled steel plate
Commodity | EH40 ship steel plate: |
Standard | AISI, ASTM, BS, DIN, GB, JIS |
Model | EH40, DH40, AH40, 2HGR50, EH36, EH32, DH36, DH32, AH32,AH36,Q235A/B/D |
Thickness | 5 to250mm |
Width | 1500 to 2500mm |
Length | as per customer's request |
Application | Mainly used in automotive, appliance, machine, printing, construction and building materials |
DNV EH40 extra high Strength Chemical Composition | |||||||
Grade | The Element Max (%) | ||||||
C | Si | Mn | P | S | Al | N | |
NV/EH40 | 0.18 | 0.10-0.50 | 0.9-1.6 | 0.035 | 0.035 | 0.015-0.08 |
|
Nb | V | Ti | Cu | B | Ni | Mo | |
0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 |
Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
DNV EH40 extra high general strength property | |||||||
Grade |
|
| Mechanical Property |
| |||
Thickness | Yield | Tensile | Elongation | Degree | Energy 1 | Energy 2 | |
NV/EH40 | mm | Min Mpa | Mpa | Min % | -40 | J | J |
t≤50 | 390 | 510-650 | 20% | 27 | 41 | ||
50<t≤70 | 390 | 510-650 | 20% | 30 | 45 | ||
70<t≤150 | 390 | 510-650 | 20% | 37 | 55 | ||
Note: Energy 1 is transverse impact test, Energy 2 is longitudinal |
Boiler steel plates | Alloy steel plates | High strength plate| Carbon steel plate | Stainless steel plate
Equivalent steel grade of NV/EH40 | |||||||
ABS | KR | LR | BV | CCS | NK | GL | RINA |
AB/EH40 | R EH40 | LR/EH40 | BV/EH40 | CCS/EH40 | K EH40 | GL-EH40 | RI/EH40 |
Advantage of us
1, fast deliver
2, good quality
3, cheap price
