Product Details:
|
| Name: | Steel Round Bar | Dia: | 20-420mm |
|---|---|---|---|
| Length: | 6-11m | Type: | Hot Rolled / Cold Rolled |
| Grade: | Q215 - Q235 | Application: | Construction And Machine Manufacture |
| Highlight: | bright steel round bar,carbon steel round bars |
||
| Product name | Steel round bar |
| Dimensions | 15-150mm |
| Length | 6-12m |
| Brand | RGTS |
| Application | Mild Steel Round Bar is used for making security grills, screens, Construction and Machine Manufacture. |
| Finish condition | hot rolled |
| Appearance | new |
| Sales mode | factory direct sales |
| Quality assurance | mill test certificate is provided, third party inspection is acceptable |
| Trade term | FOB/CIF/CFR |
| Payment term | 30%T/T in advance, balance against B/L copy; Sight irrevocable LC |
| Delivery time | Within 15-30 days after receiving original LC or deposit, also according to the quantity |
| Loading port | Xingang tianjin, China |
| Certification | ISO9001:2000/BV |
Other detail of steel round bar
Size Tolerance:
Length tolerance: +100mm/-0mm
Side length tolerance: +/-2mm
Straightness:Max 6mm/m
Both end of each bar must be cut
Ladle furnaced and vacuum de-gassed

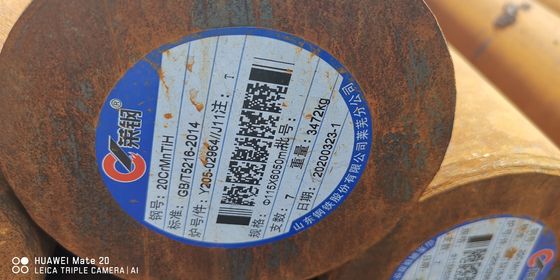

Show heat No. on each bar
20CrMnTi Gearing Steel stockholders and suppliers from china. more 16 years experience in GB 20CrMnTi Gearing Steel supply.
GB 20CrMnTi gear steel is GB standard Alloy Carburizing Gearing steel, GB 20CrMnTi properties is a chromium, manganese, titanium alloy steel specification. 20CrMnTi is equivalent with others standard bearing/Gearing steel, gearing steel. 20crmnti steel properties as below:
Related Specifications ASTM A29/A29M GB EN 10083/3 JIS G4053 GB GB/T GB/T 3077-1988 20CrMnTi steel data files down
Form of Supply
GB 20CrMnTi Gearing Steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. GB 20CrMnTi steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 20CrMnTi bearing steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, provide a quality precision finished bar to tight tolerances.
Chemical composition
| C(％) | 0.95～1.05 | Si(％) | 0.15～0.35 | Mn(％) | 0.25～0.45 | P(％) | ≤0.025 |
| S(％) | ≤0.025 | Cr(％) | 1.40～1.65 |
Heat treatment Related
Slowly heated to 790-810 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. Different annealing ways will get different hardness.The 20CrMnTi Gearing steel will get Hardness MAX 248 HB (Brinell hardness).
Heated slowly to 788°C, Then put in salt-bath furnace keep 1191 ℃to 1204 ℃.quenching by oil get 60 to 66 HRc hardness. High temperature tempering: 650-700℃,cool in air, get hardness 22 to 30HRC. Low temperature tempering: 150-200 ℃, Cool in ari, get 61-66HRC hardness.
GB 20CrMnTi steel can hot worked at 205 to 538°C, 20CrMnTi Bearing/Gearing steel can be cold worked using conventional techniques in the annealed or normalized conditions.
Mechanical Properties
The mechanical properties of annealed GB 20CrMnTi Gearing steel (typical for steel) are outlined in the table below:
| Tensile | Yield | Bulk modulus | Shear modulus | Poisson’s ratio | Thermal conductivity | |
| MPa | Mpa | Gpa | Gpa | W/mK | ||
| 520 | 415 Min | 140 | 80 | 0.27-0.30 | 46.6 |
Applications
20CrMnTi steel is widely used for a variety of applications in the used to the bearing/Gearings in rotating machinery. Typical applications such as valve bodies, pumps and fittings, the high load of wheel, bolts, double-headed bolts, gears, internal combustion engine. Electric locomotives, machine tools, tractors, steel rolling equipment, boring machine, railway vehicle, and mining machinery transmission shaft on the steel ball, roller and shaft sleeve, etc. 20crmnti steel properties as below:
Regular size and Tolerance
| 1) Hot Rolled round bar | |||
| Diameter (mm) |
Diameter Tolerance (mm) |
Diameter (mm) |
Diameter Tolerance (mm) |
| ≤12.70 | -0.13 ～0.30 | >50.80～63.5 | -0.25～0.76 |
| 12.7～25.40 | -0.13～0.41 | >63.50～76.20 | -0.25～1.02 |
| >25.4～38.10 | -0.15～0.51 | >76.20～101.60 | -0.30～+1.27 |
| >38.1～50.80 | -0.20～0.64 | >101.60～203.20 | -0.38～3.81 |
| 2) Hot Rolled steel plate | |||
| Thickness (mm) |
Thickness Tolerance (mm) |
Thickness (mm) |
Thickness Tolerance (mm) |
| ≤25.4 | -0.41～0.79 | >127～152 | -1.60～2.39 |
| >25.4～76 | -0.79～1.19 | >178～254 | -1.98～3.18 |
| >76～127 | -1.19～1.60 | >254～305 | -2.39～3.96 |
Others 20CrMnTi have not specified size, pls contact our experienced sales team.
20CrMnTi Gearing Steel round bar and flat sections can be cut to your required sizes. 20CrMnTi bearing/Gearing steel ground bar can also be supplied, proviGBg a high quality tool steel precision ground tool steel bar to your required tolerances. GB 20CrMnTi steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
Contact our experienced sales team to help you with your 20CrMnTi Gearing Steel questionsadn enquiry by Email or Telphone. The questions will be reply in 24 hours
Q:What is your competitive advantage ?
A: We have many professional technical personnel.And we have more competitive prices and better after-sales service .
Q:How do you control the quality?
A:Our company is certificated to ISO9001:2008.We have many inspectors and every product will have been tested for 4-5 processes.
We welcome customers or the third party inspection agencies to come to our factory for inspection.
Q:What about your price?
A:Our price is very competitive because we are a factory.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 5-10 days after we receive your deposit.
Q:Do you have a published price list?
A:We do NOT have a published price list. In our business market, conditions are always fluctuating, which makes standard pricing difficult to maintain. We allow our sales staff to be flexible when it comes to quoting on your requirements, which means that you will receive the best price available when you need it.
