Product Details:
|
Material: | 201 304 304L 309S 310S 321 316L 2205 904L.etc | Size: | 4#-20# |
---|---|---|---|
Length: | 6m Or As Required | Type: | Hot Rolled |
Company Type: | Storage And Factory | Certificate: | SGS,BV |
High Light: | equal angle bar,cold drawn steel bar |
Quick Detail

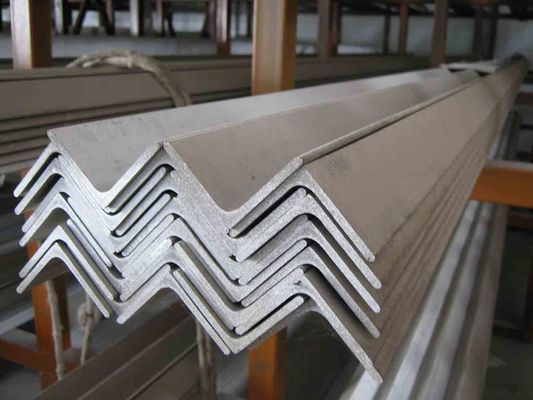

structure used tsianless steel angle bar 304 310S 321 / SS angle bars
stainless steel angle bar
name | stainless steel angle bar | material | 201 304 304L 309S 310S 316L 321 2205 |
size | 4#-15# | length | 6m or as required |
Type | hot rolled | Certificate | SGS/BV |
We are the sale agent of our factory. we can supply stainless steel angle bars(equal type and un-equal type) ,we can also produce large size stainless steel welded angle bars/channel bars .etc
Description
About our stainless steel angle bars
Standard |
JIS, AISI, ASTM, GB, DIN, EN |
Type |
Both equal side and unequal side |
Surface |
Pickling, Sand blasting |
dimmensions |
25mmx25mmx3mm-100mmx100mmx10 mm |
Tech |
hot rolled ,cold drawn |
Length |
As your request |
Delivery |
5-30days after the deposit |
Package |
According to the quantity and your requirement, but we can provide any package you need. |
Grade |
201,202,304,304L,309S,310S, 316L,316Ti,317L,321,347H, 409,409L, 410,420,430,etc |
Brand |
TISCO,etc |
Characteristics and application
Stainless steel Angle according to the stress of the structure of the different needs of various components, also can make members between the joints. Widely used in various building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ships, industrial furnace, reaction tower, container frame and warehouse shelves, etc.
Grade |
Chemical Composition (%) |
|||||||
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
201 |
≤0.15 |
≤1.00 |
5.5~7.5 |
≤0.060 |
≤0.030 |
3.50~5.50 |
16.00~18.00 |
|
301 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
6.00~8.00 |
16.00~18.00 |
|
302 |
≤0.15 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.00 |
17.00~19.00 |
|
304 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
8.00~10.50 |
18.00~20.00 |
- |
304L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
9.00~13.50 |
18.00~20.00 |
- |
316 |
≤0.045 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
316L |
≤0.030 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
Competitive Advantage
