Product Details:
|
| Name: | Stainless Steel Square Pipe | Type: | Welded |
|---|---|---|---|
| Material: | 201 304 316L | Length: | 6000mm |
| Thickness: | 0.3-3.0mm | Od Size: | 10x10-200x200 |
| High Light: | stainless steel pipe astm,stainless steel welded tube |
||
Quick Detail:

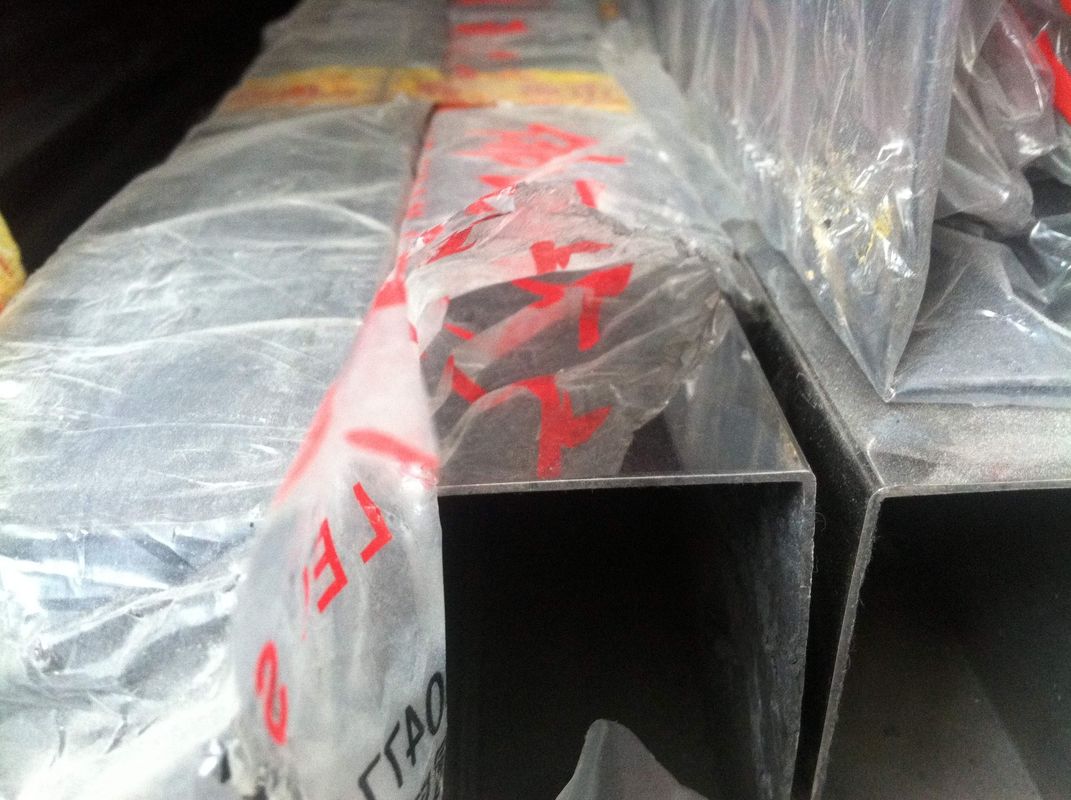

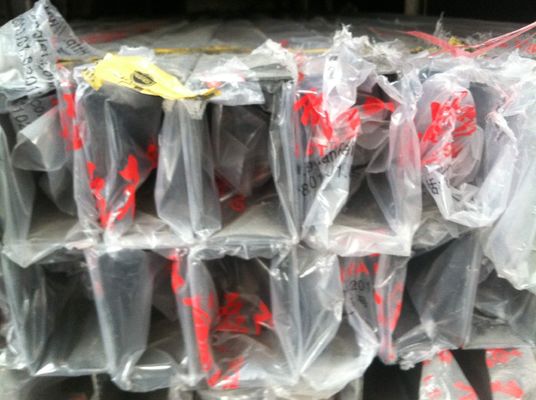

stainless steel square pipe
| name | stainless steel square pipe | size | 10-100mm |
| wall thickness | 0.3-3.0mm | length | 6000mm |
| surface | polished | grade | 201 301 316L |
we have factory in foshan, where the largest stainless steel welded pipe center in China. we are salepart and exportagent of our factory in wuxi city.
we can produce any size of stainless steel welded pipe as customer required
Description:
stainless steel square pipe
|
1. Commodity: |
Astm 201 stainless steel square tube Rectangular pipe/ Square pipe/Round pipe/ Special section pipe |
|
2. Side Length: |
10mm*10mm-1200mm*1200mm |
|
3. Thickness: |
0.6mm-60mm |
|
4. Length: |
4-12meter/pc |
|
5. Producing Standard: |
ASTM A500,JG 178-2005,JIS G3466,EN10210 |
|
6. Main Material: |
ASTM A53,ASTM A106 ASTM A210,ASTM A283,ST33, ST37-2,ST52, DIN1626,DIN1629,STPY41,G3452,G3457, S235,S355, Q195-Q235,Q345,20#, alloy steel etc |
|
7. Technology: |
Seamless; Or With seam |
|
8. Surface treatment: |
Paint oil; Varnish; Hot galvanized; Cold galvanized; |
|
9. Package: |
Tied with steel trips, then wrapped by plastic material. |
|
10. Usage: |
Widely used in mechanical manufacture, construction field, metallurgy industry, farm vehicles, agriculture greenhouse, automotive industry, railway, highway guardrail, container frame, furniture, decoration, steel structure etc |
|
11. Certificate: |
ISO9001-2000, ISO14000, ISO18000 |
|
12. Third party inspection: |
Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products. |
Applications
stainless steel tubes have: acid-proof, alkali resistance, high density without pinhole, is the production of watch case, strap bottom cover high quality materials. 201 stainless steel tube key can be used in writing as a decorative tube, industrial pipe, some products used in shallow drawing.
Specifications
|
Material Grade |
201 ( Ni 0.8%), |
|||||
|
Outer Diameter |
8mm-250mm or as your requirement |
|||||
|
Thickness |
0.15mm - 30mm or as your requirement |
|||||
|
Length |
2.5m-- 8m or as customers' request |
|||||
|
|
a) Outer Diameter:+/- 0.2mm |
|||||
|
b) Thickness: +/- 0.02mm |
||||||
|
c) Length: +/- 5mm |
||||||
|
Surface |
180G, 320G, 400G Satin / Hairline |
|||||
|
|
Material |
201 |
202 |
304 |
316 |
430 |
|
C |
≤0.15 |
≤0.15 |
≤0.08 |
≤0.08 |
≤0.12 |
|
|
Si |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
|
|
Mn |
5.5-7.5 |
7.5-10 |
≤2.00 |
≤2.00 |
≤1.00 |
|
|
P |
≤0.06 |
≤0.06 |
≤0.045 |
≤0.045 |
≤0.040 |
|
|
S |
≤0.03 |
≤0.03 |
≤0.030 |
≤0.030 |
≤0.030 |
|
|
Cr |
16-18 |
17-19 |
18-20 |
16-18 |
16-18 |
|
|
N |
3.5-5.5 |
4-6 |
8-10.5 |
10-14 |
|
|
|
Mo |
|
|
|
2.0-3.0 |
|
|
|
|
Material Item |
201 |
202 |
304 |
316 |
|
|
Tensile Strength |
≥535 |
≥520 |
≥520 |
≥520 |
||
|
Yield Strength |
≥245 |
≥205 |
≥205 |
≥205 |
||
|
Extension |
≥30% |
≥30% |
≥35% |
≥35% |
||
|
Hardness (HV) |
<253 |
<253 |
<200 |
<200 |
||
|
Delivery time |
A. 7 days if this goods is stock goods. |
|||||
