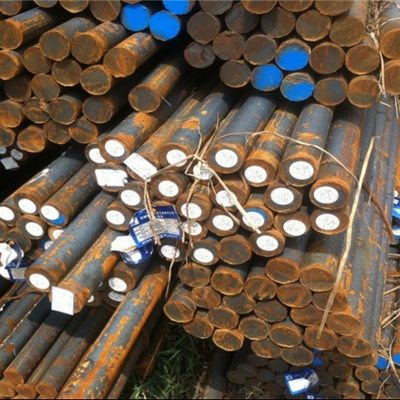

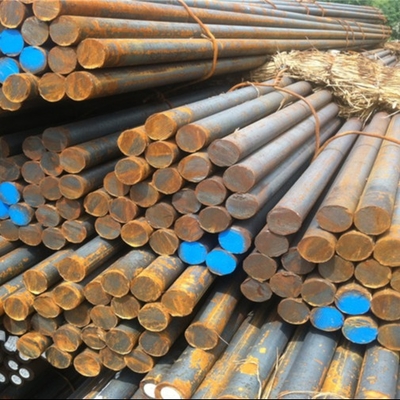

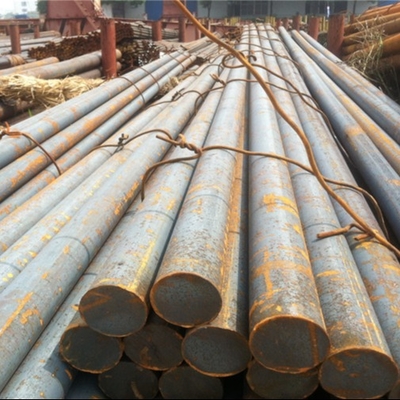

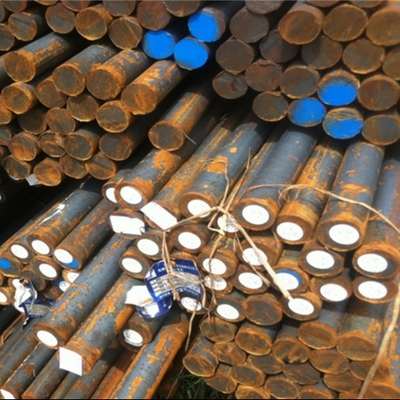

Hot Rolled Carbon Steel Round Bar Grade SAE 1045 S45C 45# Mild Steel Rod OD 120MM
| TYPE |
SIZE |
| steel round bar / rod |
Diameter:0.1-900mm |
| steel angle bar / rod |
3mm x 25mm x 25mm - 24mm x 200mm x 200mm |
| steel flat bar / rod |
Thickness:0.1-100mm Width:10-600mm |
| steel square bar / rod |
4mm x 4mm - 100mm x 100mm |
| steel hex bar / rod |
Diameter:0.1-900mm |
hot rolled round bar grade SAE 1045
grade :SAE 1020;SAE 1045
OD: 8-200mm
Length:6m
Description:
hot rolled round bar grade SAE 1045
grade :SAE 1020;SAE 1045
OD: 8-200mm
Length:6m
S45C/1045/C45/45 carbon steel bar
Grades Comparison:
|
Chinese
|
American
|
German
|
Japanese
|
|
GB
|
AISI
|
DIN
|
JIS
|
|
45#
|
1045
|
1.1191
|
S45C
|
Chemical analysis:
|
Grade
|
C%
|
Mn%
|
Si%
|
P
|
S
|
|
S45C
|
0.42~0.48
|
0.6~0.9
|
0.15~0.35
|
≤0.030
|
≤0.030
|
Size tolerances:
|
Dia(mm)
|
16-20
|
20-30
|
30-50
|
50-80
|
80-110
|
110-150
|
150-190
|
190-250
|
|
(mm)
|
+0.35
-0.35
|
+0.40
-0.40
|
+0.50
-0.50
|
+0.70
-0.70
|
+1.0
-1.0
|
+1.3
-1.3
|
+2.0
-2.0
|
+2.5
-2.5
|
Main Application:
(1) As machining, forging material for automobile, machinery for farming,mining, railway transportation,oil field,etc.
(2): Can be made into mould template, mortise pin, column
(3): This kind of steel have good mechanical property, is widely used in structural parts
which may support stress alternation, especially made into some connecting rods, bolts, wheel gear...
(4): This kind of steel is the most common blanks and materials of shaft parts.
Competitive Advantage:
1,good price
2,best quality
3.fast delivery time
FAQ
1. Who are we?
Our headquarter is located in Wuxi , China. Since 2012, we have sold to North America (60.00%), Western Europe (14.00%) and South America (6.00%). There are about 11-50 people in our office.
2. How do we guarantee quality?
Always provide pre-production samples before mass production;
Always carry out final inspection before shipment;
3. What can you buy from us?
Copper, aluminum, die steel, titanium, customized machine parts
4. Why should you buy from us instead of other suppliers?
The company has 25 years of production experience. It has advanced precision production equipment, modern large warehouse, 200000 tons of inventory goods and a number of long-term stable cooperative customers.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW
Accepted payment currency: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, RMB, Swiss franc;
Accepted payment type: T/T, L/C, D/P D/A, PayPal;
Optional ports: Tianjin, Shanghai, Guangzhou;
Spoken: English, Chinese
6. How can we get your price?
A. We need the following information to quote for you:
1). Product Name
2). standard
3). Material grade (chemical composition)
4). dimension
5). amount
6). Special part drawin
