Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding

Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding
Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding
Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding

Large Image :  Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding

Product Details:
Place of Origin: China
Brand Name: Mittel
Certification: SGS ISO MTC
Model Number: 1J85
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 55 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding

Description
TypeRound: Coil Strip Application: Construction,decoration,Industry,Mechineal,shipbuilding
Standard: DIN,AISI Certification: ISO,BV
Surface: Bright,Polished Technique: Cold Rolled Hot Rolled
Length: Customers' Requirements Packing: Standard Seaworthy Package
Price Term: CIF CFR FOB Ex-Work
High Light:

Permalloy Ribbon Stainless Steel Coils

,

Stainless Steel Coils For Magnetic Shielding

,

Soft Magnetic Stainless Steel Coils

1. Description

Soft Magnetic Alloy is one kind of alloy with high permeability and low coercivity in weak magnetic field. This kind of alloy is widely used in radio electronics industry, precision instruments, remote control and automatic control system, generally, it is mainly used in energy conversion and information processing.

alloy nickel alloy metal alloy iron nickel alloy

1J85 soft magnetic alloy



Grade Chemical composition
1J85 C P S Mn Si Ni Mo Cu Fe
  max0.03 max0.02 max0.02 0.3~0.6 0.15~0.30 79.0~81.0 4.8~5.2 max0.2 balance



The alloy has the following features:

High saturation magnetic induction 1 j85 soft magnetic iron nickel alloy is 79-81% of the nickel alloy has the highest initial permeability as well as the maximum magnetic permeability and extremely low coercive force, sensitive response to weak signal. 1 j85 saturated magnetic induction intensity is greater than 0.78 T, initial permeability is greater than 30 mh/m, magnetic permeability is greater than 115 largest mh/m, coercive force is less than 2.4 A/m 1 j85 metallographic structure: Of 1 j85 alloy austenitic organization 1 j85 application scope of application areas are: 1. Used for dc relay, communication and electronic equipment transformer, choke pressure in the core layer 2. The magnetic shielding equipment, parts or control components



Product Sales Information:

Material



1J85 structural alloy steel
Size

Diameter:20mm-1000mm

Length:500mm-6000mm

Origin place Made In China
Delivery Condition Hot rolled,cold drawn,forged
Surface require Black,grinding,bright,polish
Heat treatment Quenched,Tempered,annealed
Packing seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time In 10-50 days
Trade Term EXW,FOB,CIF
Payments T/T or L/C at sight
Port China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ 1 Ton





Company Main Products:



Alloy Steel 5140,5115,5120,5130,5145,4118,4130,4135,6150,5115
Tool Steel

H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,

SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2

Bearing Steel GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel

9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,

SUP10,51CrV4,1.8159

Stainless Steel

321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,

434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,





1J85 Mu-metal Strip High Initial Permeability Low Coercive Force



As a professional high-performance alloys supplier in China, A-one Alloy has very rich experience of supplying 1J85 soft magnetic alloy in forms of strip, wire, round bar and so on. Our customers are from worldwide and they trust us after the cooperation for years.



1J85 has high initial permeability and high saturation permeability and low coercive force in low-intensity magnetic field.



1J85 is generally used in alternating magnetic field. Because alternating magnetization is the eddy current loss inside the material, the smaller the resistivity, the greater the thickness, and the higher the frequency in alternating magnetic field, the greater the eddy current loss and the lower the magnetic properties. Therefore, the material must be made into thin sheets (ribbons), and coated on the surface of the insulation layer, or the use of a certain method to form a surface oxide insulation layer. Usually 1J85 uses Magnesium Oxide electrophoretic coating.



The alloy has low resistivity and is not easy to use at high frequency.



The magnetism of 1J85 is very sensitive to internal stress and impurities. Formed components must be annealed in protective atmosphere or vacuum to purify the material, eliminate internal stress and improve magnetic properties. After heat treatment, the components will be used to avoid vibration, extrusion, impact and so on.



Density: 8.75g/cm3



Curie point: 400 degrees C



Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

 Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;

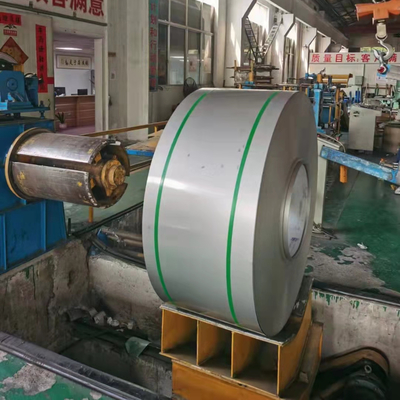

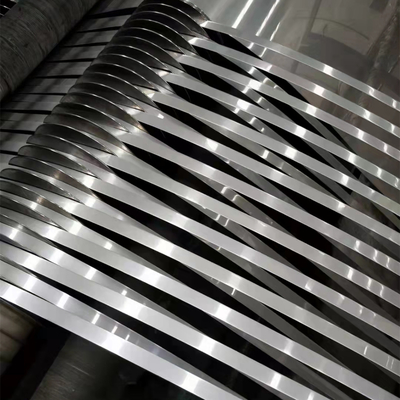

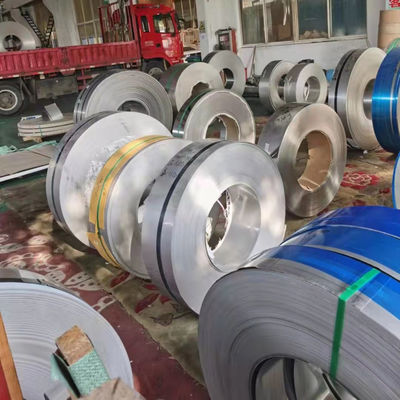

Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding 0Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding 1Soft Magnetic Stainless Steel Coils Permalloy Ribbon For Magnetic Shielding 2
