Product Details:
|
| Products: | Stainless Steel Hexagonal Bar | Grade: | 201 304 316l 410 420 431 630.etc |
|---|---|---|---|
| Diameter: | S4 - S70 | Length: | 4 - 6m As Request |
| Surface: | Bright | Process: | Cold Drawn |
| Service: | Cutting | MOQ: | 500 Kgs |
| Loading Port: | Shanghai , China | Other Shape: | Round , Square , Angle , Channel , Flat.etc |
| High Light: | 303 stainless steel hex bar stock,6m steel hex bar stock,Bright surface ss hex bar |
||

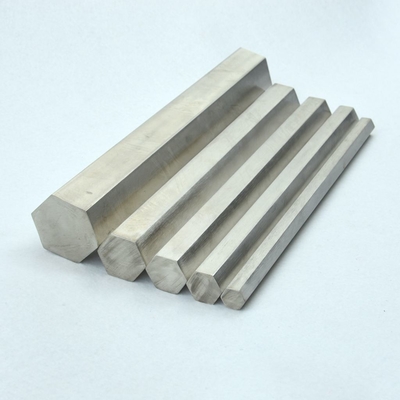

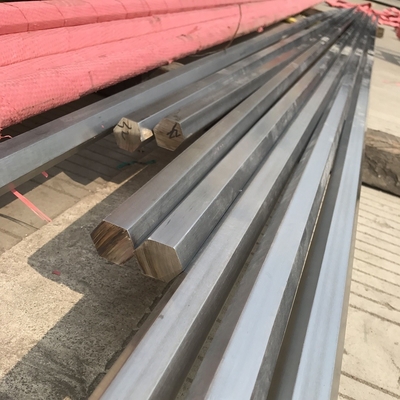

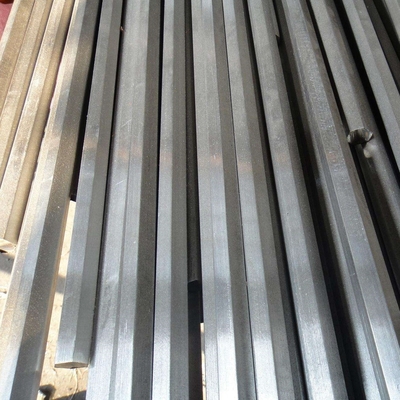

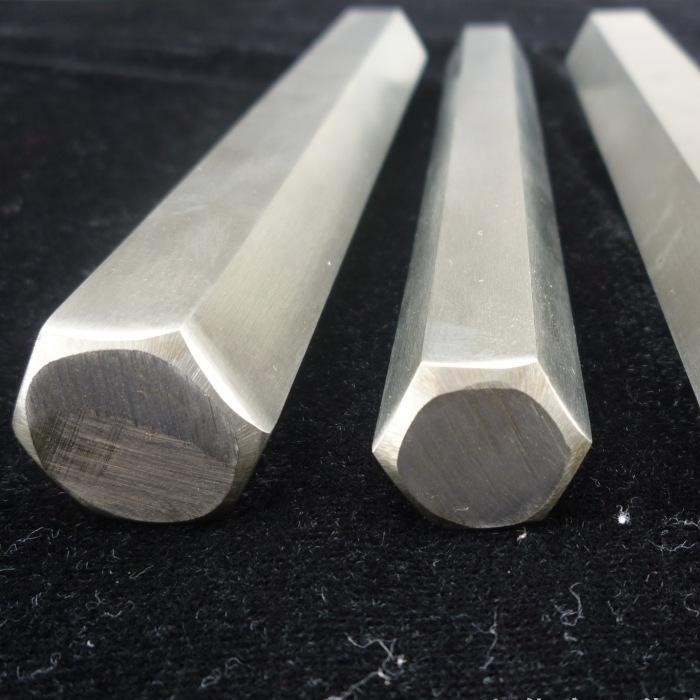

303 Stainless Steel Hexagonal Bar / 303 Stainless Steel Hex Bar S4 -S65 Customs Length as Request
Product Description:
| Product Name | stainless steel hexagon bar |
| Standard | JIS, AISI, ASTM, GB, DIN |
| Size | Diameter : S6-S65mm or as request |
| Length | Normal long 4M, Or as your request |
| Surface | Bright ,hairline finsh |
| Technics | cold drawn and polishing |
| Application | construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields ,etc. |
| Packing | Export standard or as customers' requirement |
| Delivery time | Within 15 working days, according to customers' quantities |
| Payment | L/C or T/T |
| MQQ | 1 Ton |
| Quality | High Quality.SGS inspection is accepted if needed |
| Productivity | 500 Tons/Month |
| Attention | We will supply you good quality and bottom price and first-class service in china and hope to be your golden supplier |
Alloy 303 is a non-magnetic, austenitic stainless steel that is not hardenable by heat treatment. It is the free machining modification of the basic 18% chromium / 8% nickel stainless steel. Alloy 303 was specially designed to exhibit improved machinability while maintaining good mechanical and corrosion resistant properties Due to the presence of sulfur in the steel composition, Alloy 303 is the most readily machineable austenitic stainless steel; however, the sulfur addition does lower Alloy 303’s corrosion resistance to below that of Alloy 304. Like other austenitic grades, Alloy 303 demonstrates excellent toughness, although the sulfur does reduce this a little as well.
Alloy 303 is frequently used in applications that require parts to be heavily machined. Some examples include:
ASTM/ASME ……………. UNS S30300
EURONORM ……………. FeMi35Cr20Cu4Mo2
DIN ………………………… 2.4660
Chemical Properties:
| % | Cr | Ni | C | Si | Mn | P | S | Mo | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 303 | min: 17.0 max:19.0 |
min: 8.0 max: 10.0 |
0.15 max |
1.00 max |
2.0 max |
0.20 max |
0.15 min | 0.75 | balance |
Mechanical Properties:
| Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 303 | 75 | 30 | 35 | 228 |
Products Show
