S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness

S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness

Large Image :  S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness

Product Details:
Place of Origin: China
Brand Name: BAOSTEEL BENSTEEL HBIS
Certification: SGS,BV,ISO
Model Number: S350GD galvanized steel coil
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Price: 600 - 1000 USD/Ton
Packaging Details: Standard export packing or as per customer’s request.
Delivery Time: 5 days
Payment Terms: L/C, T/T,Western Union
Supply Ability: 3000 TON per month

S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness

Description
Products: S350GD Galvanized Steel Coil Zinc Coating: Z60-275 G/m2
Coil ID: 508mm / 610mm Type: Coil / Strips
Technique: Hot Dipped Galvanized Surface: Regular Spangle / Zero Spangle
Width: 1000mm 1250mm 1500mm Service: Slit Cutting
Coil Weight: 5 - 10 Tons Loading Port: Shanghai, China
High Light:

slit cutting z275 galvanized steel coil

,

S350GD z275 galvanized steel coil

,

3.0mm regular spangle galvanized steel coil

EN 10346  S350GD +Z275 Galvanized Steel Coil / High Strength Galvanized Steel Coil 0.3 - 3.0mm Thickness

Commodity S350GD Galvanized Steel Coils
Standard JISG3302 /EN10346/ASTMA653
Thickness 0.4-3.0mm
Width 600-1250mm
Zinc Coating Z30-275g/M2
Coil ID 508/ 610mm
Coil Weight Within 8MT
Min Order 5 Tons Per Size
Spangle Regular , Zero Spangle
Surface Chromated,Skin-Passed,Non Skinpassed
Payment Terms T/T Or L/C
Delivery Terms FOB/CFR/CIF
Delivery Time 5 - 12 Days After Received The Deposit Or As Client Requirement
Packing Standard Seaworthy Export Packing

About S350GD Galvanized Steel Coil

S350gd is a grade in the European standard “EN 10346-2009 Continuous Hot-Dip Galvanized Steel Sheet Products”, which is a galvanized steel sheet. S350G is structural steel requiring tensile strength greater than 350MPa, D means galvanized sheet, so s350gd is structural galvanized sheet with yield strength greater than 350MPa

The S350G is available in the following hot dip coatings: S350GD+Z (galvanized), S350GD+ZF (galvanized-iron), S350GD+ZA (galvanized-aluminum), S350GD+AZ (aluminum-zinc), S350GD+AS (galvanized-iron) aluminum silicon).

Features of S350GD Galvanized Steel Coil

S350GD galvanized sheet (coil) has the characteristics of strong coating adhesion, strong erosion resistance, precise control of galvanized layer thickness, high dimensional accuracy, flat profile, good mechanical properties, processing performance and welding performance. They can be used to manufacture interior and exterior panels, structural parts and reinforcements for automobiles.

Percent Chemical Composition Of Steel S350GD: EN 10346-2009

C Si Mn P S
max 0.2 max 0.6 max 1.7 max 0.1 max 0.045

Mechanical Properties Of Steel S350GD (1.0529)

Rm - Tensile strength (MPa) 420
Rp0.2 0.2% proof strength (MPa) 350
A - Min. elongation Lo = 80 mm (%) 16

Equivalent Grade For Steel S350GD (1.0529)

EU European old
EN EN
S350GD FeE350G

Application Industry

Prefabricated steel buildings, industrial and commercial roofing and cladding, agricultural buildings, building accessories, light steel frames, building pipes

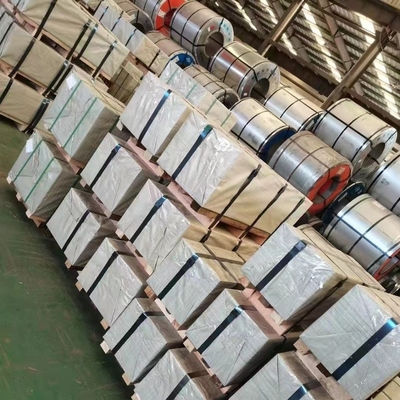

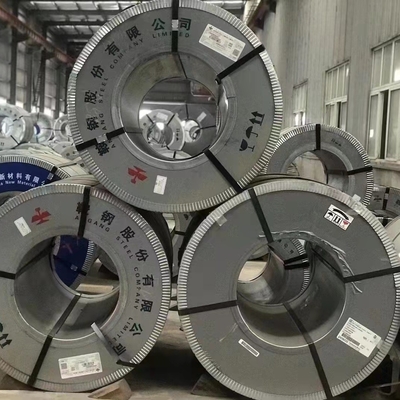

Products Show



S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness 0S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness 1S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness 2S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness 3
