Product Details:
|
Products: | Galvanized Steel Coil | Zinc Coating: | Z40-275 G/m2 |
---|---|---|---|
Coil ID: | 508mm / 610mm | Type: | Coil / Strips |
Technique: | Hot Dipped Galvanized | Surface: | Regular Spangle / Zero Spangle |
Width: | 1000mm 1250mm 1500mm | Service: | Slit Cutting |
Coil Weight: | 5 - 10 Tons | Loading Port: | Shanghai, China |
High Light: | EN 10346 hot dipped galvanized steel sheet,DX53D hot dipped galvanized steel sheet,Z40 galvanized steel plain sheet |
PRODUCTS SPECIFICAT
Product name | Galvanized Steel Coil |
Material | ASTM A653, DX51D,DX52D DX53D DX54D SGCC |
Zinc Coating | 40-275g/m2 |
Thickness | 0.2 - 3.0mm |
Width | 600-1500 mm |
Coil ID | 508/610mm |
Coil weight | 3-8 tons |
Surface Structure | Mini/Big Spangle / Zero Spangle |
Surface Treatment | Anti-Finger printing ,Chromated, oiled/ non-oiled |

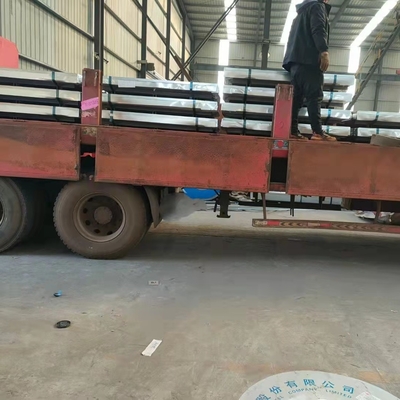

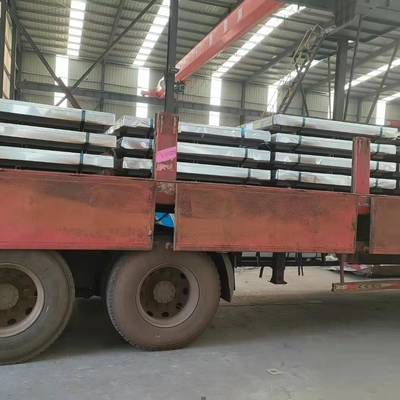

Package | standard export package (Detailed picture is as follows) |
Hardness | soft (normal), hard, full hard(G300-G550) |
HS code | 721049 |
Country of origin | China |
Business type | Supplier and manufacturer |
Low carbon steel for cold forming (DX51D – DX54D)
Structural Steels (S220GD – S350GD)
S220GD,S250GD,S280GD,S320GD,S350GD
Use structural steel for high load-bearing capacity, with a yield strength of 220-350
Grade | Euronorm | China GB | Japanese JIS | US ASTM | ||
EN 10346:2009 | GBT 2518-2008 | JIS:G3302-2005 | ASTM A653M | |||
DX53D+Z | DX53D+Z | DX53D+Z | SGCD2 | FS TypeA FS TypeB |
Thickness | 0.12~2.5mm | ||||||
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc | ||||||
Length | 1000-6000 or Since the custom | ||||||
Surface | Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles | ||||||
Finish | |||||||
Form | Coils, Foils, Rolls, Plain coil, Shim coil, Perforated coil, Chequered coil, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Grade | Element | C | Si | Mn | P | S | Ti |
DX53D+Z | Min. |
- | - | - | - | - | - |
Max. |
0.12 | 0.5 | 0.6 | 0.12 | 0.045 | 0.3 |
