AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm

Certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm

AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm
AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm

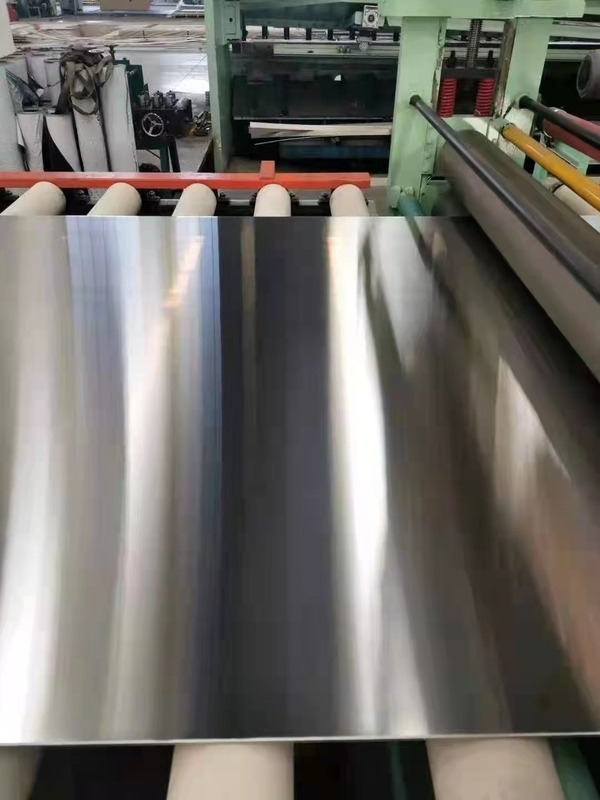

Large Image :  AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm

Product Details:
Place of Origin: CHINA
Brand Name: TISCO
Certification: ISO 9001
Model Number: 434
Payment & Shipping Terms:
Minimum Order Quantity: 500 KGS
Price: 1800 USD/Ton
Packaging Details: standard packing for seaworthy
Delivery Time: 5 - 10 days
Payment Terms: T/T, Western Union
Supply Ability: 50 Ton/month

AISI 434 ASTM A240 Stainless Steel Plate 2B Finish 1219x2438mm 3mm

Description
Products: Stainless Steel Sheet Grade: AISI 434
Standard: ASTM A240 Thickness: 0.4 - 3.0mm
Size: 1219*2438mm 1000*2000mm Service: Cutting
Other Grade: 201 202 304 309S 310S 316L 321 410 420 430 436 439 441.etc Surface: 2B BA NO.4 8K
High Light:

AISI 434 stainless steel plate 2b finish

,

ASTM A240 stainless steel plate 2b finish

,

1219x2438mm 3mm stainless steel sheet

443 Stainless Steel Sheet

443 stainless steel sheet  is a kind of super ferritic stainless steel with high mechanical properties and corrosion resistance. It is now generally used to replace 304, and its rust resistance and processing performance are equivalent to 304. At present, it is fully promoted in the fields of electrical appliances, utensils, kitchen equipment, elevators, oven production and other fields. 443 stainless steel improves corrosion resistance by increasing Cr, reducing C, and adding Ti. The pitting corrosion resistance is improved. Ti element preferentially forms C compounds, which inhibits the enrichment of C in the grain boundary of stainless steel under heated conditions, improves the thermal service life of stainless steel, and improves the intergranular corrosion resistance of stainless steel and the heat stability.



AISI 434 Stainless Steel Sheet ASTM A240 434 Stainless Steel 0.4 - 3.0mm SS Sheet



Products 434 stainless steel sheet Thickness 0.4 - 3.0mm
Surface 2B Size 1219*2438mm  1000*2000mm
Brand TISCO Same grade 1.4113





AISI 434 stainless steel is a ferritic stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. 434 is the AISI designation for this material. S43400 is the UNS number. Additionally, the British Standard (BS) designation is 434S19.

The graph bars on the material properties cards below compare AISI 434 stainless steel to: wrought ferritic stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.



chemical composition of grade 434 stainless steel.



Element C Si Mn P S Cr Mo
% 0.12 1 1 0.04 0.03 16 1



Stainless steel SUS434 equal material :
434,AISI 434,S43400,X6CrMo17-1,material 1.4113, 1Cr17Mo, W.Nr. 434

1.SUS434 stainless steel main description:
SUS434 is a ferritic stainless steel.SUS434 stainless steel containing 12% ~ 30% chromium.Its corrosion resistance, toughness and weldability with chromium content increases with the increase of chloride stress corrosion resistance is superior to other types of stainless steel.



AISI434 Stainless steel mechanical property:
Ensile strength of sigma b (MPa) : p. 450
Conditions to yield strength sigma (0.2 MPa) : p. 205
Elongation delta (%) : p. 22
Reduction of area bits (%) : 60 or higher
Hardness: 183 hb or less

Forging

Grade 434 stainless steel can be forged at 1094 -1149°C (2000-2100°F) after thorough soaking.

Annealing

Grade 434 stainless steel is annealed by soaking at 788 - 872°C (1450-1600°F) followed by cooling in air.

Hardening

Grade 434 stainless steel does not react to heat treatment.

Applications

Grade 434 stainless steel is used in automotive trim applications and other exterior environments.
