S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm

S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm
S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm

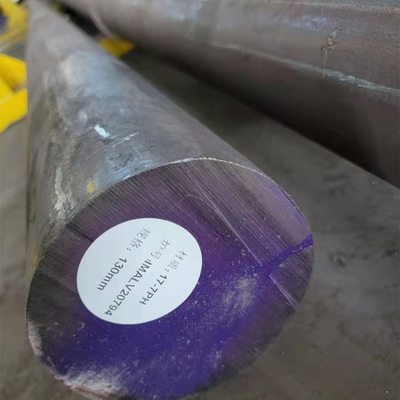

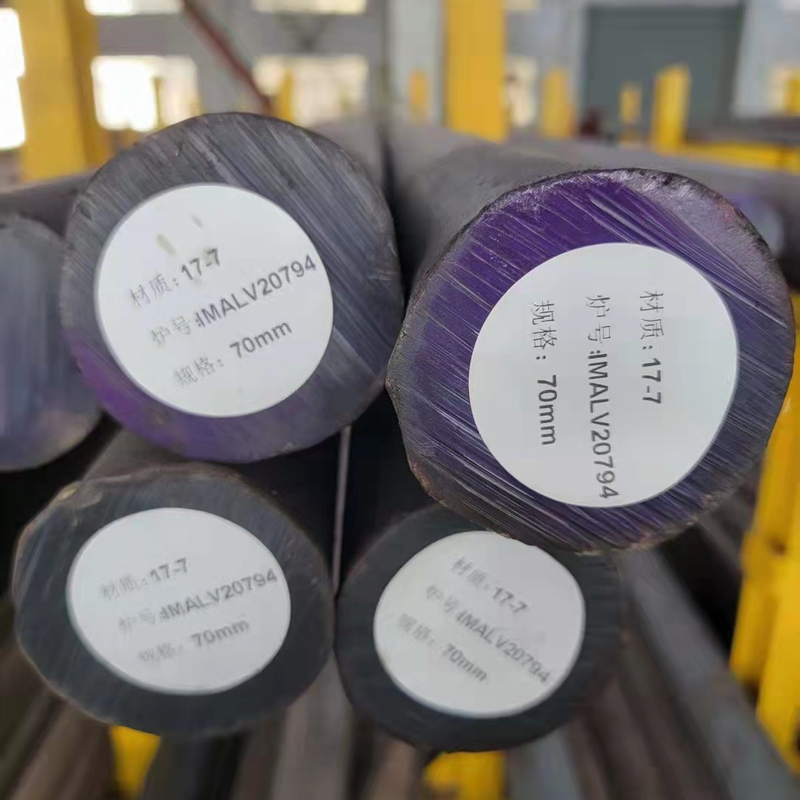

Large Image :  S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm

Product Details:
Place of Origin: Jiangsu,China
Brand Name: MITTEL
Certification: ISO/NV/SGS
Model Number: 631 17-7PH
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: USD2300-5000per ton
Packaging Details: Standard seaworthy packaging / as per buyer’s request
Delivery Time: within 10days after received the payment
Payment Terms: L/C, T/T, Western Union

S17700 17-7 PH AISI 631 Stainless Steel Round Bar Stock 260mm

Description
Standard: ASTM, AISI, DIN, EN, GB, JIS Dimensions: 3mm-500mm
Type: Round Special Use: Valve Steels
Length: Customers' Requirements Surface: Pickled Bright Polished Satin
High Light:

S17700 aisi 631 stainless steel round bar stock

,

17-7 PH aisi 631 stainless steel round bar stock

,

260mm astm stainless steel round bar

Stainless Steel PH 17-7 Material Round Bar Ø260 ASTM S17700 AISI631,SAE17-7PH Forge Rod



17-7 PH is a chromium-nickel-aluminum precipitation hardening stainless steel that provides high strength and hardness and a moderate level of corrosion resistance up to 600˚F. This grade can be easily formed in the austenitic condition similar to Type 301 stainless steel and hardened to high strength levels using relatively low heat treatments that minimize distortion. The corrosion resistance of 17-7 PH is comparable to that of Type 304 stainless steel, especially in the CH 900 temper, and it has been used for spring applications, washers, eyelets, fittings and fasteners.

Heat treatments can strengthen this type of stainless steel. The typical process for 17-7 PH heat treatment has three or four steps:

  • Conditioning using austenite.
  • Cooling, which turns the austenite into martensite.
  • Precipitation hardening until Condition TH 1050 or RH 950 has been reached.
  • To achieve the highest mechanical properties Condition A material is transformed to martensite at the mill by cold reduction to Condition C. After fabrication by the user, a single low-temperature heat treatment is preformed to achieve condition CH 900.
Chemical Composition

Element Content(%)
Chromium, Cr 16-18
Nickel, Ni 6.50 – 7.75
Manganese, Mn 1 max
Silicon, Si 1 max
Aluminum, Al 0.75 – 1.50
Carbon, C 0.09 max
Phosphorous, P 0.040 max
Sulfur, S 0.030 max
Iron, Fe balance

Physical Properties


Properties Metric Imperial
Density 7.80 g/cm3 0.282 lb/in3
Melting Range 1404-1440°C 2560-2625°F


Mechanical Properties

Properties Metric Imperial
Tensile Strength 1170 MPa 170000 psi
Yield Strength 965 MPa 14000 psi
Modulus of Elasticity 204 GPa 29600 ksi
Poisson’s Ratio 0.27-0.30 0.27-0.30
Elongation at Break 6% 6%
Hardness, Rockwell C 38 38
