S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm

Certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm

S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm
S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm

Large Image :  S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm

Product Details:
Place of Origin: China
Brand Name: BAO STEEL MITTEL TISCO
Certification: SGS ISO MTC
Model Number: S40975
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 1.85 USD/KG
Packaging Details: Wooden Pallet BOX
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm

Description
Application: Construction,Kitchenware,Decoration,chemical,Industry Width: 1000-2000mm
Type: Plate Standard: ASTM
Length: 1000-6000mm Or Customer's Requirement Grade: 400 Series
Product Name: ASTM JIS SUS 201 202 301 304 304l 316 316l 310Stainless Steel Sheet Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Thickness: 0.2-60mm Edge: Mill Edge/ Slitting Edge Stainless Steel
Technique: Cold Rolled Hot Rolled Price Term: CIF CFR FOB EX-WORK
High Light:

S40975 Stainless Steel Plates

,

409Ni Stainless Steel Plates

,

stainless steel sheet 10mm thick

ASTM A240 S40975 10.0*1250*6000mm 409Ni Stainless Steel Plate



409Ni stainless steel is a low chromium niobium stabilized ferritic stainless steel. The addition of nickel can improve corrosion resistance and toughness in welding conditions.Compared with 430 or 304 stainless steel it does not belong to corrosion resistance or high temperature oxidation resistance material, but it is more suitable for low  alloy corrosion resistance steel, low carbon steel and coated low carbon steel.When stainless steel 409Ni is exposed to harsh atmospheric conditions, dyeing may occur.409 Nickel alloys should only be used in aesthetically not as a primary requirement, such as in mildly corrosive conditions.The annealed 409Ni is malleable and does not hardento any significant extent during cold operation.





The 409Ni stainless steel is an ideal material for meters larger than 0.120 in. Its weldability and toughness is superior to that of the standard 409 model.The cost is relatively low.Transportation applications include automotive exhaust flanges, hopper bodies and discharge chutes, intermodal containers, trailers, bus frames, and dump truck bed liners.In conditions as slippery as those encountered in coal handling equipment, 409 nickel stainless steel is a more economical solution.Potential coal handling applications include chutes, hoppers, bunkers, flooring, perforated plates, sizing machines, flight conveyor grinders, vibrating screen plates, silo feeders, paddle mixers, screw feeders, fuel tank and dryer assemblies.Additional applications include noise suppression barriers, mud pipes, heat shields, cyclones, silos, belt scraper blades, screens and tanks.



Technical Data for 409Ni, UNS S40975 Stainless Steel:



Chemical Composition(%)
C -- Mn -- P -- S -- Si -- Cr -- Ni -- N -- Fe
0.03 -- 1 -- 0.04 -- 0.03 -- 1 -- 10.5-11.7 -- 0.50=1.0 -- 0.03 -- Rest



Mechanical Property
TENSILE STRENGTH(MPA) -- YIELD STRENGTH(MPA) -- ELONGATION(%)
415 -- 276 -- 20

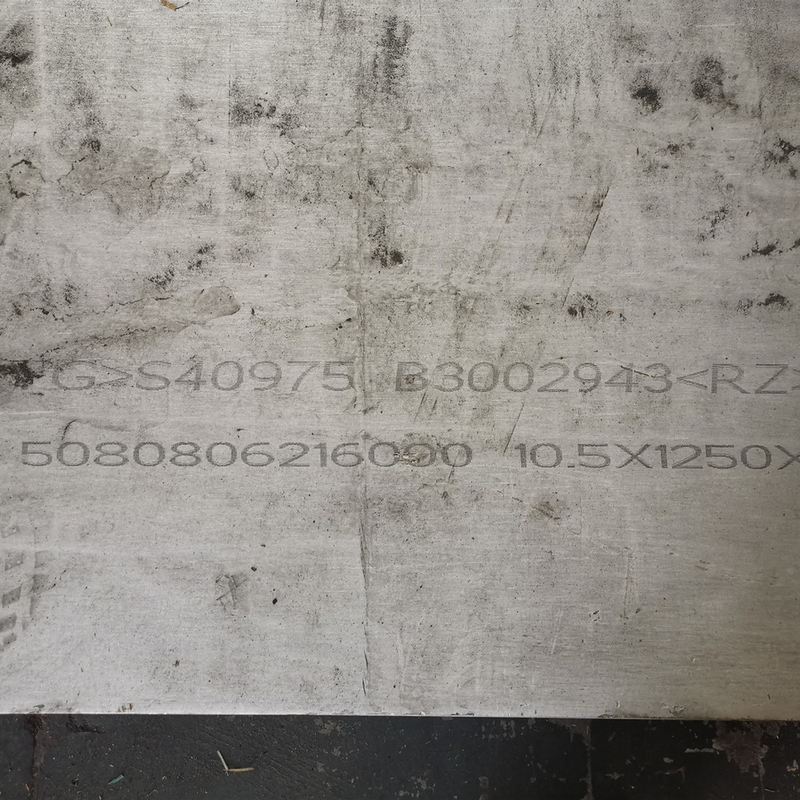

S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm 0

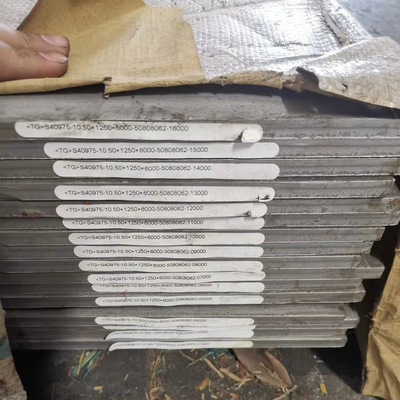

S40975 409Ni Stainless Steel Plates Sheet 10mm 1250mm 6000mm 1
