Product Details:
|
| Product Name: | Hot Rolled High Strength Galvanized Steel Angle | Material: | A36 S235JR |
|---|---|---|---|
| Equal Size: | 20mmX20mmx2mm-200mmX200mmX24mm | Surface Treatment: | Galvanized |
| Application: | Building Structures And Engineering Structures | Type: | Equal Or Unequal Angle Steel Bar |
| High Light: | 20*20mm galvanized steel angle bar,hot rolled galvanized steel angle bar,20*20mm galvanized angle bar |
||
galvanized steel angle bar hot dip wall angle bar slotted angle steel
Product: Hot Dip Galvanized Angle Bars ( A36 S235Jr S355Jr S355J2)
we can manufacture and supply structural steel angle bar, flat bar, I beam Bar, H beam bar, U Steel channel bar, material scope include A36, Q235B, Q235, S235JR S355J2, SS400, ST 37, Q345. We guarantee the quality and quantity with low price.
A36 Structural Steel Angle, is a hot rolled, mild steel angle shape with inside radius corners that is ideal for all structural applications, general fabrication and repairs. A36 Steel Angle is used in industrial maintenance, agricultural implements, transportation equipment, etc. A36 Steel Angle is also available in a galvanized coated finish.
O Specifications: ASTM A36
O AKA: HR steel angle, mild steel angle, steel L
O Applications: Frame work, braces, supports, cross members, etc.
O Workability: Easy to Weld, Cut, Form, and Machine
O Mechanical Properties: Brinell = 112, Tensile = 58-80, 000 +/-,
Yield = 36, 000 +/-
O How is it Measured? Leg (A) X Leg (B) X Thickness (C) X Length
O Available Stock Sizes: 2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Cut to Size
| IZES AND THEORETICAL WEIGHT OF UNEQUAL ANGLES | ||||
| SIZE | THEORETICAL WEIGHT(kg/m) | SIZE | WEIGHT(kg/m) | |
| STANDARD: JIS G 3192: 2005 | STANDARD: GB9788-88 | |||
| 100*75*6 | 8.04 | 100*80*6 | 8.35 | |
| 100*75*7 | 9.32 | 100*80*7 | 9.656 | |
| 100*75*8 | 10.6 | 100*80*8 | 10.946 | |
| 100*75*9 | 11.8 | 100*80*9 | 12.2 | |
| 100*75*10 | 13 | 100*80*10 | 13.476 | |
| 100*75*12 | 15.4 | 125*80*7 | 11.066 | |
| 125*75*7 | 10.7 | 125*80*8 | 12.551 | |
| 125*75*8 | 12.2 | 125*80*9 | 14.036 | |
| 125*75*9 | 13.55 | 125*80*10 | 15.474 | |
| 125*75*10 | 14.9 | 125*80*12 | 18.33 | |
| 125*75*12 | 17.8 | 160*100*10 | 19.872 | |
| 125*75*13 | 19.1 | 160*100*12 | 23.592 | |
| 150*90*8 | 14.7 | 160*100*14 | 27.247 | |
| 150*90*9 | 16.4 | 160*100*16 | 30.835 | |
| 150*90*10 | 18.2 | 180*110*10 | 22.273 | |
| 150*90*12 | 21.5 | 180*110*12 | 26.464 | |
| 150*90*15 | 26.6 | 180*110*14 | 30.589 | |
| 150*100*8 | 15.2 | 180*110*16 | 34.649 | |
| 150*100*9 | 17.1 | 200*125*12 | 29.761 | |
| 150*100*10 | 19 | 200*125*14 | 34.436 | |
| 150*100*12 | 22.4 | 200*125*16 | 39.045 | |
| 150*100*15 | 27.7 | 200*125*18 | 43.588 | |
| 150*100*16 | 29.5 | |||
| 180*90*10 | 20.5 | |||
| 200*100*10 | 23 | |||
| 200*100*12 | 27.3 | |||
| 200*100*14 | 31.6 | |||
| 200*100*15 | 33.75 | |||
| 200*100*16 | 35.9 | |||
Steel Angle Sizes High Quality Steel Angle Bar With Hole
|
Product Name
|
Angle Steel
|
|
Shape
|
Equal/Unequal
|
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS
|
|
Grade
|
Q235/Q345/SS400/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
|
|
Specification
|
20*20-200*200mm
|
|
Thickness
|
6-35mm
|
|
Length
|
6m, 9m, 12m or as customized
|
|
Surface treatment
|
Hot Dip Gavalnized / Black / Painted
|
|
Zinc coating
|
30-90um
|
|
Packing
|
In bundles
|
|
Delivery Time
|
10~20days
|
|
Payment Terms
|
L/C , T/T or Western Union
|

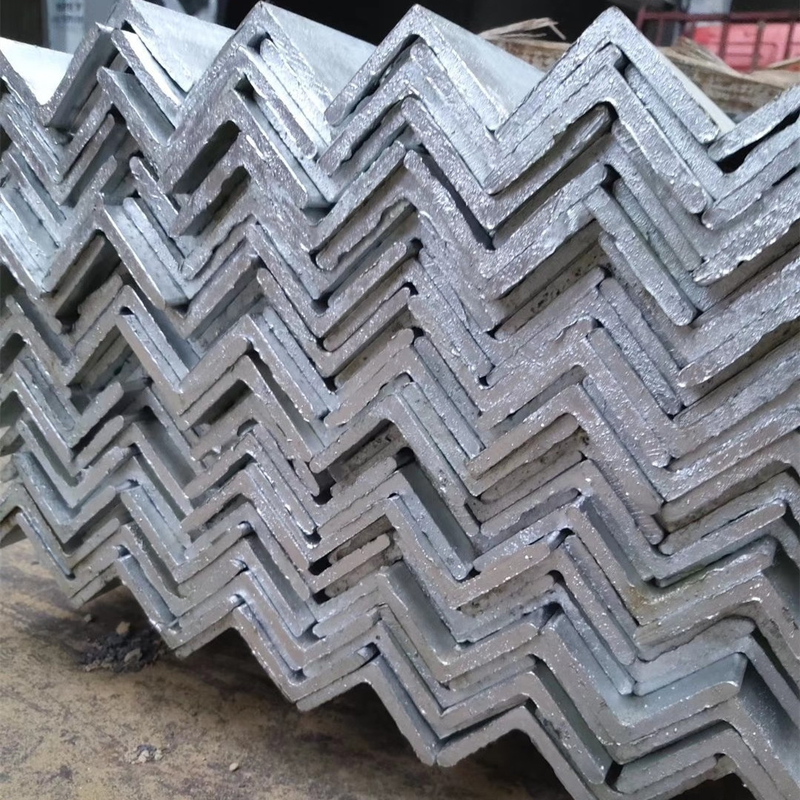

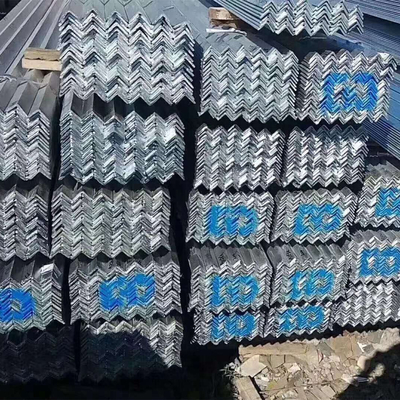

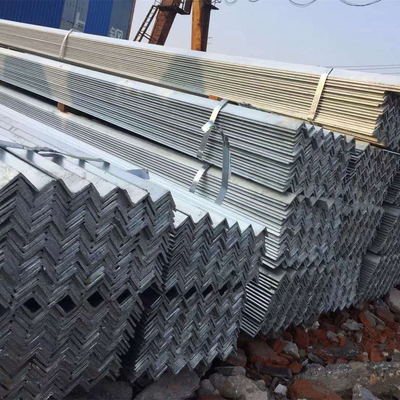

Product picture
Other Products
Company Information
The Reason Why You Will Choose Us
Our Service
Q1: Shipping&price term?
A: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you
Q2: How do I pay?
A: TT and LC are acceptable and TT will be more appreciated. 30% paid for deposit by T/T before production. 70% balance to bepaid by T before shipment.
Q3: What is your terms of payment ?
A: Pavment<=1000USD, 100% in advance, Pavment=1000USD. 30% T/T in advance balance before shippment.
Q4: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
