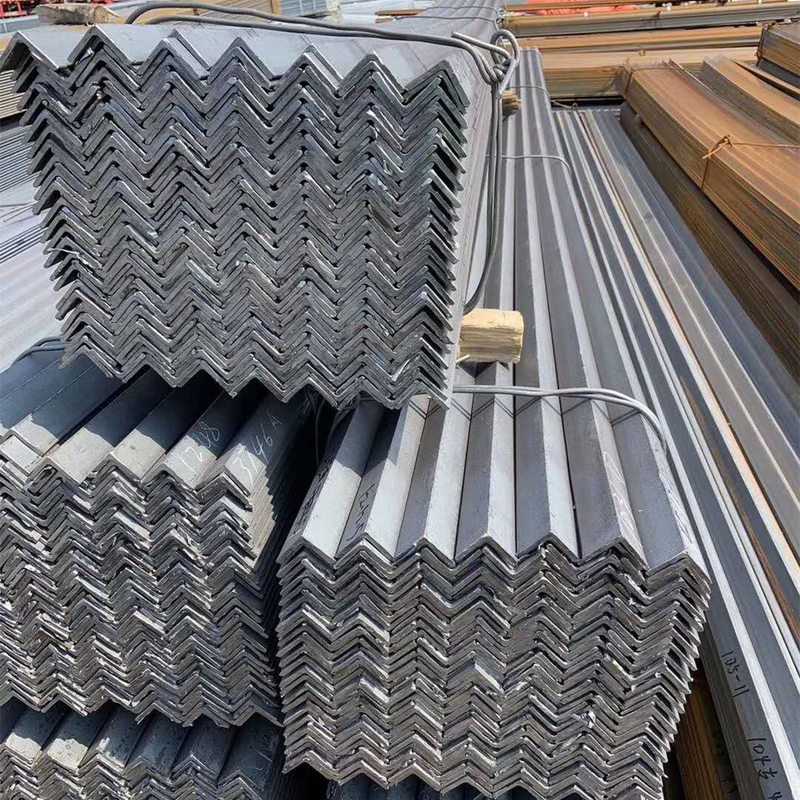

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm
Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm

Large Image :  Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm

Product Details:
Place of Origin: Jiangsu China
Brand Name: Mittel
Certification: ISO SGS BV
Model Number: 20*20-300*300
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: 680 USD / TON
Packaging Details: Standard export packing or as per customer’s request.
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 tons per month
Contact Now

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm

Description
Product Name: Hot Rolled High Strength Galvanized Steel Angle Material: A36 S235JR
Equal Size: 20mmX20mmx2mm-200mmX200mmX24mm Surface Treatment: Galvanized
Application: Building Structures And Engineering Structures Type: Equal Or Unequal Angle Steel Bar
High Light:

astm a36 galvanized angle bar

,

s355j2 galvanized angle bar

,

80*80 galvanized steel angle bar

Product: Hot Dip Galvanized Angle Bars ( A36 S235Jr S355Jr S355J2)
 we can manufacture and supply structural steel angle bar, flat bar, I beam Bar, H beam bar, U Steel channel bar, material scope include A36, Q235B, Q235, S235JR S355J2, SS400, ST 37, Q345. We guarantee the quality and quantity with low price.

A36 Structural Steel Angle, is a hot rolled, mild steel angle shape with inside radius corners that is ideal for all structural applications, general fabrication and repairs. A36 Steel Angle is used in industrial maintenance, agricultural implements, transportation equipment, etc. A36 Steel Angle is also available in a galvanized coated finish.
O Specifications: ASTM A36
O AKA: HR steel angle, mild steel angle, steel L
O Applications: Frame work, braces, supports, cross members, etc.
O Workability: Easy to Weld, Cut, Form, and Machine
O Mechanical Properties: Brinell = 112, Tensile = 58-80, 000 +/-,
Yield = 36, 000 +/-
O How is it Measured? Leg (A) X Leg (B) X Thickness (C) X Length
O Available Stock Sizes: 2ft, 4ft, 6ft, 8ft, 10ft, 20ft or Cut to Size


IZES AND THEORETICAL WEIGHT OF UNEQUAL ANGLES
SIZE THEORETICAL WEIGHT(kg/m) SIZE WEIGHT(kg/m)
STANDARD: JIS G 3192: 2005 STANDARD: GB9788-88
100*75*6 8.04 100*80*6 8.35
100*75*7 9.32 100*80*7 9.656
100*75*8 10.6 100*80*8 10.946
100*75*9 11.8 100*80*9 12.2
100*75*10 13 100*80*10 13.476
100*75*12 15.4 125*80*7 11.066
125*75*7 10.7 125*80*8 12.551
125*75*8 12.2 125*80*9 14.036
125*75*9 13.55 125*80*10 15.474
125*75*10 14.9 125*80*12 18.33
125*75*12 17.8 160*100*10 19.872
125*75*13 19.1 160*100*12 23.592
150*90*8 14.7 160*100*14 27.247
150*90*9 16.4 160*100*16 30.835
150*90*10 18.2 180*110*10 22.273
150*90*12 21.5 180*110*12 26.464
150*90*15 26.6 180*110*14 30.589
150*100*8 15.2 180*110*16 34.649
150*100*9 17.1 200*125*12 29.761
150*100*10 19 200*125*14 34.436
150*100*12 22.4 200*125*16 39.045
150*100*15 27.7 200*125*18 43.588
150*100*16 29.5
180*90*10 20.5
200*100*10 23
200*100*12 27.3
200*100*14 31.6
200*100*15 33.75
200*100*16 35.9

Package & Loading
Standard Export Seaworthy Packing : With waterproof paper, metal belt pack sheet, put them in wooden pallet, put in container.
The inner size of commonly used container is below:
20FT GP: 5.69mx 2.13mx 2.18m about 25MTS,24-26m³
40FT GP: 11.8mx 2.13m x 2.18m ;about 25MTS,54m³
40FT HG: 11.8m x 2.13m x 2.72m about 22MTS,68m³
Or as customers' requiremenets.

How to make an order?
· Sample approval
· Client make 30% deposit or open LC after confirming the PI
· Client visit our workshop to check quality or arrange Third-party to inspect the cargos.
· After passed Inspection, then we arrange shipment with shipping agent.
· Supplier arrange necessary documents and send copy of these documents
· Client remit balance payment
· Supplier send original documents or telex release the goods
· Quality warranty for 2year after shipment

After sales service
· After receive the goods, We hope to get your feedback at first time.
· We could provide installation guide, if you need, we could give you global service.
· Our Sales are 24-hours online for your request.

Professional sales
· We value every inquiry sent to us, ensure quick competitive offer.
· We cooperate with customer to bid tenders. Provide all necessory document.
· We are a sales team, with all techinical support from engineer team.

Welcome to contact with us!



Steel Angle Sizes High Quality Steel Angle Bar With Hole

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 0Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 1

Equal Angle Steel Sizes
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
25*3 1.124 70*5 5.397 100*12 17.898 160*10 24.729 200*25 73.600
25*4 1.459 70*6 6.406 100*16 23.257 160*12 29.391 220*16 53.901
30*3 1.373 70*7 7.398 110*8 13.532 160*14 33.987 220*18 60.250
30*4 1.786 70*8 8.373 110*10 16.690 160*16 38.581 220*20 66.533
40*3 1.852 75*5 5.818 110*12 19.782 175*12 31.800 220*22 72.751
40*4 2.422 75*6 6.905 110*14 22.809 175*15 39.400 220*24 78.902
40*5 2.976 75*7 7.976 120*12 21.666 180*12 33.159 220*26 84.987
50*4 3.059 75*8 9.03 120*10 18.370 180*14 38.382 250*18 68.956
50*5 3.770 75*10 11.089 120*12 21.666 180*16 43.542 250*20 76.180
50*6 4.465 80*6 7.376 125*8 15.504 180*18 48.634 250*24 90.433
60*5 4.520 80*10 11.874 125*10 19.133 200*14 42.894 250*25 93.770
60*6 5.420 90*8 10.946 125*12 22.696 200*15 45.300 250*26 97.461
63*4 3.907 90*10 13.476 125*14 26.193 200*16 48.680 250*28 104.422
63*5 4.822 90*12 15.940 140*10 21.488 200*18 54.401 250*30 111.318
63*6 5.721 100*8 12.276 140*12 25.522 200*20 60.056 250*32 118.149
63*8 7.469 100*10 15.120 140*14 29.490 200*24 71.168 250*35 128.271



Unequal Angle Steel Sizes
Size
(MM)		 Theoretical weight
(KG/M)		 SIZE
(MM)		 Theoretical weight
(KG/M)		 SIZE
(MM)		 Theoretical weight
(KG/M)
125*75*7 10.700 100*80*10 13.476 180*110*16 34.649
125*75*8 12.200 110*70*6 8.350 200*125*12 29.761
125*75*9 13.600 110*70*7 9.656 200*125*14 34.436
125*75*10 15.000 110*70*8 10.946 200*125*16 39.045
125*75*12 17.800 110*70*10 13.476 200*125*18 43.588
45*30*4 2.251 125*80*7 11.066 200*125*20 47.885
50*32*4 2.494 125*80*8 12.551 100*75*6 8.060
56*36*4 2.818 125*80*10 15.474 100*75*7 9.340
63*40*5 3.466 125*80*12 18.330 100*75*8 10.600
63*40*6 3.920 140*90*8 14.160 100*75*9 11.800
75*50*5 4.638 140*90*10 17.475 100*75*10 13.000
75*50*6 4.808 140*90*12 20.724 100*75*12 15.350
75*50*8 5.699 140*90*14 23.908 150*90*8 14.700
90*56*6 7.431 160*100*10 19.872 150*90*9 16.400
90*56*8 6.717 160*100*12 23.592 150*90*10 18.200
100*63*6 8.779 160*100*14 27.035 150*90*12 21.600
100*63*8 7.550 160*100*16 30.835 200*100*10 23.000
100*63*10 9.878 180*110*10 22.273 200*100*12 27.620
100*80*6 12.142 180*110*12 26.464 200*100*15 30.040
100*80*8 10.946 180*110*14 30.589

Steel Grades

Standard Equivalent
China
GB/T,YB		 America
ASTM		 Japan
JIS		 Germany
DIN EN		 England
BS EN		 France
NF EN		 ISO Korea
KS		 India
IS
Q195 Grade B



SS330
SPHC

 S185(1.0035) E185
Fe(310)		   D
Q215 Grade C
CS Type B		     SS330
(SS34)		 Fe-330
Q235-A Grade D SS400 S235JR (1.0038) E235 A
E235 B
E235 C
E235 D		 SS400
(SS41)
Q235-B S235J0(1.0114) Fe-410
Q235-C S235J2(1.0117)
Q235-D   S235JR(1.0038)
Q275 SS Grade
40 (275 )		 SS490 S275JR(1.0044)
S275J0(1.0143)
S275J2(1.0145)		 E275
(Fe430)		 SS490 Fe-490
Q345-A Grade
50 (345)		 SPFC590 E355(1.0060) E355
Q345-B S355JR(1.0045)
Q345-C S355J0(1.0553)
Q345-D S355J2(1.0577)
Q345-E S355NL(1.0546)

Packing & Delivery

Packing
1.By steel strips in bundles
2.By woven cloth with 7 slats
3.By woodenn pallet
4.Accorging to the requirements of customers
Delivery
By sea
1.In bulk ( based on 200tons)
2.20ft container: 25tons (Length limted 5.8m MAX)
3.40ft container:(Length limted 11.8m MAX)
By air
UPS/DHL/FEDEX
By truck
as customer ruquests

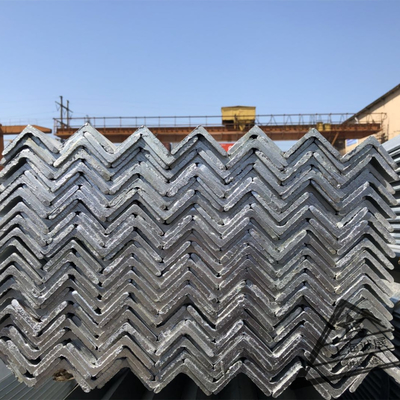

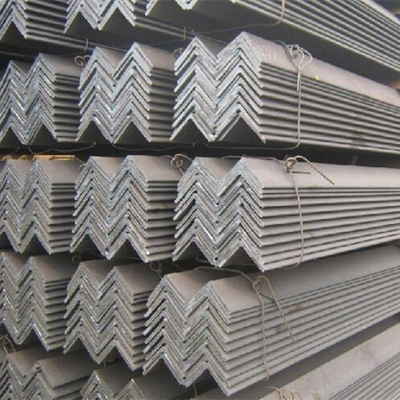

Product picture



Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 2Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 3

Other Products



  • stainless steel sheet /plate
  • Stainless steel coil
  • Stainless steel pipe/tube
  • Stainless steel bar/rod
  • Stainless steel square/angle bar
  • Galvanized steel sheet/plate
  • Galvanized steel coil
  • Galvanized steel pipe/tube





                                              Company Information



                   The Reason Why You Will Choose Us

  • We are an large storage company and have our own factory . We specialize in stainless steel products for 23 years, which located in Wuxi City ,China , very close to Shanghai Port.
  • After many years of accumulation and upgrading ,we have rich experience in stainless steel products and galvanized steel products .
  • Our product line includes stainless steel sheet/plate/circle/coil/strip/pipe/tube/bar. etc and galvanized steel sheet/plate/coil/strip. etc . More than 200 kinds of products for your choice .
  • Our technical staff have developed special stainless steel that used in some extremely harsh working environment. Such as Monel / Incoloy / Inconel / Hastelloy .etc
  • Our products are certified by ISO9001:2008 authentication quality systems.
  • we are nominated as the AAA enterprise by Jiangsu government.
  • Customized Service is provided on the basis of high quality & reasonable price .
  • We are powerful manufacturer audited by world top inspection company ISO ,SGS, TUV and BV.
  • Our products have been exported to more than 60 countries and regions.
  • Good after-sale service .
  • We sincerely welcome you to visit our factory if you have interest ,we will show our best sincerity .

 Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 4



     Our Service

  • Customized Size & Surface Treatment as your requirement .
  • Free Sample can be provided .
  • Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 5

Astm A36 S235jr S355j2 Galvanized Angle Bar 80*80*8mm 6

FAQ

Q1: Shipping&price term?
A: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you

Q2: How do I pay?
A: TT and LC are acceptable and TT will be more appreciated. 30% paid for deposit by T/T before production. 70% balance to bepaid by T before shipment.

Q3: What is your terms of payment ?
A: Pavment<=1000USD, 100% in advance, Pavment=1000USD. 30% T/T in advance balance before shippment.

Q4: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.



Tag:

SS angle bar,

equal angle bar,

cold drawn steel bar

Contact Details
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Contact Person: Mr. Gao Ben

Tel: +86-18068357371

Fax: 86-0510-88680060

Send your inquiry directly to us (0 / 3000)

About

Stainless Steel Seamless Tube

SMO 254 Seamless Stainless Steel Tube ASTM A213 UNS S31254 / 6MO / 1.4547 / Alloy 254

SUS 310S 2" Sch.160 SMLS ASTM A312 TP310S Stainless Steel Tubing

2205 Duplex Astm A790 Stainless Steel Pipe UNS S31803 UNS S32205 S322053 Seamless Tube

Stainless Steel Plates

316L DIN1.4404 Stainless Steel Plate ASTM A240 Grade

1Cr17Ni2 (1.4057) 431 Martensitic Stainless Steel Plate 8-100mm

S31254 PLATE 254 SMO Hot Rolled Plate SA 240 UNS S31254 Plate SS 254 SMO F44 Plates

LEAVE MESSAGE

Privacy Policy | China Good Quality Stainless Steel Sheet Supplier. © 2014 - 2024 stainlesssteel-sheetmetal.com. All Rights Reserved.
