300*300 Angle Bar Galvanized For Building Structures

300*300 Angle Bar Galvanized For Building Structures
300*300 Angle Bar Galvanized For Building Structures 300*300 Angle Bar Galvanized For Building Structures 300*300 Angle Bar Galvanized For Building Structures

Large Image :  300*300 Angle Bar Galvanized For Building Structures

Product Details:
Place of Origin: Jiangsu China
Brand Name: Mittel
Certification: ISO SGS BV
Model Number: 20*20-300*300
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: 650 USD / TON
Packaging Details: Standard export packing or as per customer’s request.
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 tons per month
Contact Now

300*300 Angle Bar Galvanized For Building Structures

Description
Product Name: Hot Rolled High Strength Galvanized Steel Angle Material: A36
Equal Size: 20mmX20mmx2mm-200mmX200mmX24mm Surface Treatment: Galvanized
Application: Building Structures And Engineering Structures Type: Equal Or Unequal Angle Steel Bar
High Light:

300*300 angle bar galvanized

,

building structures angle bar galvanized

,

300*300 galvanised steel angle bar

Galvanized angle steel is a commonly used section steel in construction. It has a wide range of functions. It is mainly used for connectors, brackets, door beams, steel window and door beams and other structures. The surface of galvanized steel has excellent anti-corrosion effect and has a long service life.

Common Size supply

Supply Size(mm) Supply Length(m)
75*75*8 0.9;1.0;1.25;1.4;1.5;1.6;1.85;2.0;2.2;12 etc
90*90*8 2.0;2.2;2.5;2.8;5.8;6;12 etc
100*100*8 1.65;2.0;2.2;2.8 etc
100*75*8 0.9;1.0;1.2;1.3;2.0;2.2;2.5;2.8 etc
125*75*8 1.4;1.5;1.6;1.85;2.0;2.2;12 etc
150*90*8 2.8;3.4;3.5;5.8;6.0;11.8;12 etc
160*100*10 3.1;4.1;4.3;4.6;4.8;5.8;12etc
Note:1. Galvanized coat more than 85um (600g/m2)
2.Other size and length can customized
Clients request/our advantage
Client's Common Request&Worried Our advantage
Need good price Base on standard and material not changed, we are providing our very nice price to support client, that's for long time cooperation.We are sure that our price is definitely lower than that of most of theelectronic product suppliers based on the same quality
Short delivery time to save fund interest Common Delivery time will keep 30 days, this based on order quantity and material situation. If urgent, delivery time can discuss.it's no problem.
Whether can providing sample to confirm quality No problem, As confirm drawings, we can doing samples to you confirm within 7 days
Are you can design drawings as request Yes, when clear your request, there can arrange Designer to designing drawings as your request to your confirm within 3 days , and then to produce. And same time,we also have professional person to re-check drawing if your original drawings have problem,will take time to discuss with you to Revise it within 3days
Are you have certificate for cargos quality We have ISO,SGS of factory certificate, and shipment will providing Mill Test certificate, and if you need, also can arrange third party test, we support your work to confirm cargo good.
Logo & Label As request to providing Logo &Label, three types for choose, one is sticker for each pcs with your request information; second is lag for each bundles; third is Stencil for each pcs, follow have pictures for your check and choose
Packages Standard Sea shipment Packages, If have request or drawings using by matching Set not pcs, will Packing as Set to arrange Packages, easy for your Matching set when shipment Reached
Payment terms T/T,L/C and others to discuss

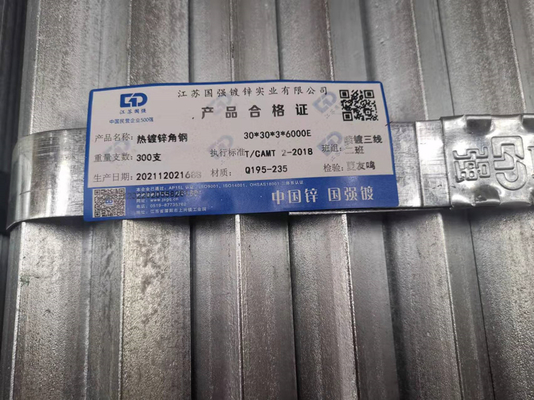

Customized Label& Logo

Logo &Label, three types for choose

one is sticker for each pcs with your request information;
second is lag for each bundles;
third is Stencil for each pcs,
follow have pictures for your check and choose

Steel Angle Sizes High Quality Steel Angle Bar With Hole

300*300 Angle Bar Galvanized For Building Structures 0300*300 Angle Bar Galvanized For Building Structures 1

Equal Angle Steel Sizes
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
25*3 1.124 70*5 5.397 100*12 17.898 160*10 24.729 200*25 73.600
25*4 1.459 70*6 6.406 100*16 23.257 160*12 29.391 220*16 53.901
30*3 1.373 70*7 7.398 110*8 13.532 160*14 33.987 220*18 60.250
30*4 1.786 70*8 8.373 110*10 16.690 160*16 38.581 220*20 66.533
40*3 1.852 75*5 5.818 110*12 19.782 175*12 31.800 220*22 72.751
40*4 2.422 75*6 6.905 110*14 22.809 175*15 39.400 220*24 78.902
40*5 2.976 75*7 7.976 120*12 21.666 180*12 33.159 220*26 84.987
50*4 3.059 75*8 9.03 120*10 18.370 180*14 38.382 250*18 68.956
50*5 3.770 75*10 11.089 120*12 21.666 180*16 43.542 250*20 76.180
50*6 4.465 80*6 7.376 125*8 15.504 180*18 48.634 250*24 90.433
60*5 4.520 80*10 11.874 125*10 19.133 200*14 42.894 250*25 93.770
60*6 5.420 90*8 10.946 125*12 22.696 200*15 45.300 250*26 97.461
63*4 3.907 90*10 13.476 125*14 26.193 200*16 48.680 250*28 104.422
63*5 4.822 90*12 15.940 140*10 21.488 200*18 54.401 250*30 111.318
63*6 5.721 100*8 12.276 140*12 25.522 200*20 60.056 250*32 118.149
63*8 7.469 100*10 15.120 140*14 29.490 200*24 71.168 250*35 128.271



Unequal Angle Steel Sizes
Size
(MM)		 Theoretical weight
(KG/M)		 SIZE
(MM)		 Theoretical weight
(KG/M)		 SIZE
(MM)		 Theoretical weight
(KG/M)
125*75*7 10.700 100*80*10 13.476 180*110*16 34.649
125*75*8 12.200 110*70*6 8.350 200*125*12 29.761
125*75*9 13.600 110*70*7 9.656 200*125*14 34.436
125*75*10 15.000 110*70*8 10.946 200*125*16 39.045
125*75*12 17.800 110*70*10 13.476 200*125*18 43.588
45*30*4 2.251 125*80*7 11.066 200*125*20 47.885
50*32*4 2.494 125*80*8 12.551 100*75*6 8.060
56*36*4 2.818 125*80*10 15.474 100*75*7 9.340
63*40*5 3.466 125*80*12 18.330 100*75*8 10.600
63*40*6 3.920 140*90*8 14.160 100*75*9 11.800
75*50*5 4.638 140*90*10 17.475 100*75*10 13.000
75*50*6 4.808 140*90*12 20.724 100*75*12 15.350
75*50*8 5.699 140*90*14 23.908 150*90*8 14.700
90*56*6 7.431 160*100*10 19.872 150*90*9 16.400
90*56*8 6.717 160*100*12 23.592 150*90*10 18.200
100*63*6 8.779 160*100*14 27.035 150*90*12 21.600
100*63*8 7.550 160*100*16 30.835 200*100*10 23.000
100*63*10 9.878 180*110*10 22.273 200*100*12 27.620
100*80*6 12.142 180*110*12 26.464 200*100*15 30.040
100*80*8 10.946 180*110*14 30.589

Steel Grades

Standard Equivalent
China
GB/T,YB		 America
ASTM		 Japan
JIS		 Germany
DIN EN		 England
BS EN		 France
NF EN		 ISO Korea
KS		 India
IS
Q195 Grade B



SS330
SPHC

 S185(1.0035) E185
Fe(310)		   D
Q215 Grade C
CS Type B		     SS330
(SS34)		 Fe-330
Q235-A Grade D SS400 S235JR (1.0038) E235 A
E235 B
E235 C
E235 D		 SS400
(SS41)
Q235-B S235J0(1.0114) Fe-410
Q235-C S235J2(1.0117)
Q235-D   S235JR(1.0038)
Q275 SS Grade
40 (275 )		 SS490 S275JR(1.0044)
S275J0(1.0143)
S275J2(1.0145)		 E275
(Fe430)		 SS490 Fe-490
Q345-A Grade
50 (345)		 SPFC590 E355(1.0060) E355
Q345-B S355JR(1.0045)
Q345-C S355J0(1.0553)
Q345-D S355J2(1.0577)
Q345-E S355NL(1.0546)

Packing & Delivery

Packing
1.By steel strips in bundles
2.By woven cloth with 7 slats
3.By woodenn pallet
4.Accorging to the requirements of customers
Delivery
By sea
1.In bulk ( based on 200tons)
2.20ft container: 25tons (Length limted 5.8m MAX)
3.40ft container:(Length limted 11.8m MAX)
By air
UPS/DHL/FEDEX
By truck
as customer ruquests

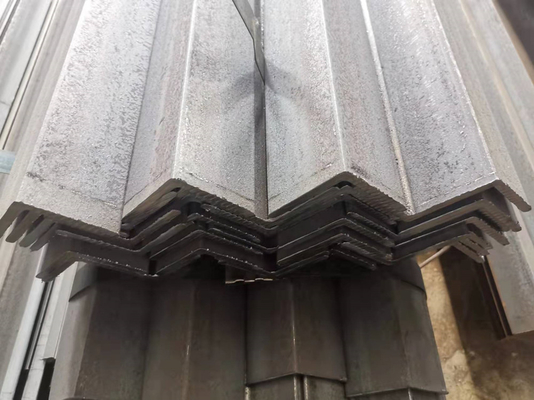

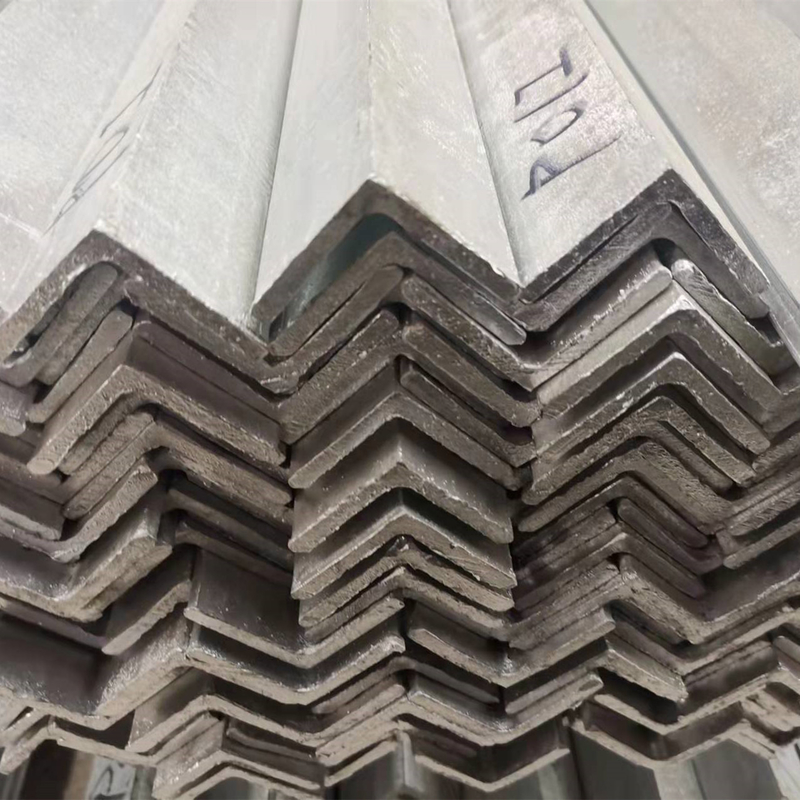

Product picture



300*300 Angle Bar Galvanized For Building Structures 2300*300 Angle Bar Galvanized For Building Structures 3

Other Products



  • stainless steel sheet /plate
  • Stainless steel coil
  • Stainless steel pipe/tube
  • Stainless steel bar/rod
  • Stainless steel square/angle bar
  • Galvanized steel sheet/plate
  • Galvanized steel coil
  • Galvanized steel pipe/tube





                                              Company Information



                   The Reason Why You Will Choose Us

  • We are an large storage company and have our own factory . We specialize in stainless steel products for 23 years, which located in Wuxi City ,China , very close to Shanghai Port.
  • After many years of accumulation and upgrading ,we have rich experience in stainless steel products and galvanized steel products .
  • Our product line includes stainless steel sheet/plate/circle/coil/strip/pipe/tube/bar. etc and galvanized steel sheet/plate/coil/strip. etc . More than 200 kinds of products for your choice .
  • Our technical staff have developed special stainless steel that used in some extremely harsh working environment. Such as Monel / Incoloy / Inconel / Hastelloy .etc
  • Our products are certified by ISO9001:2008 authentication quality systems.
  • we are nominated as the AAA enterprise by Jiangsu government.
  • Customized Service is provided on the basis of high quality & reasonable price .
  • We are powerful manufacturer audited by world top inspection company ISO ,SGS, TUV and BV.
  • Our products have been exported to more than 60 countries and regions.
  • Good after-sale service .
  • We sincerely welcome you to visit our factory if you have interest ,we will show our best sincerity .

 300*300 Angle Bar Galvanized For Building Structures 4



     Our Service

  • Customized Size & Surface Treatment as your requirement .
  • Free Sample can be provided .
  • Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
