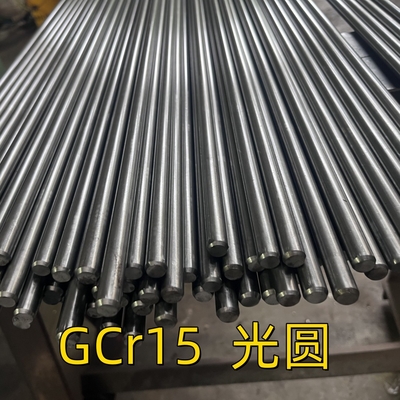

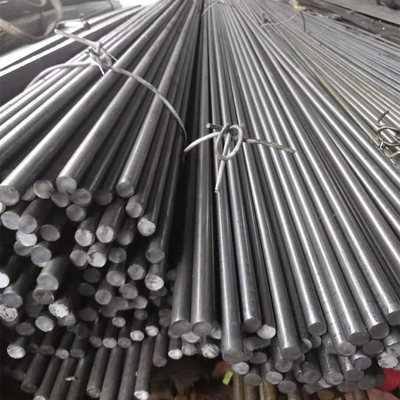

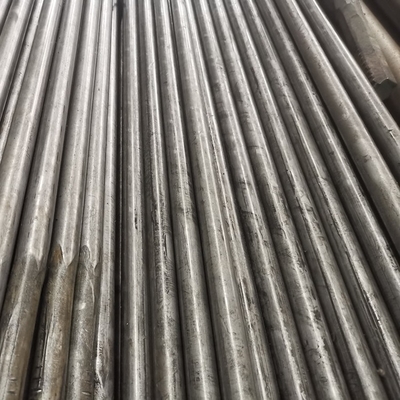

Gcr15 Alloy Steel Round Bar Bright Cold Drawn Bearing Steel SAE52100 / EN31 16*2500mm
Product Introduction
GCr15 refers to a high carbon and chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has high hardness, uniform structure, good wear resistance and high contact fatigue performance.
Features
1. 1 A kind of high carbon and chromium bearing steel which most widely used with a good permance and less alloy content.
2. 2. High hardenability and good comprehensive performance.
3. 3. Good machinability after spheroidizing annealing
4. 4. High hardness, uniform organization, good wear resistance, high contact fatigue performance after quenching and tempering.
5. 5. Good hot working performance
Similar Standards
| Chinese |
American |
German |
Japanese |
| GB |
AISI |
DIN |
JIS |
| GCr15 |
SAE52100 |
100Cr6/EN31 |
SUJ2 |
Chemical Composition
| Grades |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
| GCr15/52100 |
0.95-1.05 |
0.15-0.35 |
0.2-0.4 |
≤0.027 |
≤0.02 |
1.3-1.65 |
≤0.1 |
≤0.25 |
≤0.3 |
| 100Cr6 |
0.95-1.05 |
0.15-0.35 |
0.25-0.45 |
≤0.025 |
≤0.025 |
1.4-1.65 |
≤0.08 |
≤0.25 |
≤0.3 |
Heat Treatment
| Quenching |
Tempering |
| Heating Temperature/℃ |
Cooling |
Hardness/HRC |
Heating Temperature/℃ |
Cooling |
Hardness/HRC |
| 830-850 |
Oil |
62-65 |
150-190 |
Air |
58-62 |
General Applications
1. 1 For making all kinds of bearing ring and rolling element, such as steel ball roller and ferrule of inernal combustion engine, electric motorcycle, automonilrd tractors, machine tools, rolling mill, boring machine, mining machinery, general machinery, high load and high speed roating mechanical transmission bearing.
2. 2. Sometimes also used to make tools, such as pumching die and measuring tools
Stock Size
| Round Bar |
Diameter |
16-280mm |
| Length |
4000-10000mm |
| Flat Steel |
Thickness |
8-200mm |
| Length |
3000-4000mm |
Why choose us?
Quality Assurance from government owned steel mills
At die & tool steel , we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects –our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service
