Product Details:
|
| Width: | 600mm-1250mm | Standard: | ASTM |
|---|---|---|---|
| Length: | Coil | Grade: | DX51D Z275 |
| Application: | Roofing,Decor,Flange Plate,commercial Use | Technique: | Cold Rolled |
| Coil Weight: | 2.5-8ton | Type: | Steel Coil |
| Surface Treatment: | Galvanized | Surface: | Galvanized Coated,chromated And Oiled |
| Thickness: | 0.12-4.0 | ||
| High Light: | 3mm gi coil,0.3mm hot dipped galvanized steel coils,g90 hot dipped galvanized steel coils |
||
0.3mm G90 Z275 Zinc Galvanized Steel Coils Sheets hot dipped galvanized steel
The process flow of galvanized sheet is as follows:
1. Firstly, the cold-rolled steel plate is degreased by alkali washing and water washing, and then it is annealed in the horizontal (vertical) heating furnace with radiant tube heating after drying, and a certain amount of hydrogen is introduced into the furnace to create a reduction atmosphere in the furnace.
2. The steel strip heated to a certain temperature is immersed in zinc solution for hot galvanizing under certain conditions.
3. To control the size of the flower zinc, use the small liquid zinc method to control the diffusion of zinc in the product.
4. After hot-dip galvanizing and cooling, the surface is smoothed, and the surface is passivated or directly produced into color coated coil plate according to the use.
Advantages of galvanized sheet: 1. Low processing cost 2. Durable 3. Good reliability 4. Toughness of coating 5. Comprehensive protection 6. Saving time and labor 8. Simple and convenient inspection

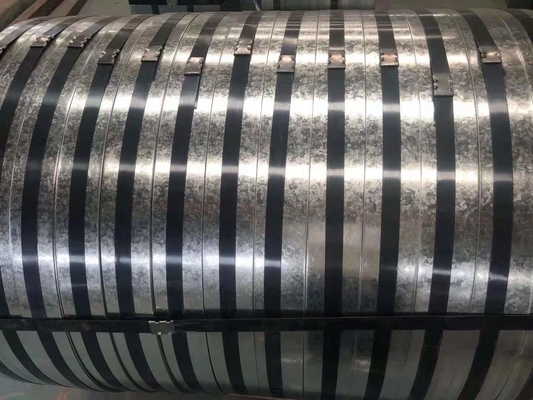

Photos for hot dip galvanized steel coil
Applications of gi steel coil:
1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.
2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.
3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.
4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine.
5. Furniture: lampshade, counter, signboard and medical facility etc.
Mill Test Certificate:(JIS G 3302 SGCH)
| Physical Spec | ||||||||||||
| No. | Heat No. | Size(mm) | Quantity | Chemical Composition(%) | Final | |||||||
| MT | C | Si | Mn | P | S | Tensile strength | Enlongation | Yield Strength(N/mm2) | ||||
| (Mpa) | (%) | |||||||||||
| 1 | 121208102 | 0.14MM X 750MM X COIL | 0.05 | 0.02 | 0.33 | 0.014 | 0.015 | 650 | 15 | 550 | A | |
| 2 | 121208208 | 0.15MM X 750MM X COIL | 0.06 | 0.03 | 0.32 | 0.015 | 0.019 | 660 | 17 | 558 | A | |
| 3 | 121208214 | 0.20MM X 750MM X COIL | 0.06 | 0.03 | 0.34 | 0.020 | 0.021 | 655 | 16 | 560 | A | |
| 4 | 121208216 | 0.30MM X 750MM X COIL | 0.08 | 0.02 | 0.40 | 0.016 | 0.017 | 660 | 17 | 568 | A | |
Competitive Advantage of galvanized steel roll:
Packing pictures:
