Soild Alloy Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 High Tensile Hot Rolled Steel Round Bar

Large Image : Soild Alloy Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 High Tensile Hot Rolled Steel Round Bar

Product Details:

Place of Origin:	China
Brand Name:	TSINGSHAN
Certification:	ISO MTC
Model Number:	4140

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	USD1.45/KG
Packaging Details:	Wooden Box
Delivery Time:	7 Days
Payment Terms:	L/C, T/T
Supply Ability:	50000KGS

Contact Now

Soild Alloy Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 High Tensile Hot Rolled Steel Round Bar

Description

Surface Treatment:	Black/Peeling/Polishing/Machined	Length:	Customizable
Color:	Metallic	Physical Properties:	Specific Gravity 7.85
Transport Package:	Nude Packing Or As Requested	Ends:	Beveled/plain
Surface:	Black And Bright	Type:	Carbon Steel Bar
Service:	Cutting	Secondary Or Not:	Non-secondary
Tolerance:	Standard	Size Ranfe:	Φ20-500
Tech:	Hot Rolled	Delivery Condition:	Annealed,hot Rolled/forged
Highlight:	FORGED Steel Round Bar , High Tensile Steel Round Bar

Soild Round Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 Hardness 300~400BHN

Product Description

SCM440 42CrMo4 SAE AISI 4140 EN19 1.7225 High Tensile Hot Rolled Steel Round Bar Steel Bar

EN19 AISI 4140 42CrMo4 is a alloy structural steel, which is used for engineering structural, like high tensile shafts, bolts and nuts, gears, pinions and spindles. Locomotive traction with the big gear, supercharger drive gear, pressure vessel, rear axle, gear load of connecting rod and a spring clip.

1.Supply Size range
Hot Rolled en19 steel bar: Ø16mm-310mm
Forging en19 steel bar: Ø260mm-1000mm
Q&T (Quenched&tempered):Ø16-1000mm
Cold drawn bright steel bars : 5mm to 120mm

2.Equivalent Grades

GB,YB	JIS	DIN(W-Nr.)		BS	NF
42CrMo	SCM440/(SCM4)	42CrMo4-1.7225	4140	708M40/709M40/708A42/EN19	42CD4

3.Chemical composition

ASTM A29/29M	C	Si	Mn	Cr	Mo	P	S
4140	0.38~0.43	0.15~0.35	0.75~1.00	0.80~1.10	0.15~0.25	≤0.035	≤0.040
DIN WN-r	C	Si	Mn	Cr	Mo	P	S
1.7225	0.38~0.45	≤0.40	0.60~0.90	0.90~1.20	0.15~0.30	≤0.035	≤0.035
GB/T	C	Si	Mn	Cr	Mo	P	S
42CrMo	0.38~0.45	0.17~0.37	0.50~0.80	0.90~1.20	0.15~0.25	≤0.030	≤0.030
BS	C	Si	Mn	Cr	Mo	P	S
708M40	0.36~0.44	0.10~0.35	0.70~1.00	0.90~1.20	0.15~0.25	≤0.035	≤0.035
JIS	C	Si	Mn	Cr	Mo	P	S
SCM440	0.38~0.43	0.15~0.35	0.60~0.85	0.90~1.20	0.15~0.30	≤0.030	≤0.030

4.Heat Treatment for 4140 steel round bars
4140 alloy steel material is a high quality Quenched and Tempered Alloy Structural steel, It belong to the high quality medium carbon alloy steel, Oil Quenched & Tempered Hardenss is 28-34 HRC.4140 Annealing delivery hardenss less than 250HB

Heat treatment of aisi 4140 steel
Annealing
AISI 4140 alloy steel is annealed at 872°C (1600°F) followed by slowly cooling in the furnace.
Tempering
AISI 4140 alloy steel can be tempered at 205 to 649°C (400 to 1200°F) depending upon the desired hardness level. The hardness of the steel can be increased if it has lower tempering temperature
Hardening

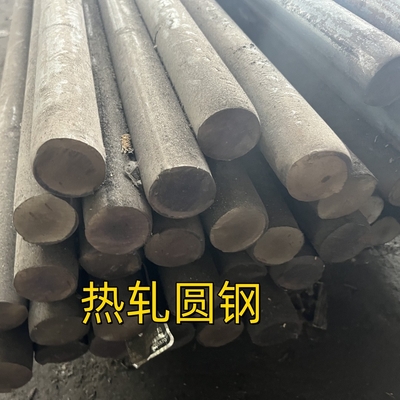

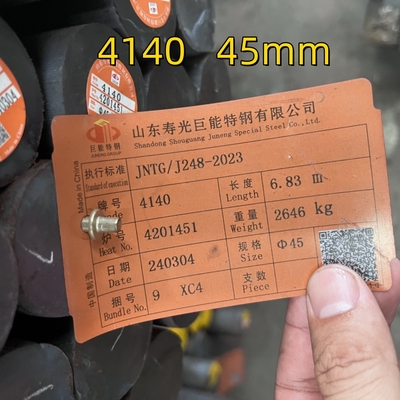

AISI 4140 alloy steel can be hardened by cold working, or heating and quenching. Soild Alloy Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 High Tensile Hot Rolled Steel Round Bar 0

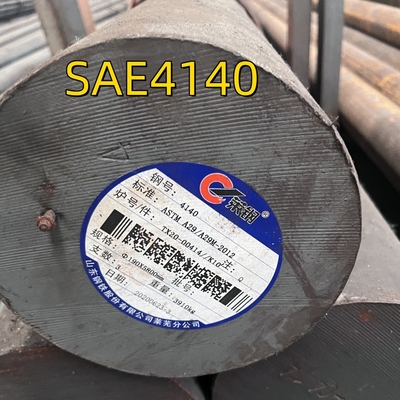

Soild Alloy Bar (FORGED) MATERIAL ASTM A29/A29M GR. 4140 High Tensile Hot Rolled Steel Round Bar 1

1. who are we?
We are based in WUXI CITY , China, start from 2012,sell to Mid East(35.00%),South Asia(20.00%),Southeast Asia(20.00%),South America(16.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Africa(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Carbon Steel Plate, Alloy Steel Plate, Aluminum Pipe, Aluminum Coil, Galvanized Steel Coil

4. why should you buy from us not from other suppliers?
We are a professional manufacturer engaged in research, development, production, sales and service. The main products are PPGI, galvanized steel, steel plate, round steel, steel pipe, stainless steel products, Angle steel, steel piles, H-beams and so on.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,DDP,DDU;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
