Grade 1.4028 30Cr13 10-160mm Stainless Steel Plates Custom Cutting

Grade 1.4028 Stainless Steel Plate 30Cr13 Stainless Steel Plate 10 - 160mm Custom Cutting

Quick infortmations of our products

Grade specification of 1.4028

Chromium grade martensitic stainless steel, which is resistant to corrosion in moderately aggressive environment, water, salt solutions, dilute solutions of nitric acid. It has very extensive properties, so that it can be used in many ways. It does not change its chemical properties after contact with water, salt solution, nitric acid and in combination with other ingredients such as organic acids, soaps and solvents.

Chemical Composition of 1.4028 /30Cr13 Grade

General mechanical properties of X30Cr13, 1.4028 in heat-treated state +QT:

• Tensile strength, Rm: 800 - 1000 MPa
• Yield point, Re: >600 MPa
• Elongation, A: >10%
• HRC Hardness: 45-51
• HV Hardness: 450 - 550
• Tharmal capacity, cp20℃: 460 J * kg-1 * K-1
• Thermal conductivity coefficient, λ: 30 W * m-1 * K-1
• Modulus of elasticity, E: 215 GPa
• Linear Expansion Factor, α: 10,5 * 10-6 K-1

Application of 1.4028/30Cr13 Materials

Stainless steel is used in the manufacture of shafts, pistons, valves, bolts, springs, surgical instruments, measuring instruments, moulds for castings. It is used in the automotive industry, plastics processing, surgery and medicine. In addition, it has a very wide range of applications in construction, hydraulics and food industry.

Stainless steel 1.4028 is used for the production of components that are exposed to acids, solutions or water. This is why stainless steel is used in hydraulics (it is used to manufacture parts for sewerage systems). In addition, this steel grade is also used in medicine. Steel is used to manufacture numerous instruments and medical devices, diagnostic, dental, ophthalmic and surgical equipment.

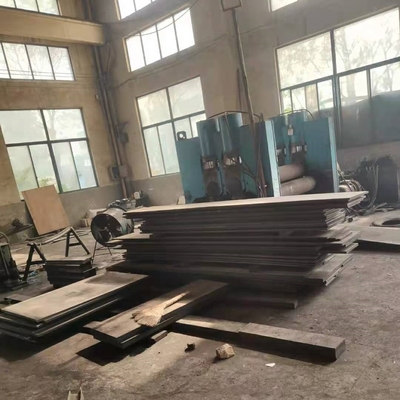

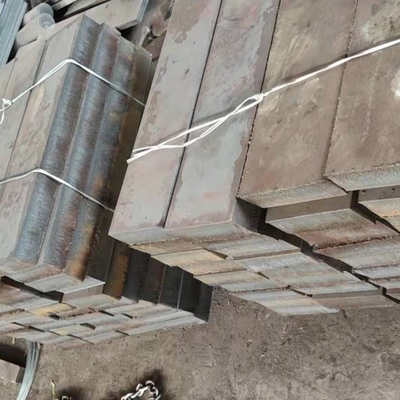

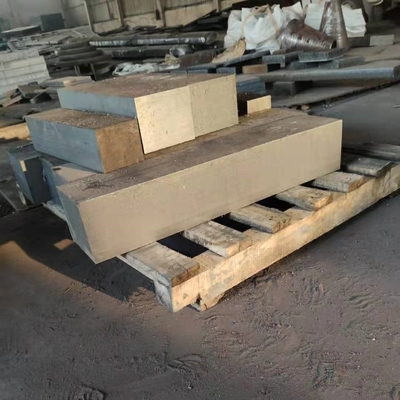

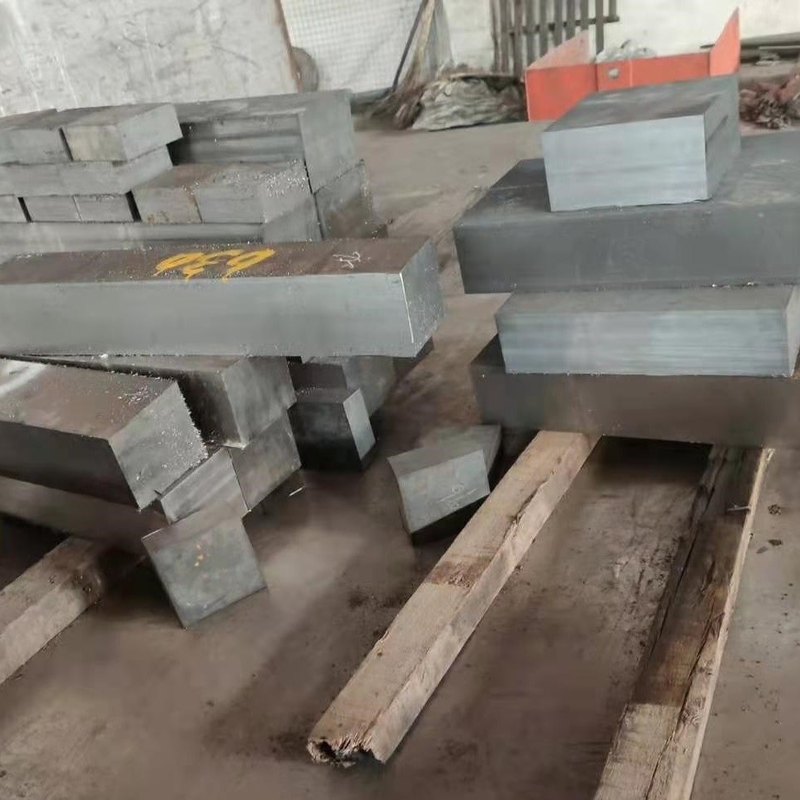

Products Show of our plate
