Product Details:
|
Material: | 321 / 1.4541 | Thickness: | 3.0 - 80.0mm |
---|---|---|---|
Finish: | NO.1 | Width: | 1500mm 1800mm 2000mm |
Length: | 6m Or As Request | Service: | Laser Cutting |
High Light: | EN 1.4541 stainless steel flat plate,AISI321 5mm stainless steel plate,NO.1 5mm stainless steel plate |

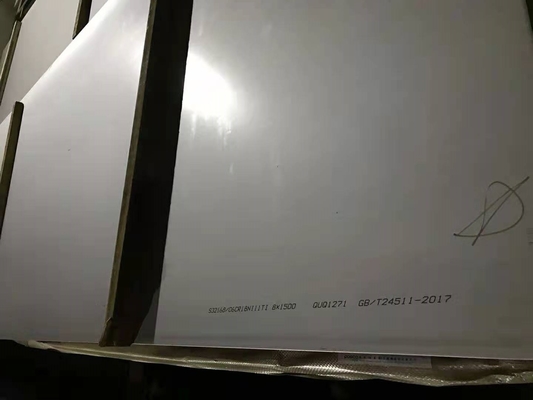

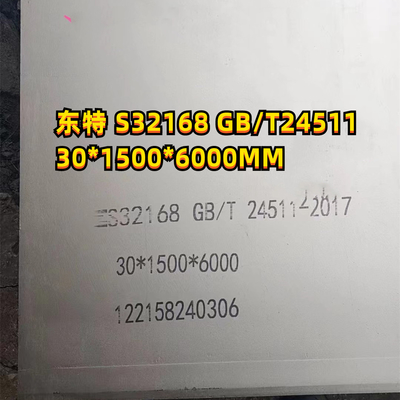

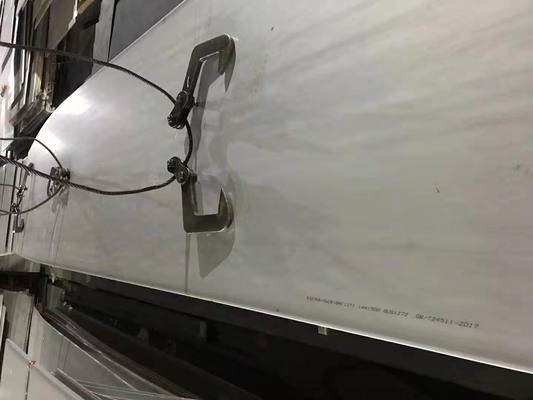

Quick details of our 321 stainless steel plate
Products Name | Stainless Steel Plate |
Grade | 321 / 1.4541 |
Standard | ASTM A240/240M-15, EN 10088 |
Thickness | 3.0 - 80.0mm |
Standard Size | 1500*6000mm |
Other Size | 1800*6000mm,2000*6000mm |
Service | Laser cutting plate as request |
Other Grade | 201 304 304L 309S 310S 316L 317L 410 420 430 431 2205 2507 904L.etc |
321 stainless steel can be readily formed and drawn, however, higher pressures are required and more springback is encountered than for carbon steel and ferritic stainless steels. Like other austenitic stainless steels,Type 321 work hardens quickly and may require annealing after severe forming.The presence of certain alloying elements can make Type 321 more difficult to form than other austenitic grades such as 301, 304 and 305.
321 Chemical compostion
C(%) | Si(%) | Mn(%) | Cr(%) | P(%) | S(%) | Ti(%) | Ni(%) | Cu(%) |
≤0.08 | ≤1.00 | ≤2.00 | 17.0-19.0 | ≤0.035 | ≤0.03 | ≥5×C% | 9.0-12.0 | --- |
321 Mechanical property
tensile strength | Yield Strength | Elongation | rate of reduction in area | (g/cm3) Density |
||||
≥520 | ≥205 | ≥40 | ≥50 | 7.98 |
Specification for 321 SS grade
Technical | Thickness | Width | Finish | Status | ||||
Cold rolled | 0.40mm-3.00mm | Standard width in China: 1000mm 1219mm 1500mm Special width: Based on customer's require. |
2B /No.4 / HL Mirro etc |
sheet / plate / coil strip |
||||
Hot rolled | 3.00mm-80.00mm or more thick |
Standard width in China: 1500mm 1800mm 2000mm Special width: Based on customer's require. |
No.1 | plate / coil |
Application for 321 stainless steel
321 stainless steel is widely used in anti - grain boundary corrosion demanding chemical, coal, oil industry outdoor machine, heat resistant parts of building materials and heat treatment of difficult parts.Sunch as
oil burning gas pipeline
