ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate

ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate
ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate

Large Image :  ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate

Product Details:
Place of Origin: CHINA
Brand Name: HBSC
Certification: ISO 9001
Model Number: 5140 / 1.7035 / 40Cr
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: 800 USD/Ton
Packaging Details: wooden pallets
Delivery Time: 5 - 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300Ton/month

ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate

Description
Products: Alloy Steel Plate Grade: 5140 / 1.7035 / 40Cr
Thickness Range: 10 - 140mm Width: 2200mm Or As Request
Length: Custom Length As Request Service: Cutting
Condition: In Stock Other Grade: 40Cr 42CrMo 45# Q355
High Light:

40Cr Alloy Steel Plate

,

1.7035 Alloy Steel Plate

,

140MM Alloy Steel Plate

ASTM 5140 Alloy Steel Plate 10 - 140mm Custom Cutting 1.7035 40Cr Alloy Steel



Detail informations of our 5140 Alloy Steel Plate



Product Name
5140 Alloy Steel Plate
Width
2200mm or custom as request
Length
custom as request
Thickness 10 - 140mm
Service

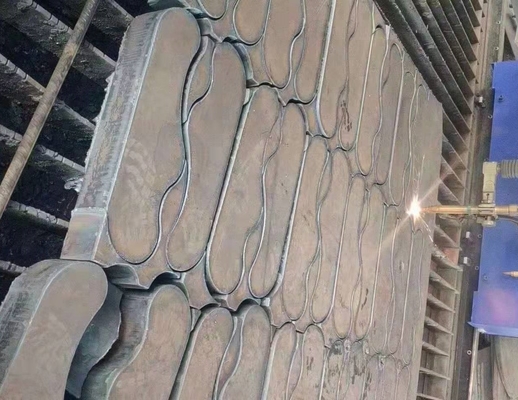

Cutting plate into any size as request
Other Grade
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572 Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
Application
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade
MOQ
500 kgs
Shipment time
5 - 7 days for mateials in stock



5140 steel has good comprehensive mechanical properties and is one of the most widely used steel types, used for manufacturing parts of medium speed and medium load, such as machine tool gear, shaft, worm, spline shaft and so on. The tensile strength, yield strength and hardenability of 5140 alloy steel are higher than 1045 steel, with higher fatigue strength and good toughness, normalizing or tempering machinability are very good, annealing machinability is also good, generally used after tempering treatment.



5140 steel products we can supply:



AISI 5140 steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. DIN W N-R 1.7035 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 1.7035 alloy steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.



Chemical composition

C(%) 0.38~0.43 Si(%) 0.15~0.35   Mn(%) 0.70~0.90 P(%) ≤0.025
S(%) ≤0.040 Cr(%) 0.70~0.90   Mo(%) 0.06Max Ni(%) 0.25Max

Equivalent Of 5140 Alloy Steel

USA Germany China Japan France England Italy Poland ISO Austria Sweden Spain
ASTM/AISI/UNS/SAE DIN,WNr GB JIS AFNOR BS UNI PN ISO ONORM SS UNE
5140 / G51400 41Cr4 / 1.7035 40Cr SCr440 42C4 530A40 / 530M40     41Cr4   2245



Applications

Gear, shafts, Alloyed case hardening steel for parts with a required core tensile strength of 1000 – 1300 N/mm² and good wearing resistance as boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.Especially in wheels and stopcock.

Applications included worm, spline shaft, main shaft, oil pump rotor, sliding block, lantern ring, etc.



ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate 0ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate 1
