Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Large Image : Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Product Details:

Place of Origin:	China Wuxi
Brand Name:	Mittel
Certification:	SGS ISO MTC
Model Number:	1J79

Payment & Shipping Terms:

Minimum Order Quantity:	50KGS
Price:	25 USD/KG
Packaging Details:	Wooden Pallet BOX
Delivery Time:	7 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	500000KGS

Contact Now

Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Description

Type:	Round	Application:	Construction
Standard:	DIN	Grade:	1J79
Shape:	Round	Special Use:	Cold Heading Steel
Certification:	ISO,BV,SGS	Dimensions:	5.5mm-500mm
Technique:	Cold Drawn&hot Rolled	Length:	Customers' Requirements,or As Required.,5.8m
Highlight:	1j79 Stainless Steel Round Bar , 5.5mm Stainless Steel Round Bar , 1j79 Stainless Round Bar

Similar to the brand
GB/T	AISI/ASTM
1J79	Alloy4

Physical properties of 1J79
The density	8.6 g/cm3
Curie point	450℃

Chemical composition
Brand	%	Ni	Fe	C	Mn	Si	P	S	Cu
1J79	Min	78.5	-		0.6	0.3
1J79	Max	80.5	-	0.03	1.1	0.5	0.020	0.020	0.20

Mechanical properties of alloys at room temperature
Brand	Varieties	magnetic
Brand	Varieties	Initial permeability μO(mH/m)	Maximum permeability μm(mH/m)	Coercive force Hc (A/m)	Saturation magnetic induction intensity Bs(T)
1J79	cold-rolled belt	≥31	≥250	≤1.2	0.75
1J79	Forged (rolled) rod and plate	≥25	≥125	≤2.4	0.75

Features and applications of 1J79

Transformers, transformers, magnetic amplifiers, choke cores and magnetic shielding with high initial permeability and operating in a weak magnetic field.

Detailed Images

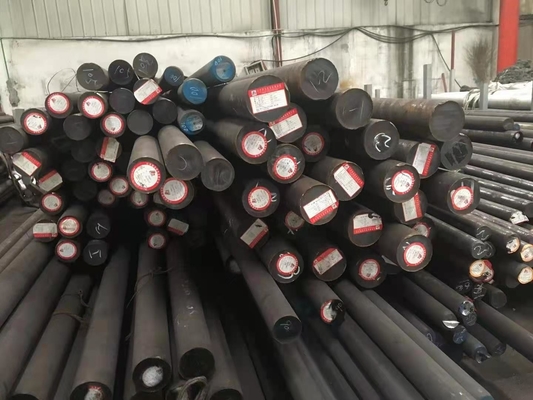

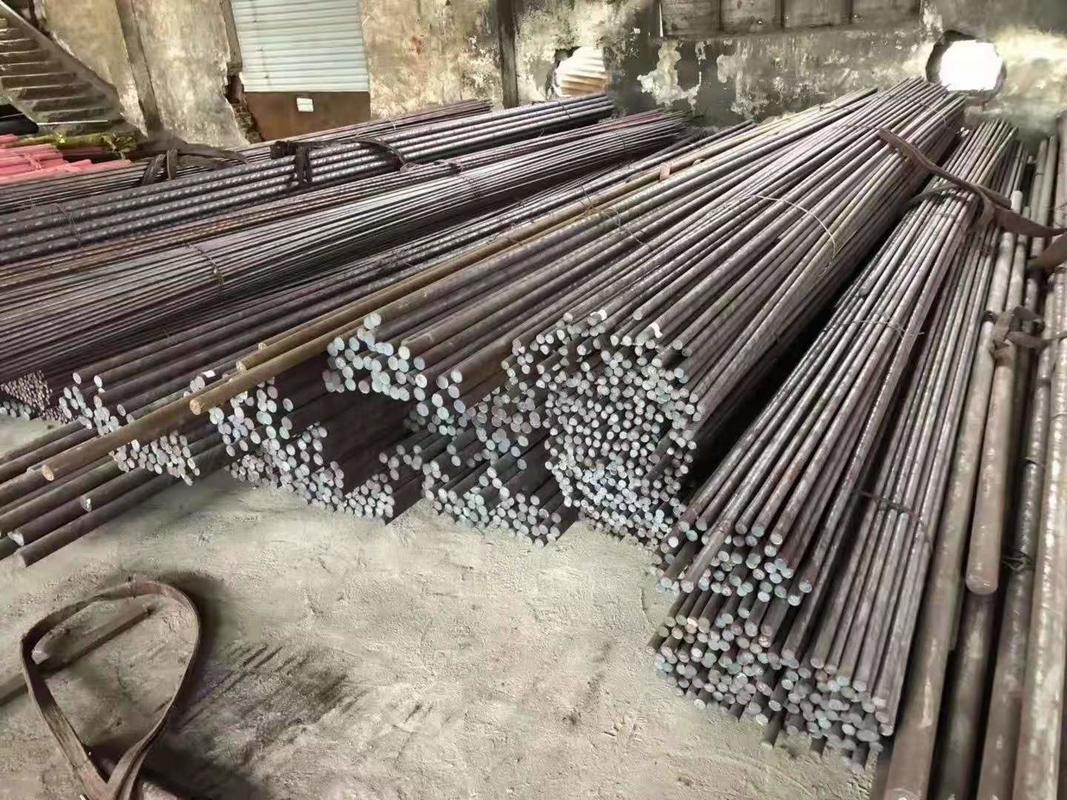

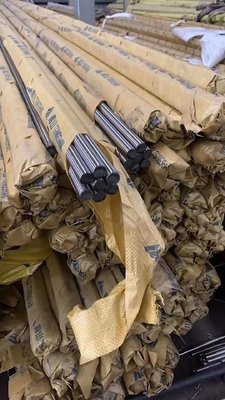

Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar 0
