MATERIAL CATEGORY: hardened and tempered steel
PRODUCT DESCRIPTION
Alloy structural steel is provided with higher yield strength, tensile strength, endurance strength, yield ratio (about 0.85 generally ) enough plasticity and toughness.
The concentration of alloy element of this kind of steel is quite high, mainly are corrosion resistant steel, heat resistant steel, wear resistant steel, and other special steels of physical and chemical properties. Alloy structural steel has preferable mechanical property than that of carbon structural steel, high performance of heat treatment especially.
The alloy is usually produced by EAF /VD /LF followed by electroslag refining (ESR) if necessary for special purpose.
Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different level according to the buyers' requirements.
Bars are usually supplied bright in the annealed condition, or bright annealing specially.
Final heat treatment - heat treatment / QT
MATERIAL SPECIFICATIONS
DIN EN 10083-2 (2006), DIN 17200 (1987)
CHEMICAL COMPOSITION (WEIGHT %)
C (％): 0.32 ~ 0.40
Si (％): ≤ 0.40
Mn (％): 0.50 ~ 0.80
P (％)≤: 0.035
S (％)≤: 0.035
Cr (％): 0.90 ~ 1.20
Mo (％): 0.15 ~ 0.30
Ni (％): 0.90 ~ 1.20
MECHANICAL PROPERTIES - HOT WORKING, HEAT TREATMENT AND HARDNESS
|Quenching |hot working temp./℃|First: 850
|quenching|hot working temp./℃|Second: —
|quenching|cooling medium: oil
|tempering|hot working temp./℃: 600
|tempering |cooling medium: water, oil
Tensile strength, |σb/MPa|≥: 980
Yield strength, |σs/MPa|≥: 835
Elongation, |δ5(％)|≥: 12.0
Reduction of area, |ψ(％)|≥: 55.0
Impact, |AKV/J|≥: 78
Hardness / HBS|≥: 269
TYPICAL APPLICATIONS
Alloy structural steels are widely used in the filed of ship, vehicle, airplane, guided missile, weapons, railway, bridges, pressure vessel, machine tools, mechanical components with a bigger sectional size and so on.
Mechanical gears, gear shaft, main axis, valve rod
Mechanical parts - connecting rod, bolt and nut
Multidiameter shaft
Pressure vessel, seamless pipe
PRODUCT PROFILE

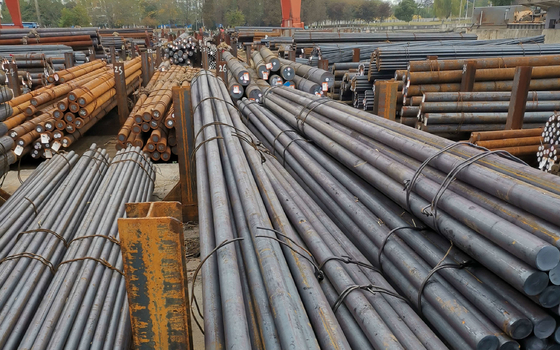

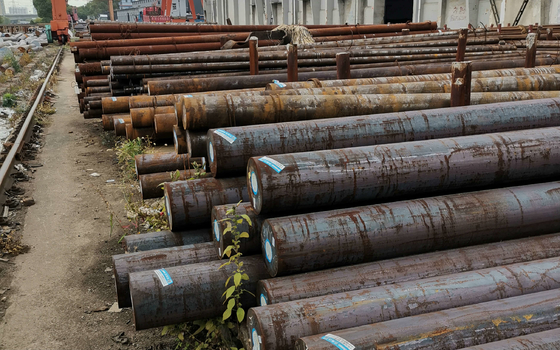

Round bar / Wire rod (Diameter): 5.5mm to 800mm
Square bar / Flat bar: 3mm to 1000mm
Plate / Steel strip: 0.1mm to 1000mm
Width: 8mm to 1200mm
Steel sheet: thickness 0.50 ~ 6.00mm, width 1000mm X length 1000/2000mm - Standard size
Length: random length or based on the customer's special requirement
Forged steel shape: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM
Pipes / Tubings: OD30 - 1200 mm, with wall thickness ranging from 15 to 350 mm
