Product Details:
|
| Width: | 600-2500mm | Grade: | 500 |
|---|---|---|---|
| Technique: | Hot Rolled | Type: | Steel Plate |
| Standard: | ASTM,AISI,JIS,DIN | Length: | 1000-12000mm |
| Special Use: | High-strength Steel Plate,Wear Resistant Steel | Thickness: | 0.5-100mm |
| High Light: | 500 Carbon Steel Plate,Carbon Steel Plate Wear Resistant |
||

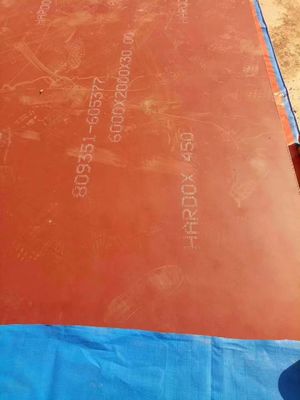

500 Sheet Laser Cutting High Strength And Abrasion Resistant Plate Wear Resistant Steel
| Size | : | 3mm ~ 120 mm |
| Width | : | 1450mm to 4050mm. |
| Length | : | 3000mm to 15000mm |
| Thickness | : | 3mm to 130mm |
| Applications | : | Cutting Edges, Grizzly bars, Buffer bins, Measuring bins and Skips |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 04/13/13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13)-32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.5 | 0.3 | 0.004 | 0.62 | 0.41 |
| (32)-40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 1 | 0.6 | 0.004 | 0.64 | 0.43 |
| (40)-80 | 0.3 | 0.7 | 1.6 | 0.025 | 0.01 | 1.5 | 1.5 | 0.6 | 0.004 | 0.74 |
| Grade | Mechanical Property | Charpy V Impact Test | |||
| HADOX® 500 | HBW Thickness/Mpa | Elongation | Degree | longitudinal | |
| 4-32MM | 470-530 | Min % | -40 | J | |
| (32)-80 | 450-540 | 10 | 40 | ||
