Nickel Alloy Hastelloy C4 C22 C276 Hollow Seamless Steel Pipe

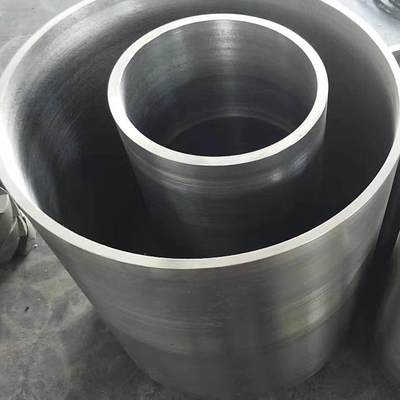

Large Image : Nickel Alloy Hastelloy C4 C22 C276 Hollow Seamless Steel Pipe

Product Details:

Place of Origin:	China
Brand Name:	Mittel
Certification:	SGS ISO MTC
Model Number:	Hastelloy C4

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	55 USD/KG
Packaging Details:	Wooden Pallet BOX
Delivery Time:	7 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	80000KGS

Contact Now

Nickel Alloy Hastelloy C4 C22 C276 Hollow Seamless Steel Pipe

Description

Grade:	Nickel Base Alloy	Application:	Industry,construction,deep-drawn,used In Chemical
Type:	Pipe	Elongation (≥ %):	40%
Ni (min):	Balance	Ultimate Strength (≥ Mpa):	DIN
Surface:	Polished,Black Or Bright,Polishing	Standard:	ASTM,DIN,EN,AISI
Material:	Hastelloy C22 C4 C276	Thickness:	1mm~30mm
Package:	Wooden Boxes Package
Highlight:	Alloy hastelloy c276 pipe , Seamless hastelloy c22 pipe , hastelloy c276 pipe

Hastelloy C4 Pipe and Tube Specification

SPECIFICATIONS : ASTM B622, B619, B626 / ASME SB622, SB619, SB626
STANDARD : ASTM, ASME and API
SIZE RANGE : 15"NB – 150"NB
OUTER DIAMETER : 1.250″ – 6.000″ (30-150mm)
WALL RANGE : 0.095″ – 1.000″ (.2.5-25mm)
SCHEDULE : SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
TYPE : Seamless / ERW / Welded / Fabricated / LSAW Pipes
LENGTH : Single Random, Double Random & Cut Length
FORM : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tube

Equivalent Grade

STANDARD	UNS	WNR.
HASTELLOY C4	N06455	2.4610

Chemical Composition

NI	MO	CR	FE	CO	MN	C	TI	SI	CU
65.0 min	14-17	14-18	3.0 max	2.0 max	1.0 max	0.01 max	0.7 max	0.08 max	0.5 max

Mechanical Properties

HASTELLOY GRADE	DENSITY	MELTING POINT	TENSILE STRENGTH RM N/MM2	YIELD STRENGTH RP0.2N/MM2	ELONGATION A5 %
C4	8.64 g/cm3	1350-1400 °C	783	365	55

Types of Hastelloy C4 Pipes and Tubes
Nickel Alloy N06455 Pipe Supplier	Alloys C-4 Tubings Exporters
Hastelloy C4 hot-finished seamless pipe	Hastelloy C4 alloy boiler tubes
ASTM B619 UNS N06455 Welded Square Pipes	C4 High-Temperature Alloys seamless Round Tubes
DIN 2.4610 Hastelloy Hydraulic Tubes	ASME SB622 Hastelloy C4 seamless Square Pipe
Hastelloy C4 ERW Pipe	Hastelloy Alloy C4 EFW Tubes
Alloy C4 rectangular Pipe	Hastelloy C-4 Superheater Tubes
Low-Temperature Services Hastelloy C4 Pipes	Hastelloy C4 LSAW Pipes & Tubes
