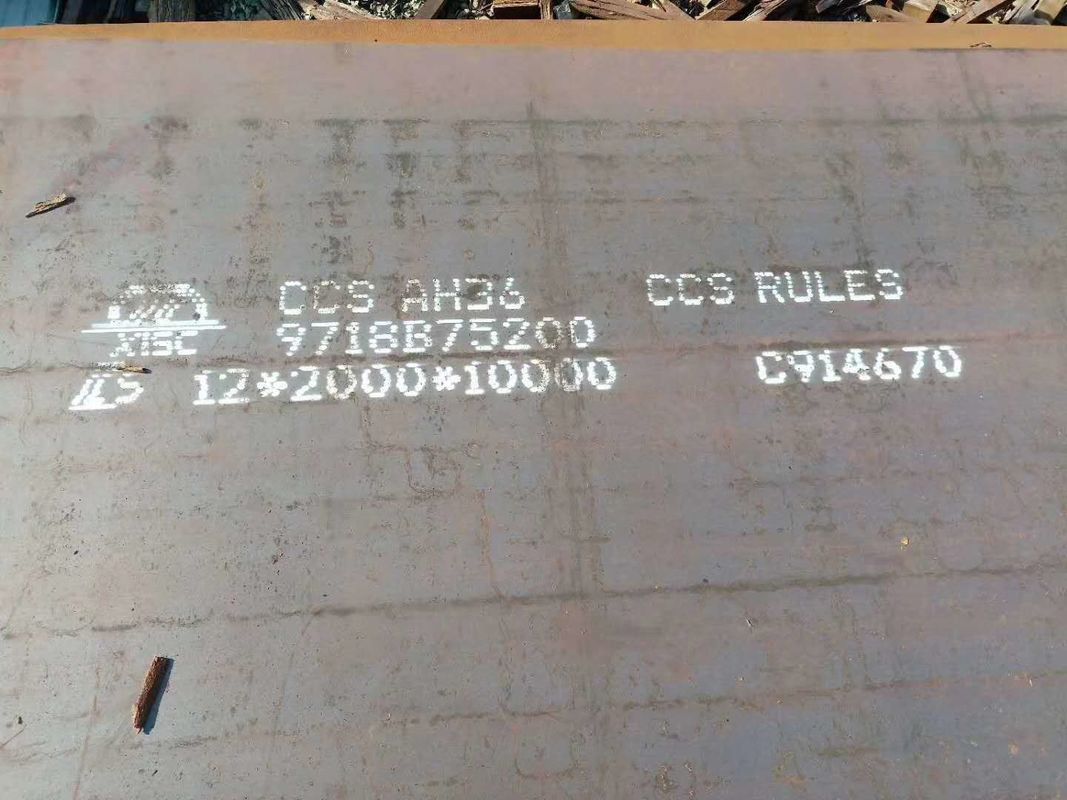

High Strength AH36 / DH36 / EH36 Shipping Steel Plate 1.5-100 Mm Thickness

Shipbuilding steel plate ABS Grade EH36 is mainly used to make ship cranes owning to its alloy elements and high strength property.When rolling ship steel plate ABS Grade EH36,low temperature impacting test shall be done under minus 40 centigree,about the impacting energy values,the end user can indicate it in their technical requirement list.For the rolling range of ABS Grade EH36 shipbuilding steel plate,the thickness within 6mm to 250mm,width from 1200mm to 4200mm,for some smaller sizes,Xinsteel would like to cut the normal size steel plate into special sizes as cutomers' demands.

Technical Requirements & Additional Services:
♦ High tension test
♦ Z-Test (Z15,Z25,Z35)
♦ Low temperature impacting test
♦ Ultrasonic test under ASTM A435,A577,A578
♦ Cetificated by ABS,LR,GL,BV,DNV,KR,NK,CCS,RINA
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ Shot blasting and Painting,Cutting and welding as per end user’s demands

► Mechnical property for ABS Grade EH36 shipbuilding structual steel:


Yield strength (≥Mpa)	Tensile strength (Mpa)	Elongation in ≥,%
355	490-620	200mm	50mm
		19	22

► Chemical composition for ABS Grade EH36 ship steel (Heat Analysis Max%)


Main chemical elements composition of ABS Grade EH36
C	Si	Mn	P	S	Al (acid) min.	Nb
0.18	0.10-0.50	0.90-1.60	0.035	0.035	0.015	0.02-0.05
V	Ti	Cu	Cr	Ni	Mo
0.05-0.10	0.02	0.35	0.20	0.40	0.08
