Product Details:
|
| Width: | 300-3000mm | Length: | 1000-12000mm |
|---|---|---|---|
| Thickness: | 3-100mm | Grade: | EH36 DH36 |
| Classification Society: | CCS LR BV GL | Surface: | Hot Rolled |
| High Light: | shipping plate,marine steel plate |
||
ABS EH36, ABS EH36 steel, ABS EH36 steel plate, ABS EH36 steel sheet, ABS EH36 shipbuilding steel price,ABS EH36 steel supplier and manufacturer.

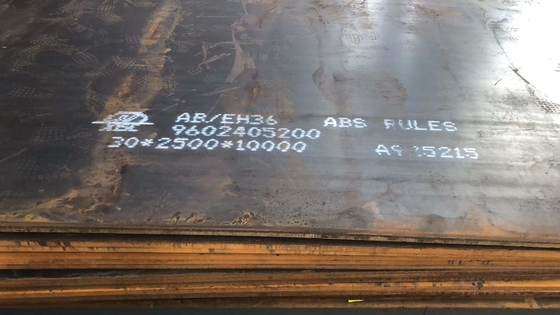

ABS EH36 Shipbuilding Steel Description:
ABS EH36 steel is a kind of high tensile strength marine steel. All of these steels have been engineered to be optimal long-lived shipbuilding steels.As with other grades of steel, they have a specific gravity of 7.8. The ABS EH36 grades have yield strength of 51,000 psi (355 MPa), and ultimate tensile strength of 71,000 - 90,000 psi (490-620 MPa).
ABS EH36 Shipbuilding Steel Application:
ABS EH36 Shipbuilding steel plates can be used for producing container and bulk cargo vessels as well as cruise ships, ferries and yachts. ABS EH36 Shipbuilding steel plates are mainly used for making the hull of ship building and ship repairing, the offshore oil drilling platform, the platform pipe joints and other components.
ABS EH36 Steel Grade Specification:
Thickness: 4mm to 260mm,
Width: 1200mm to 4000mm
Length: 3000mm to 18000mm.
ABS EH36 Shipbuilding Steel Chemical Composition:
| Grade | C % | Si % | Mn % | P % | S % | V % | AL % | Cr % |
| ABS Grade EH36 | 0.180 | 0.1-0.5 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.200 |
| Cu % | Mo % | Nb % | Ni % | Ti % | ||||
| 0.350 | 0.080 | 0.02-0.05 | 0.400 | 0.020 |
ABS EH36 Grade Ship Steel Mechanical Properties:
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Min Impact Energy | |
| ABS Grade EH36 | 8mm-50mm | Min 355Mpa | 490-620Mpa | 21% | -40 | 34J |
| 51mm-70mm | Min 355Mpa | 490-620Mpa | 21% | -40 | 41J | |
| 71mm-100mm | Min 355Mpa | 490-620Mpa | 21% | -40 | 50J | |
| The min impact energy is longitudinal energy | ||||||
Mittel is a professional company for offering ABS EH36 shipbuilding steel. Katalor Industry is a ABS EH36 steel exporter too. The ABS EH36 shipbuilding steel plates and sheets we made have been exported to many countries for ship building using.If you have any needs in ABS Grade EH36 steel plate price, please feel free to contact us.
