OD168.3 MM * 14mm Steel Seamless Tube DIN1.4922 X20CrMov11-1 L8000MM Alloy Steel Pipe

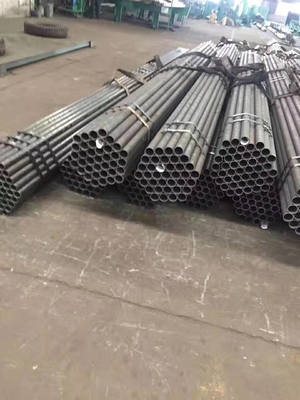

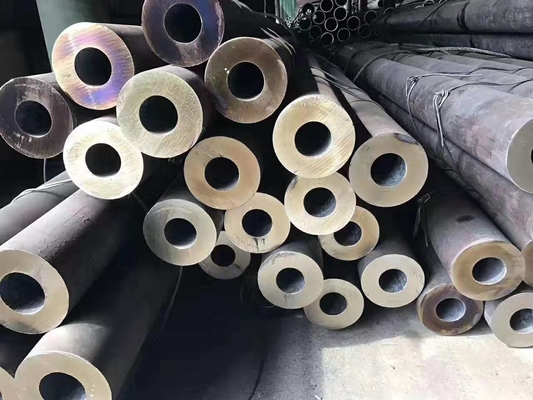

Large Image : OD168.3 MM * 14mm Steel Seamless Tube DIN1.4922 X20CrMov11-1 L8000MM Alloy Steel Pipe

Product Details:

Place of Origin:	China
Brand Name:	MITTEL
Certification:	SGS ISO MTC
Model Number:	DIN:1/4922 X20CrMov11-1

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	0.85 USD/KG
Packaging Details:	Wooden Box
Delivery Time:	14 Days
Payment Terms:	L/C, T/T
Supply Ability:	80000KGS

Contact Now

OD168.3 MM * 14mm Steel Seamless Tube DIN1.4922 X20CrMov11-1 L8000MM Alloy Steel Pipe

Description

Certification:	ISO9001-2000	Grade:	1.4922 X20CrMov11-1
Alloy Or Not:	Is Alloy	Technique:	Hot Rolled
Standard2:	DIN 1626	Thickness:	1.5 - 30 Mm
Application:	Structure Pipe	Outer Diameter(round):	13.7 - 1016 Mm
Length:	5.8-12m	Shape:	Round Shape
Highlight:	heavy steel pipe , structural steel pipes

X20CrMoV11-1, is a similar grade to X22CrMoV12-1, 1.4923 with a martensitic structure in the heat-treated state. Designed for pressure and high temperature applications up to 600 ℃ for devices used mainly in the power, oil and chemical industries.

Steel is mainly supplied in the form of hot-rolled boiler pipes, fittings and sleeves. In contrast to 23H12MNF, the above-mentioned grades shows much better and more stable strength properties in the normalized and tempered +NT conditions.

Steel can be classified as one of the heat-resistant grades.

Grade :

X20CrMoV11-1

Number:

1.4922

Classification:

Alloy special martensitic creep-resisting steel

Density:

7.7 g/cm ³

Standard:

EN 10302: 2008 Creep resisting steels, nickel and cobalt alloys

EN 10222-2: 2000 Steel forgings for pressure purposes. Ferritic and martensitic steels with specified elevated temperature properties

EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties

EN 10088-1: 2005 Stainless steels. List of stainless steels

Equivalent grades:

Go here

Mechanical properties of X20CrMoV11-1, 1.4922 acc. to EN 10216-2 in +NT condition

Tensile strength, R_m: 690 - 840 MPa
The yield point, R_p0,2: >490 MPa
Properties of samples tested longitudinally:
- Elongation, A:> 17%
- Impact resistance, KV_20℃: > 20 J
Properties of samples tested transversally:
- Elongation, A:> 14%
- Impact resistance, KV_20℃: > 20 J

Chemical composition % of steel X20CrMoV11-1 (1.4922): EN 10302-2008

According to EN 10088-1:2005: Si max =0.4; Mn min= 0.3 ; V min=0.2;

C	Si	Mn	Ni	P	S	Cr	Mo	V
0.17 - 0.23	max 0.5	max 1	0.3 - 0.8	max 0.025	max 0.015	10 - 12.5	0.8 - 1.2	0.25 - 0.35

OD168.3 MM * 14mm Steel Seamless Tube DIN1.4922 X20CrMov11-1 L8000MM Alloy Steel Pipe 0
