Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate

Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate
Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate

Large Image :  Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate

Product Details:
Place of Origin: China
Brand Name: Mittel
Certification: SGS ISO MTC BV
Model Number: UNS NS321 N10001
Payment & Shipping Terms:
Minimum Order Quantity: 50KGS
Price: 52 USD/KG
Packaging Details: wooden boxes package
Delivery Time: 14 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate

Description
Grade: Nickel Base Alloy Application: Industry,construction,deep-drawn,used In Chemical
Type: Nickel Plate Ni (min): Balance
Powder Or Not: Is Powder Ultimate Strength (≥ Mpa): Standard
Surface: Polished Product Name: Hastelloy UNS NS321 N10001 Stainless Steel Plate
Shape: Square Standard: ASTM,DIN,EN,AISI
Material: UNS NS321 N10001 Size: According To Client's Requirements
Condition: Cold Rolled Thickness: 1mm~30mm
Package: Wooden Boxes Package
High Light:

hastelloy c276 plate

,

hastelloy sheet

Hastelloy B (UNS N10001,W.Nr.2.4800,S-NiMo30) plate,strip,wire rods,bar,wire

(1) control of iron and chromium in the lowest content, prevent the generation of β phase Ni4Mo.
(2) The excellent corrosion resistance to reduction environment.Sulfuric acid anti medium concentration
(3) excellent and many non oxidative acid corrosion.
(4) very good resistance to chloride ion reduction to stress corrosion cracking (SCC).
(5) Capacity of excellent resistance to various organic acid corrosion.

HastelloyB (UNS N10001/W.Nr.2.4800 /S-NiMo30) CHEMICAL COMPOSITION

% C Mn Si S P Cu V Fe
Min             0.2 4
Max 0.05 1 1 0.03 0.03   0.4 6
% Co Mo Zr Cr Ni Al Ti Nb
Min   26
Max 2.5 30   1

HastelloyB (UNS N10001/W.Nr.2.4800 /S-NiMo30) Heat treatment

Solution treatment:1060℃-1080℃,Faster air cool or water cool

HastelloyB (UNS N10001/W.Nr.2.4800 /S-NiMo30) MECHANICAL PROPERTIES

Density Melting Heat treatment Tensile strength Yiled strength Elongation Reduction of area Brinell Hardness
g/cm3 σb/MPa σp0.2/MPa σ5 /% φ/ % HBW
9.2 1330 Solution treatment ≥745 ≥325 ≥30
1380

HastelloyB (UNS N10001/W.Nr.2.4800 /S-NiMo30) Spec.No.

BarForging:ASTM B335,GB/T15007 , YB/T5264
Plate:GB/T15009,GB/T15010,ASTM B333
Tube:GB/T15011,ASTM B622,ASTM B619,ASTM B626

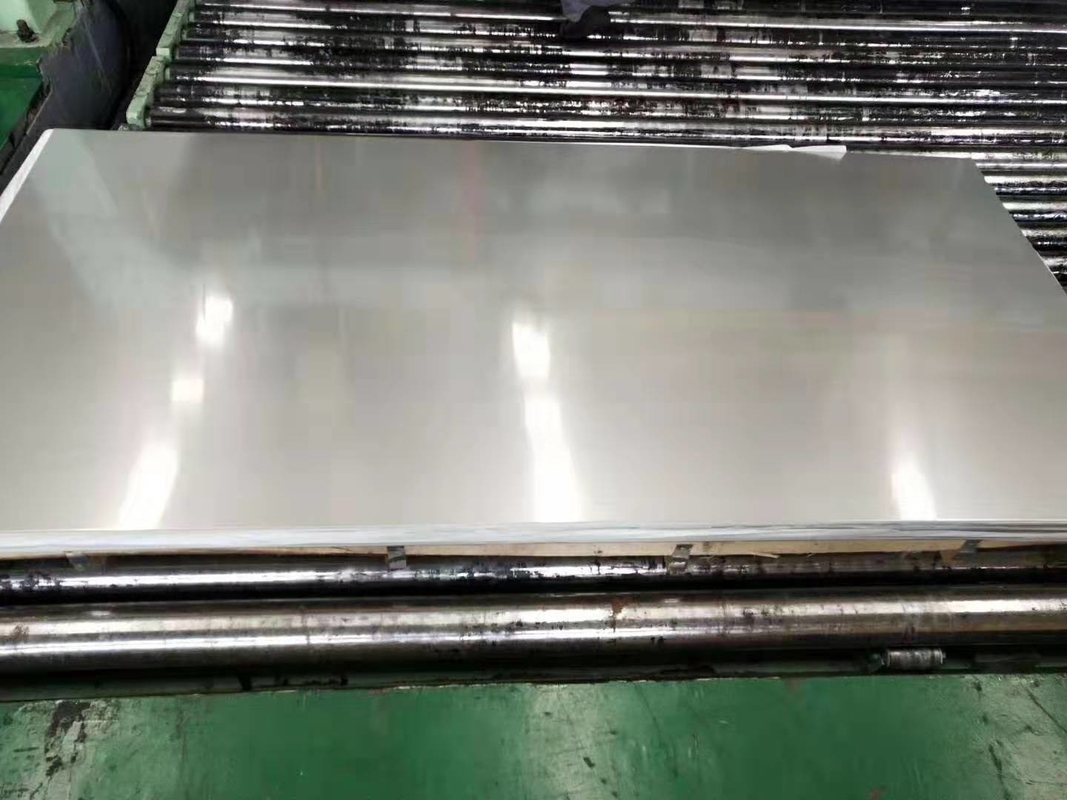

Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate 0Hastelloy B UNS N10001 (2.4810) Nickel Molybdenum Alloy UNS NS321 N10001 Plate 1
