Product Details:
|
| OD: | 12.7-219mm | Surface: | Mirror |
|---|---|---|---|
| Length: | 6m | Type: | Welded Steel |
| Grade: | 201 | Use: | Decoration |
| High Light: | stainless steel pipe astm,stainless steel pipe welding standards |
||

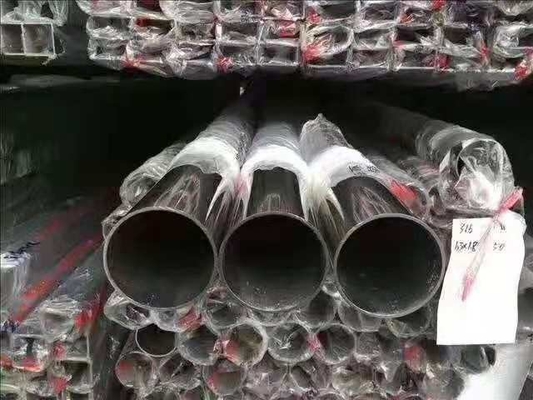

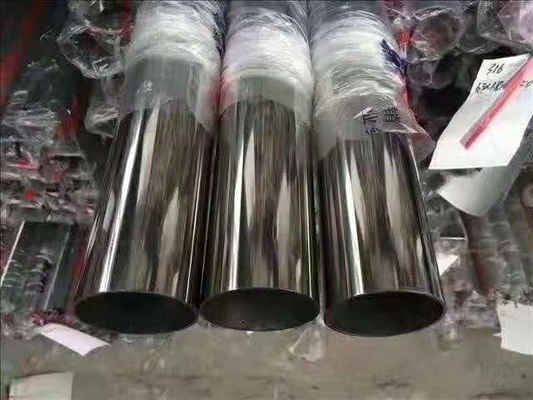

201 Stainless Steel Welded Tube ASTM A269 201 INOX Tube Mirror Finish
Quick Detail:
Welded Stainless Steel tube As per ASTM A249/A269,polished, for fluid and decorative
1 Standard: ASTM A249/269
2 Material:304,316,201,202, 316L,430
3 OD: 6mm-101.6mm
Wall: 0.6mm-3mm
4 Surface:polished
| Name | Stainless steel welded tube | |||||
| Standard | ASTM A554, A312, A249, A269 and A270,A688 | |||||
| Material Grade | 304,316,201,202, 316L,430 | |||||
| Size Range | 20x10mm--100x50mm,10x10mm-100x100mm, 9.53-101.6mm, we can also accept sizes above 101.6mm | |||||
| Thickness | 0.3mm - 3.0mm | |||||
| Length | 6m or as customers' request | |||||
Tolerance |
a) Outer Diameter: +/- 0.2mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 600G Mirror finish |
|||||
| Application | Handrail,weldmesh screen,door,window, balcony,fence,furniture,etc | |||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
Chemical Composition of Material |
Composition Material |
201 | 202 | 304 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.35 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | <90 | ||
The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.
Our Advantages:
1, Direct material sourcing from Bao Steel, ZPSS, TISCO.
2, More than 5 processing mills to produce the welded titanium tube for us. And also we own a steel tube mill.
3, Strong business cooperation with Bao Steel and Shanghai Minmetals.
4, More than usd$50,000,000 annual turnover.
