AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate

Certification
Good quality Stainless Steel Plates for sales
Good quality Stainless Steel Plates for sales
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate

China AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate supplier
AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate supplier AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate supplier

Large Image :  AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate

Product Details:

Place of Origin: CHINA
Brand Name: TISCO
Certification: SGS ISO
Model Number: 314

Payment & Shipping Terms:

Minimum Order Quantity: 500kgs
Price: 5.85 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50 Tons
Contact Now
Detailed Product Description
Width: 1000-2000mm Length: 2000-6000mm
Thickness: 0.5-3mm Condition: Hot Rolled

Product
Name
China Suppliers aisi 314 no.1 Stainless Steel Sheet
Material Stainless Steel Sheet/Plate
Grade 200 Series:201/202
300 Series:301/302/303/304/304 L/304 N/309/309 S/310/316/316 L/321/347
400 Series: 403/408/409/410/416/420/430/431/440/440A/440B/440C/439/443/444
600 Series: 610/620/630
900 Series: 904L
Size width:1000-2000mm
Length: 1000-6000mm
Thickness: 0.15mm-3.00mm (CR) 4.00mm-200mm (HR)
Surface
Treatment
Drawing,Polishing, Anodizing,Coating
Surface
Characteristics
NO.1,NO.2D,NO.2B,BA,NO.3,NO.4,NO.240,NO.320,NO.400,HL,NO.7,NO.8,BA/2B
Production
Method
Cold rolling / Hot rolling / High Temperature resistance
Standard GB/T6893-2000,GB/T4437-2000,ASTM B210,ASTM B241,ASTM B234,JIS H4080-2006,etc
Technique Cold rolling / Hot rolling
Inspection ISO,SGS,BV and so on.
Tolearnce 0.01-0.15mm
Application Bridge steel plate / boiler plate / shipbuilding steel plate / armored steel plate /
automobile steel plate /roof plate / structural steel plate / electrical steel sheet
(silicon steel sheet) / spring steel plate /
solar special board (sea Rui steel)
Packaging 1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products
Delivery 7-25days orAccording to the product
Payment L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements
payments for offline orders.
Port Shanghai,Ningbo,Shenzhen,Tianjing,Xianggang,Xiamen,Fuzhou, Etc..
Urface finish Thickness (mm) Width(mm) Length (mm)
2A 0.50 - 6.35 35 - 2032 0 - 14000
Bright-pickled 0.20 - 4.00 35 - 1530 0 - 14000
Brushed or dull polished 0.20 - 3.50 35 - 1530 0 - 14000
Cold rolled, bright annealed 0.20 - 3.50 18 - 1530 0 - 12000
Cold rolled, heat treated 0.40 - 5.00 35 - 1500 0 - 12000
Cold rolled, heat treated, mech. desc. pickled 0.33 - 6.35 18 - 2070 0 - 99999
Cold rolled, heat treated, pickled 0.25 - 6.50 35 - 1600 0 - 14000
Cold rolled, heat treated, pickled, skin passed 0.25 - 8.00 18 - 2032 0 - 14000
Cold rolled, heat treated, skin passed 0.33 - 3.58 18 - 1524 400 - 5000
Ground 0.20 - 6.35 18 - 2070 0 - 14000
Patterned 0.25 - 3.50 350 - 1530 0 - 12000
Profile rolled 0.40 - 1.50 400 - 1250 400 - 8000
Satin finish 0.50 - 4.00 18 - 1550 0 - 99999
Surface coated 0.50 - 3.00 350 - 1500 425 - 12000
Work hardened 0.25 - 6.00 18 - 1530 0 - 14000
Comparison Table Of Domestic And Foreign Stainless Steel Grade
NO. CHINA
GB1220
JAPAN
JIS
SUA UK
BS970 BS1449
GERMANY
DIN17440
DIH17224
FRANCE NFA35-572
NFA35-576-582
NFA35-584
ANSI ASTM
1 1Cr18Mn8Ni5N SUS202 202 S20200 284S16 X12CrNi177 SZ12CN17.07
2 1Cr17Ni7 SUS301 301 S30100 301S21 X12CrNil88 Z10CN18.09
3 1Cr18Ni9 SUS302 302 S30200 302S25 X5CrNi189 Z6CN180.9
4 0Cr18Ni9 SUS304 304 S30300 304S15 X2CrNi189 Z2CN18.09
5 00Cr19Ni10 SUS304L 304 S30403 304S12   Z5CN18.09A2
6 0Cr19Ni9N SUSHI   304N X2CrNiN1810 Z2CN18.10N
S30451
7 00Cr18Ni10N SUSLN     X5CrNi1911 Z8CN18.12
8 1Cr18Ni12 SUS305 305 S30500 305S19
9 0Cr23Ni13 SUS309S 309S S30908
10 0Cr25Ni20 SUS310S 310S S31008   X5CrNiMo1812 Z6CND17.12
11 0Cr17Ni12Mo2 SUS316 316 S3160 316S16 X2CrNiMol812 Z2CND17.12
12 00Cr17Ni14Mo2 SUS316L 316L S31603 316S12
13 0Cr17Ni12Mo2N SUS316N 316N S31651
14 00Cr18Ni14Mo2Cu2 SUS316JIL
15 0Cr19Ni13Mo3 SUS317 317 S31700 317S16 X2CrNiMo1816 Z2CN19.15
16 00Cr19Ni13Mo3 SUS317L 317L S31703 317S12 X10CrNiTi189
17 1Cr18Ni9Ti SUS321 321 S32100 321S12 X10CrTi189 Z6NT18.10
0Cr19Ni10Ti 321S20
18 0Cr18Ni11Nb SUS347 347 S34700 347S17 X10CrNiNb189 Z6NNB18.10
19 0Cr13AI SUS450 405 S40500 405S17 X71CrAI13 Z6CA13
20 1Cr17 SUS430 430 S43000 430S15 X8Cr17 Z8C17
21 00Cr27Mo SUSXM27 Xm27 S44625     Z01CD26.1
22 1Cr12 SUS403 403 S40300 430S17
23 1Cr13 SUS410 410 S41000 430S21 X10Cr13 Z12C13
24 1Cr13 SUS410S 410S 430S17 X7Cr13 Z6C13
25 1Cr13Mo SUS410J1
26 2Cr13 SUS420J1 420 S42000 430S37 X20Cr13 Z20C13
27 3Cr13 SUS420J2   430S45   Z15CN16.02
28 1Cr17Ni2 SUS431 431 S43100 430S29 X22CrNi17
29 7Cr17 SUS440A 440 S44002
30 8Cr17 SUS440B 440 S44003     Z100CD17
31 9Cr18 SUS440C 440C   X105CrMo17 Z6CNU17.04
32 0Cr17Ni4Cu4Nb SUS630 603 S17400     Z8CNA17.7
33 0Cr17Ni7AI SUS631 631 S17700   X7CrNiAI177

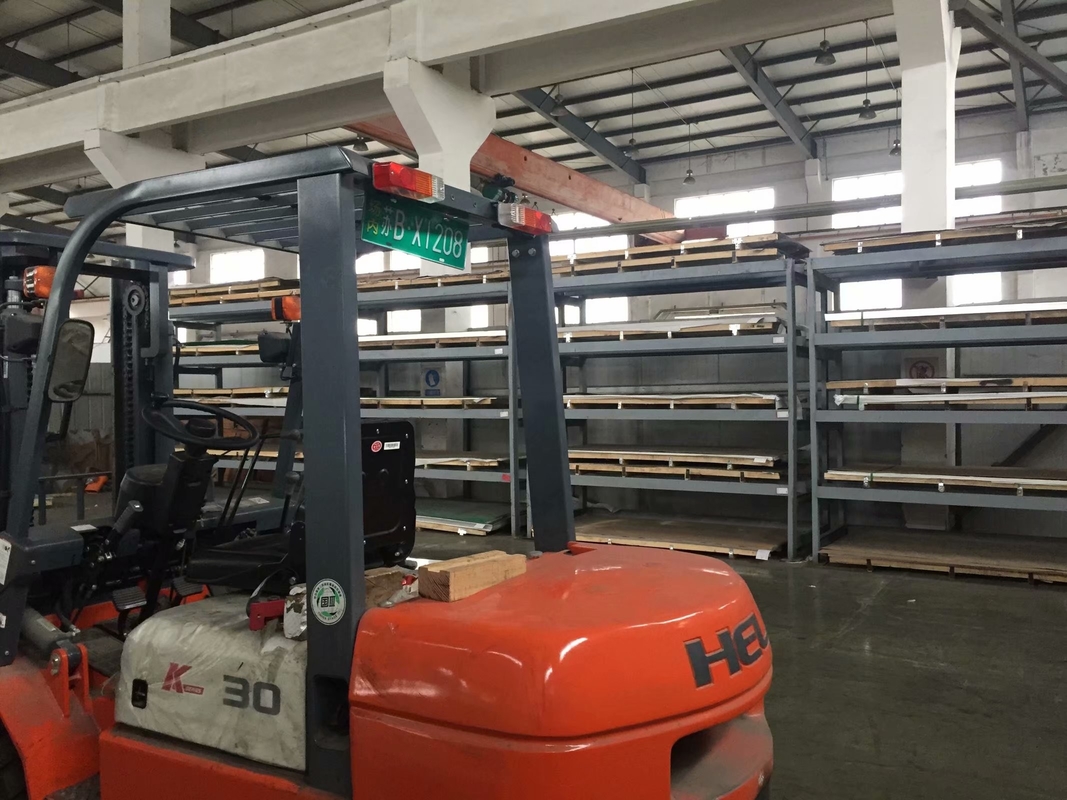

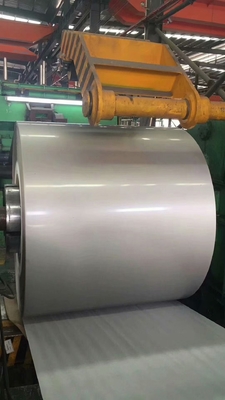

Product Show:

AISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel PlateAISI314 S31400 Data Stainless Steel Sheet Metal , Hot Rolled Stainless Steel Plate



Grade : X15CrNiSi25-21
Number: 1.4841
Classification: Austenitic heat-resisting steel
Density: 7.9 g/cm ³
Standard:
EN 10095: 1999 Heat Resisting Steels and Nickel Alloys
EN 10088-1: 2005 Stainless steels. List of stainless steels
Equivalent grades: 1.4841





Chemical composition % of steel X15CrNiSi25-21 (1.4841): EN 10095-1999

C Si Mn Ni P S Cr N
max 0.2 1.5 - 2.5 max 2 19 - 22 max 0.045 max 0.015 24 - 26 max 0.11



Mechanical properties of steel X15CrNiSi25-21 (1.4841)



Rm - Tensile strength (MPa) (+AT) 550-750



Rp0.2 0.2% proof strength (MPa) (+AT) 230



A - Min. elongation at fracture (%) (+AT) 28-30



Brinell hardness (HB): (+AT) 223





Properties of steel X15CrNiSi25-21 (1.4841)

Maximum application temperature for air T= 1150 ° C



Equivalent grades of steel X15CrNiSi25-21 (1.4841)

Warning! Only for reference

EU
EN
USA
-
France
AFNOR
Poland
PN
Russia
GOST
X15CrNiSi25-21
314
Z15CNS25-20
H25N20S2
20KH25N20S2
