Product Details:
|
| OD: | 10-350mm | Length: | 6000mm |
|---|---|---|---|
| Grade: | 38CrMoAl | Surface: | Black And Bright |
| Delivery Condition: | Annealing Or Q+T | Heat Treatment: | Hot Rolled |
| High Light: | forged steel round bar,carbon steel round bars |
||

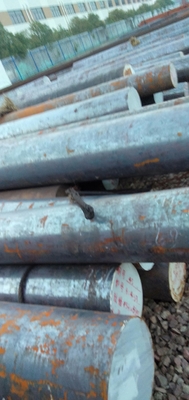

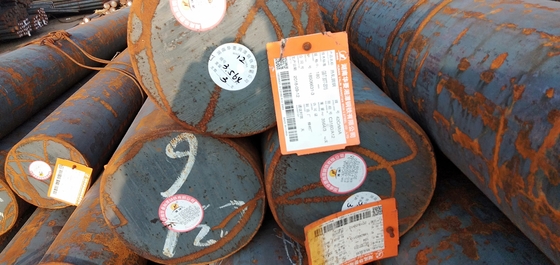

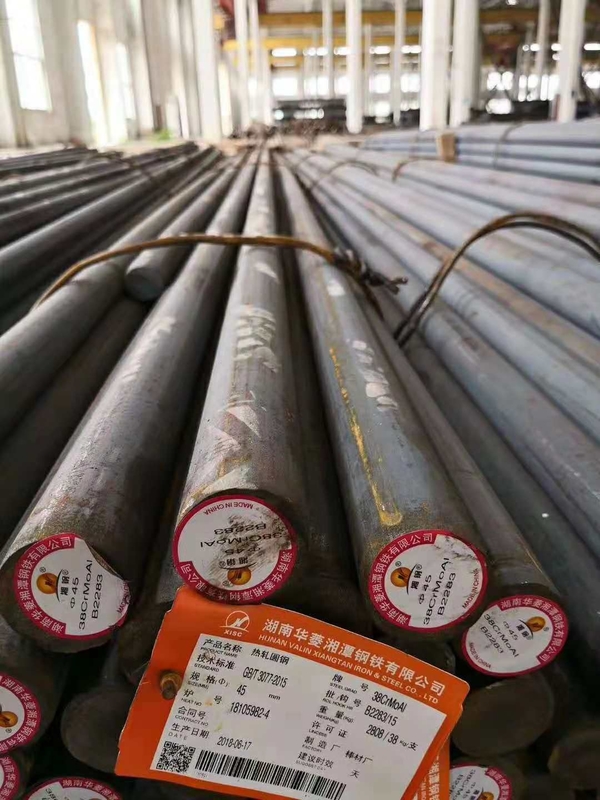

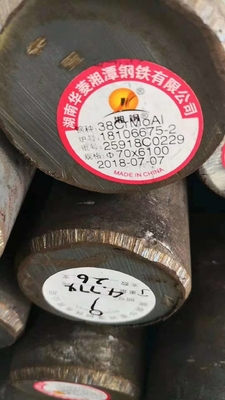

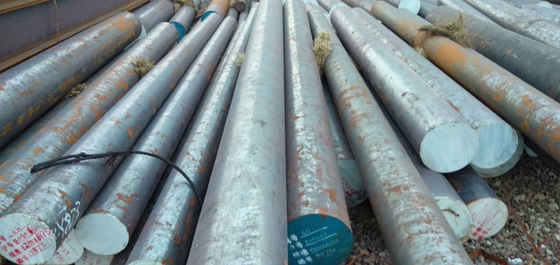

38CrMoAl En41B Hot Rolled Steel Bar JIS SACM645 DIN 41CrAlMo7/ 34CrAlMo5
Products Name: Mould Steel
MITTEL Steel Deals in different types of our advantage products include mould steel and Minerals & Metallurgy products.
Similar Grade
| GB | AISI | DIN | JIS | EN | TOCT | ISO | BS | UNS |
| 38CrMoAl | 41CrAlMo7/ 34CrAlMo5 | SACM645 | 38X2MЮA(38XMЮA) | 41CrAlMo74 | 905M39/ 905M31 |
Chemical Composition
| C | Si | Mn | P | S | Cr | Mo | Al |
| 0.35-0.42% | 0.20-0.45% | 0.30-0.60% | ≤0.035% | ≤0.035% | 1.35-1.65% | 0.15-0.25% | 0.70-1.10% |
Delivery Condition
Annealing or Q+T
Mechanical properties
Tensile Strength σb≥980 MPA
Yield Strength σs≥835 MPA
Elongation δ5≥14%
Impact αkv (J/cm2)≥71
Sizes
Round bar: Diameter(mm) Max 800mm; Length(mm) Max 12000mm.
Plate: Thickness(mm) Max 800mm; Width(mm) Max 2200mm; Length(mm) Max 12000mm.
Min.Order Quantity:5 Ton/Tons Our MOQ is flexible
Supply Capacity:5000 Ton/Tons per Month
or based on the clients' demand
Port:Shenzhen
Payment Terms:L/C,D/P,T/T
Packaging & Delivery
In seaworthy packing: 20ft:GW 28T; (5.80M*2.13M*2.18M); 40ft:GW28T; (11.8M*2.13M*2.18M) or based on your order
Shipped in 15 days after payment
Surface treatment:black/polished/machined
Technology:hot rolled/forged/cold drawn
Heat treatment:annealing/Q+T
