Product Details:
|
| Thickness: | 0.5-6mm | Width: | 1000-2000mm |
|---|---|---|---|
| Length: | 2000-12000mm | Surface: | 2B BA Mirror NO.4 |
| Type: | Cold Rolled | Condition: | Sheet |
| Highlight: | stainless steel panels,stainless steel plate |
||

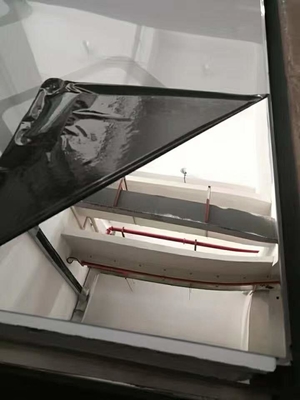

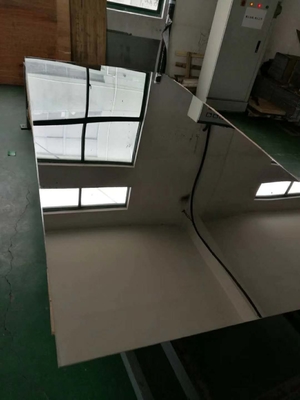

Mirror Etched Designer 304 Stainless Steel Decorative Sheet For Elevators Manufacturing
Main Specification:
| Description | Cold Rolled Stainless Steel Sheet |
| Series | 300Series |
| Grade | 301 304 316L 309 310S etc |
| Thickness | 0.3-3.0mm |
| Finish | HL |
| Normal Size | 1000*2000mm,1219x3048mm,1219x2438mm,1219x3500mm |
| Standard | JIS ASTM EN |
| Grade | Prime |
| Country of Origin | made in China |
| Payment terms | by T/T or L/C |
| Packaging | Seaworthy standard export package with pallet |
| Shipping date | 15-45dd |
| Shipping terms | FOB CFR CIF etc. |
1. Surface Definition:
HL(hair line): Polished with abrasive belt of grit#150-#320 on the No.4 finish and has continuous streaks, mainly used as building's ornaments,elevators,door of building,frontal plate etc.
2. Polishing Machine
1) Oil polishing machine for whole coils ( single side face or two sides face)
2) Dry polishing machine for cut to length sheet ( single side face or two sides face)
3. Main applications:
Home appliance outside surface
Elevator panel
Handrail surface
Kitchenwares
Reference Table :
| Grade | Main Chemical Composition % | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| SUS301L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 6.00~8.00 | 16.00~18.00 | |
| SUS304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | |
| SUS304J1 | 0.08 | 1.70 | 3.00 | 0.045 | 0.03 | 6.00~9.00 | 15.00~18.00 | |
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00~12.00 | 18.00~20.00 | |
| SUS304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00~13.00 | 18.00~20.00 | |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00~15.00 | 22.00~24.00 | |
| 310S | 0.08 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00~22.00 | 24.00~26.00 | |
| SUS316 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS317L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 11.00~15.00 | 18.00~20.00 | 3.00~4.00 |
FAQ:
Q: How about the delivery time?
A: Generally it takes 15-35 days to make shipment after definition of P.O. and receipt of down payment or L/C.
Q:What’s your shipping terms?
A:,FOB,CFR,CIF would be preferred. In case of payment L/C, we accept CIF/CFR only.
Q:How about your payment terms?
A: As general rule. by T/T, 20% down payment after PO, the balance before shipment. Or full payment byirrevocable L/C at sight.
Q: Could you provide with sample free?
A: YES.We could. but airfreight for samples would at customers charge.
Q:How about MOQ?
A:It depends. Generally we suggest the MOQ is 1x20ft for easy shipment arrangement.but small trail order will be accepted.
Q: Which is your main overseas market?
A: our main markets is Korea, South East Asia, Middle East , North America, Russia, West Europe, South America,etc.
Q Can we pay a visit to factory before placement of order?
A: Certainly! You are warmly welcome to our factory at your convenience!
![]()
![]()
