|Surface:||2B BA Bright||Condition:||Annealed|
hastelloy c276 plate,

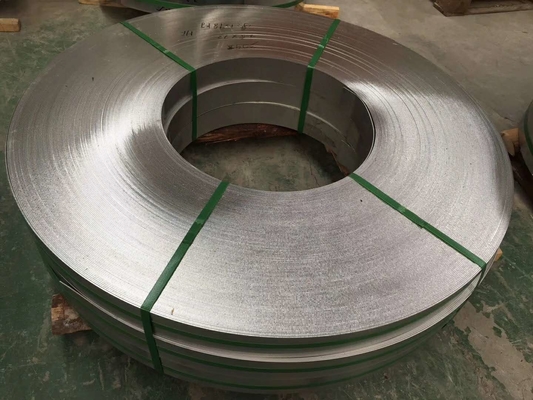

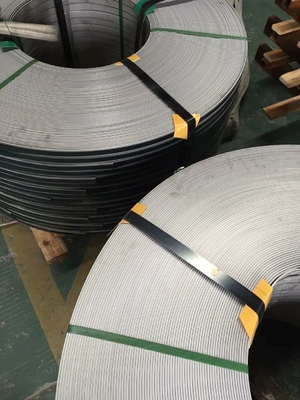

Hastelloy C2000 Annealed Coil Thk0.25-3mm ASTM B575 Hastelloy c2000 Strip Coil
This alloy was developed to broaden the application range of one alloy. With the addition of Copper to the Nickel-Chromium-Molybdenum system, Hastelloy C-2000 is resistant to an extensive range of corrosive chemicals, including sulphuric, hydrochloric and hydrofluoric acids. The combination of Molybdenum and Copper provide excellent corrosion resistance to reducing media, while the high Chromium content gives good oxidising resistance.
|Chemical Composition||Specifications||Designations||Key Features||Typical Applications|
|Developed to resist corrosion in a wider range of media
Resistant to an extensive range of corrosive chemicals including sulphuric, hydrochloric & hydrofluoric acids
Superior pitting resistance and crevice corrosion resistance to Hastelloy C-276
Excellent corrosion resistance to reducing media
Good oxidising resistance
|Density||8.5 g/cm³||0.307 lb/in³|
|Coefficient of Expansion||12.4 μm/m °C (20 – 100°C)||6.9 x 10-6 in/in °F (70 – 212°F)|
|Modulus of Rigidity||79 kN/mm²||11458 ksi|
|Modulus of Elasticity||206 kN/mm²||29878 ksi|
|Heat Treatment of Finished Parts|
|Condition as supplied by Alloy Wire||Type||Temperature||Time (Hr)||Cooling|
|Annealed or Spring Temper||Stress Relieve||400 – 450||750 – 840||2||Air|
|Condition||Approx. tensile strength||Approx. operating temperature|
|Annealed||700 – 1000||102 – 145||-200 to +400||-330 to +750|
|Spring Temper||1300 – 1600||189 – 232||-200 to +400||-330 to +750|
The above tensile strength ranges are typical. If you require different please ask.
Common Trade Names: Hastelloy C-2000, Alloy C-2000.
Hastelloy C-2000 UNS N06200, Mostversatile, corrosion resistant alloy with excellent resistance touniform corrosion in oxidizing or reducing environments. Excellentresistance to stress corrosion cracking and superior resistance tolocalized corrosion as compared to C-276 alloy.
The nickel-chromium-molybdenum(Ni-Cr-Mo) C-type alloys have a long history of use in the ChemicalProcess Industries and are known for their versatility. Not only do theyresist all acids (especially hydrochloric, sulfuric, and hydrofluoric)over large temperature ranges, but they also resist the insidious typesof attack induced by chlorides and other halide solutions, specificallypitting, crevice attack, and stress corrosion cracking.
