ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet

ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet
ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet

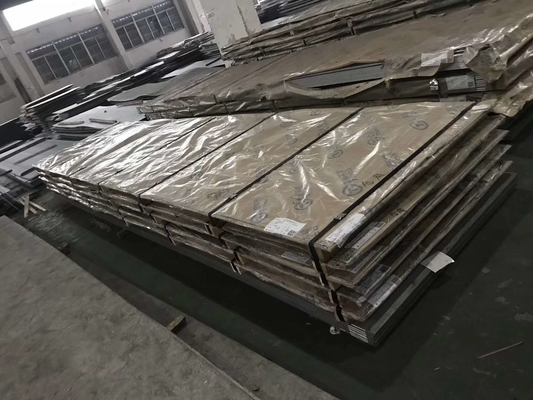

Large Image :  ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet

Product Details:
Place of Origin: China
Brand Name: TISCO BAO STEEL ZPSS
Certification: SGS ISO
Model Number: 321
Payment & Shipping Terms:
Minimum Order Quantity: 2 Tons
Price: 2650 USD/Ton
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Tons

ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet

Description
Thickness: 0.5-100mm Width: 1000-2000mm
Length: 1000-12000mm Surface: 2B NO.1
Type: Hot Rolled Cold Rolled
High Light:

stainless steel plate

,

stainless steel panels





ASTM A240 AISI 321 Stainless Steel Sheet X10CrNiTi189 Inox Sheet

  • AMS 5510
  • AMS 5645
  • UNS S32100
  • ASTM A 167
  • PWA-LCS
  • GE-S400/1000
  • RR SABRe Edition 2
  • DFARS Compliant

Common Trade Names

  • ATI 321 (™ Allegheny Technologies)

Common Applications of 321 Stainless Steel

  • Aircraft exhaust stacks
  • Manifolds
  • Chemical processing equipment
  • Welded equipment
  • Jet engine parts

Inventory Size Range

  • Sheet : 0.011" - 0.130"
  • Bar : 0.375" - 9.000"
  • Hex Bar : 0.4375" - 1.125"
  • Plate : 0.250"

Please contact us for more details.

The technical data provided is for information only and not for design purposes. It is not warranted or guaranteed.

321 Chemical Composition



Element Maximum Unless Range is Specified
321 347
Carbon 0.08 0.08
Manganese 2.00 2.00
Phosphorus 0.045 0.045
Sulfur 0.030 0.030
Silicon 0.75 0.75
Chromium 17.00-19.00 17.00-19.00
Nickel 9.00-12.00 9.00-13.00
Columbium+Tantalum - 10xC min to 1.00 max
Titanium 5x(C+N) min to 0.70 max -
Nitrogen 0.10 -
Iron Balance Balance



321 Physical Properties


Grade Density Modulus of Elasticity in Tension Melting Range
g/cm3 lb/in3
321 7.92 0.286 28 x 106 psi
193 GPa
1398-1446°C
2550-2635°F
347 7.96 0.288 28 x 106 psi
193 GPa
1398-1446°C
2550-2635°F



Mean Coefficient of Linear Thermal Expansion

Temperature Range Coefficients
°C °F cm/cm/°C in/in/°F
20-100 68-212 16.6 x 10-6 9.2 x 10-6
20-600 68-912 18.9 x 10-6 10.5 x 10-6
20-1000 68-1832 20.5 x 10-6 101.4 x 10-6



Thermal Conductivity

Temperature Range W/m·K Btu · in / hr · ft2 · °F
°C °F
20-100 68-212 16.3 112.5
20-500 68-932 21.4 147.7



Specific Heat

Temperature Range J/kg K Btu/lb · °F
°C °F
0-100 32-212 500 0.12

Magnetic Permeability

  • H/m Annealed
  • 1.02 Max

Electrical Resistivity

Temperature Range microhm·cm
°C °F
20 68 72
100 213 78
200 392 86
400 752 100
600 1112 111
800 1472 121
900 1652 126

Mechanical Properties and Yield Strength of 321



Property Type 321 Type 347
Yield Strength, 0.2% Offset
psi
MPa
30,000
205
30,000
205
Ultimate Tensile Strength,
psi
MPa
75,000
515
75,000
515
Percent Elongation in 2 in. or 51 mm 40.0 40.0
Hardness, Max.,
Brinell (Plate)
RB (Sheet & Strip)
217
95
201
92



ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet 0ASTM A240 AISI 321 Stainless Steel Plate X10CrNiTi189 Inox Stainless Steel Data Sheet 1
