Product Details:
|
| Grade: | 2Cr12MoV | Wdith: | 10-2000mm |
|---|---|---|---|
| Length: | 20-6000mm | Thickness: | 0.5-20mm |
| Type: | Hot Rolled And Cold Rolled | ||
| High Light: | stainless steel metal sheet,stainless steel panels |
||
2Cr12MoV DIN 1.4923 X22CrMoV12-1 ESR Cold Rolled Stainless Steel Sheet 2.5*150*1200mm
2Cr12MoV DIN 1.4923 X22CrMoV12-1 ESR Cold Rolled Stainless Steel Sheet 2.5*150*1200mm
Stainless steel sheets & plates DIN X22CrMoV12-1 ( EN 1.4923 )
Chemical composition ( average weight % )
| Grade | C | Si | Mn | Cr | Mo | Ni | V |
| W.-Nr. 1.4923 ( DIN X22CrMoV12-1 ) | 0.22 | 0.25 | 0.70 | 11.40 | 0.95 | 0.70 | 0.30 |
Applications
Components featuring elevated high temperature strength for use in thermal engines and power plants, such as
turbine blades, turbine discs, screws, bolts, pins and shafts.
Heat treatment
Annealing
730 - 780°c / cooling in furnace
Stress relieving
600 - 680°c / cooling in furnace
Hardening
1020 - 1060°c / Oil, air
Tempering
I ... 700 - 780°c / Air
II ... 670 - 750°c / Air

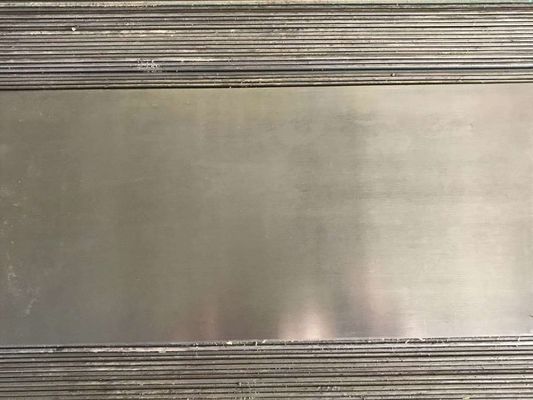

picture for Grade W.-nr. 1.4923 ( DIN X22CrMoV12-1 ) stainless steel sheets, cold rolled, annealed, 1.6*250*600mm
DIN X22CrMoV121/1.4923 17240 stainless steel
High temperature resistant stainless steel
chemical component,
C 0.18-0.24
Si 0.18-0.24
Mn 0.40-0.90
P ≤ 0.025
S ≤0.015
Cr 11.0-12.50
Ni 0.30-0.80
Mo 0.80-1.20
V 0.25-0.35
2 Application field
Stainless steel bars are widely used in stainless steel stamping parts, stainless steel tensile equipment, stainless steel decorative materials, electronic parts, stamping parts, oil chemical industry packing, auto parts, fasteners, door hinge, bolt, shaft, cold bend section steel, rail slides, medical apparatus and instruments, etc.
High strength and resistance to intergranular corrosion and chloride stress corrosion is improved obviously. Stainless steel has great corrosion performance.
Product Sales Information:
| Material | 1.4923 stainless steel |
| Size |
Diameter:20mm-1000mm Length:500mm-6000mm |
| Origin place | Made In China |
| Delivery Condition | Hot rolled,cold drawn,forged |
| Surface require | Black,grinding,bright,polish |
| Heat treatment | Quenched,Tempered,annealed |
| Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
| Delivery time | In 10-50 days |
| Trade Term | EXW,FOB,CIF |
| Payments | T/T or L/C at sight |
| Port | China main Port,such as shanghai,Dalian,Shenzhen port. |
| MOQ | 1 Ton |
Company Main Products:
| Alloy Steel |
5140,5115,5120,5130,5145,4118,4130,4135,6150,5115,4142,4130,4118,6150,4140,4720,4320 ,E9310,8620,4340 |
| Tool Steel |
H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2 |
| Bearing Steel | GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50 |
| Spring Steel |
9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159 |
| Stainless Steel |
321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,201,202,301,1.4923 |
