1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength

China 1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength supplier
1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength supplier 1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength supplier

Large Image :  1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength

Product Details:

Place of Origin: China
Brand Name: TISCO
Certification: SGS ISO
Model Number: 1.4462

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons
Price: 3650 USD/Ton
Packaging Details: Export Packing
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 500 Tons
Contact Now
Detailed Product Description
Width: 1000-2500mm Surface: 2B And NO.1
Length: 1000-12000mm Thickness: 0.5-100mm
Type: Hot Rolled

1.4462 Stainless Steel Plate S32205 Duplex Steel NO.1 Finish Duplex 2205 Chemical Composition

DUPLEX 2205

ASTM A 182, A 240, A 276,
A 789, A 790, A 815
UNS S31803, S32205
NACE MR0175

Forms of Duplex 2205 Available at Mega Mex

  • Sheet
  • Plate
  • Bar
  • Pipe & Tube (welded & seamless)
  • Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
  • Welding Wire and Welding Electrode

2205 Duplex Overview

Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.

The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).

Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.

Corrosion Resistance

2205 duplex stainless steel is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.

The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments.

Chemical Composition, %

Cr

Ni

Mo

C

N

22.0-23.0 4.50-6.50 3.00-3.50 .030 Max 0.14-0.20

Mn

Si

P

S

Fe

2.00 Max 1.00 Max .030 Max .020 Max Balance

What are the characteristics of Duplex 2205?

  • High resistance to chloride stress corrosion cracking
  • Resistance to chloride pitting and crevice corrosion
  • Good general corrosion resistance
  • Good sulfide stress corrosion resistance
  • High Strength
  • Good weldability and workability

In what applications is Duplex 2205 used?

  • Chemical process vessels, piping and heat exchangers
  • Pulp mill digesters, bleach washers, chip pre-steaming vessels
  • Food processing equipment
  • Oil field piping and heat exchangers
  • Flue gas desulfurization equipment

ASTM Specifications

Pipe Smls

Pipe Welded

Tube Smls

Tube Welded

Sheet/Plate

Bar

Flanges, Fittings & Valves

A790 A790 A789 A789 A240 A276 A182

Mechanical Properties
Specified Tensile Properties ASTM A240


Ultimate Tensile Strength, ksi Minimum

.2% Yield Strength, ksi Minimum

Hardness Max.

95 65 31 Rockwell C

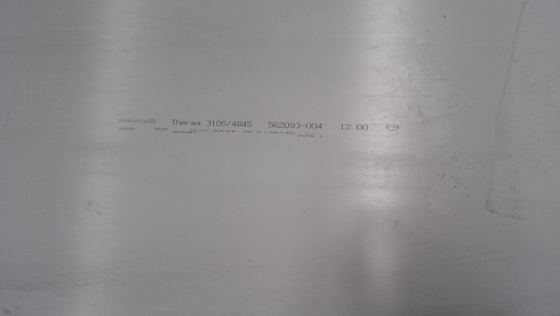

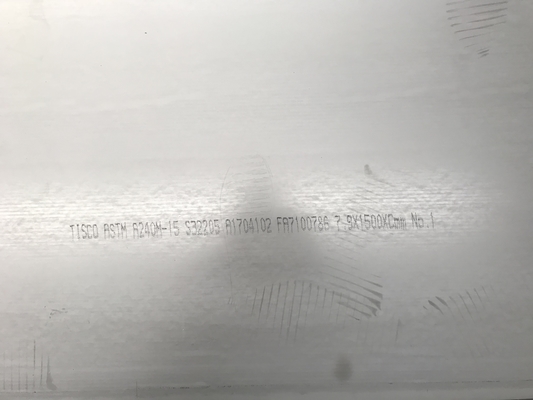

Products Photo :



1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength1000 mm Width S32205 1.4462 Stainless Steel Plates NO.1 Finish High Strength
