Product Details:
|
| Grade: | SA516 GR 70 | Width: | 1000-2500mm |
|---|---|---|---|
| Length: | 2000-12000mm | Thickness: | 3-200mm |
| Type: | Plate | Condition: | Hot Rolled |
| High Light: | high strength steel plate,hot rolled steel plate |
||

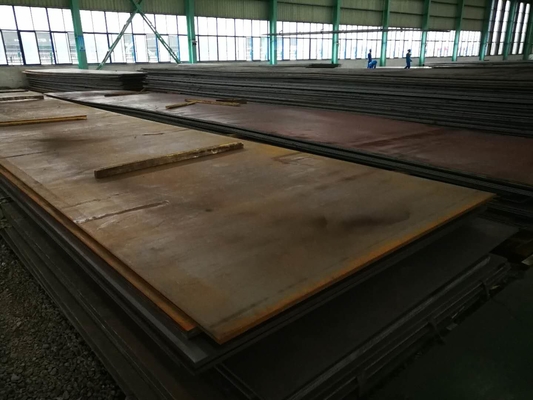

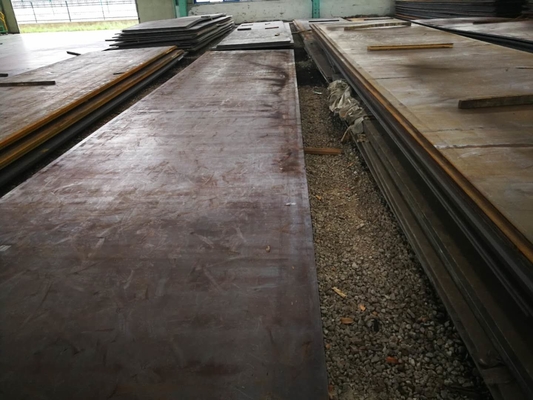

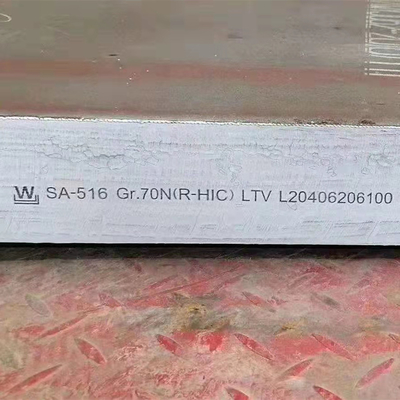

Pressure Vessel Steel Plate And Boiler Quality Steel Plate Asme Sa516 Gr 60
ASME SA516 grade introduction:
SA516 grade 55, SA516 grade 60, SA516 grade 65, SA516 grade 70. These 4 grades are mainly defined by their different tensile and yield strength range, which is influenced by content of Carbon. For example sa 516 grade 70 has the highest tensile and yield strength range due to the highest Carbon content(up to0.28%). For higher grade like sa516 gr-70 steel plate, preheating might be needed for metal arc welding process, especialy with thick steel plate.
Delivery State:
SA516-70n reffers to normalized steel plate product, for steel plate and sheet thinner than 40mm we normally supply them as rolled-steel coil. Plates with thickness above 40mm are supplied normalized. SA516 grade 70 steel plate density is 0.284 cu/in3 (7861 kg/m3).
Mild test:
ASME SA 516-carbon steel plates are manufactured with mill certification following EN10204 3.1 or EN10204 3.2 standard version.
Inspection: MOODY SGS BV GL DNV ABS LIOYD’S Test: X-ray, UT, magnetic particle, inspection.
ASME SA 516 GR.70-55 Chemical Composition:
| Chemical Composition | Maximum C % for thickness t (mm) | Mn % for thickness t (mm) |
Si % | P % max |
S % max |
||||
|---|---|---|---|---|---|---|---|---|---|
| 6-12.5mm | 12.5-25mm | 25-50mm | >50mm | ≤12.5mm | >12.5mm | ||||
| ASME A516 Gr 55 |
0.18 | 0.20 | 0.22 | 0.25 | 0.55-0.98 | 0.60-1.30 | 0.13-0.45 | 0.035 | 0.035 |
| ASME A516 Gr 60 | 0.21 | 0.23 | 0.23 | 0.25 | 0.6-0.9 | 0.80-1.20 | 0.13-0.45 | 0.035 | 0.035 |
| ASME A516 Gr 65 |
0.24 | 0.26 | 0.26 | 0.28 | 0.85-1.20 | 0.85-1.20 | 0.13-0.45 | 0.035 | 0.035 |
| ASME A516 Gr 70 |
0.27 | 0.28 | 0.28 | 0.30 | 0.85-1.20 | 0.85-1.20 | 0.13-0.45 | 0.035 | 0.035 |
ASME SA 516 GR.70-55 Mechanical Property:
| Mechanical Property | Tensile strength (MPa) |
Minimum yield strength (MPa) |
Minimum elongation (%) gauge length | |
|---|---|---|---|---|
| 50mm | 200mm | |||
| ASME A516 Gr 55 |
380-515 | 205 | 27 | 23 |
| ASME A516 Gr 60 | 415 - 550 | 220 | 25 | 21 |
| ASME A516 Gr 65 |
450 - 585 | 240 | 23 | 19 |
| ASME A516 Gr 70 |
485 - 620 | 260 | 21 | 17 |
If you need more detailed info on ASME A516 Gr-70 of steel plate or boiler steel plate of other standard, don't hesitate to send a message now from our professional sales and expert team!
