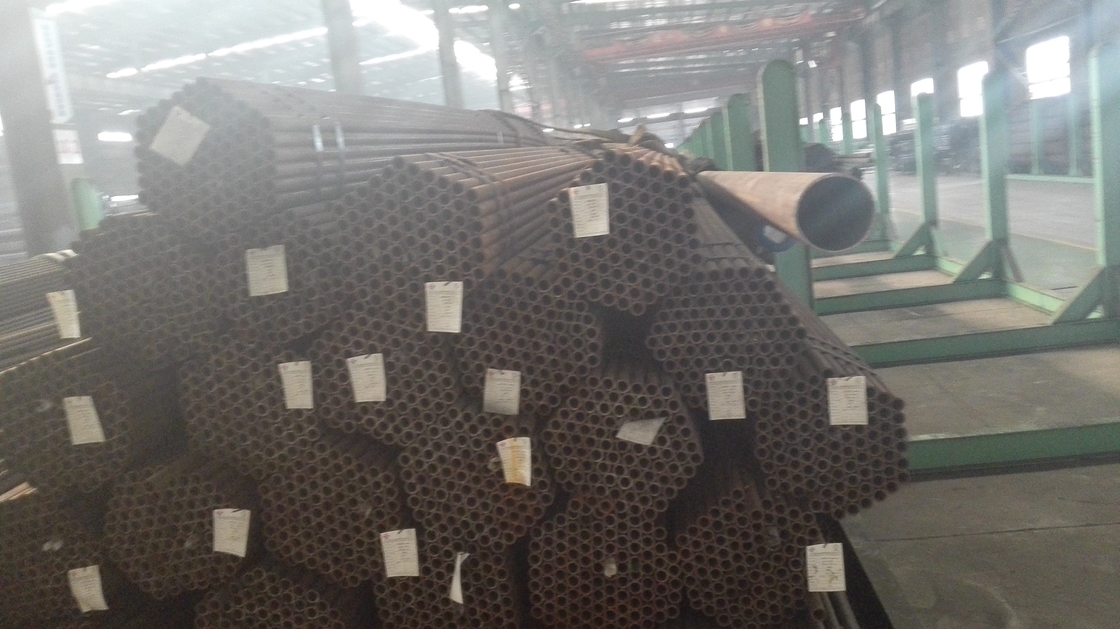

Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe

Certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe

Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe
Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe

Large Image :  Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe

Product Details:
Place of Origin: CHINA
Brand Name: GMS
Certification: SGS,BV
Model Number: 10#-45#, 16Mn, A53-A369, API J55-API P110, Cr-Mo alloy, Mo, Q195-Q345, 10#, 20#, 45#, 16Mn, A106(B,C), API J55, API K55, API L80, API N80, API P110, 12Cr1MoVG, 12CrMo, 15CrMo, 16Mo, Q345
Payment & Shipping Terms:
Minimum Order Quantity: 5 Ton
Price: US $400-800 / Ton
Packaging Details: Export packing
Delivery Time: 7 days
Payment Terms: T/T or L/C
Supply Ability: 2500 Tons every month

Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe

Description
Name: Seamless Steel Pipe Type: Hot Rolled / Cold Drawn
Thickness: 8 - 25 Mm Application: Structure Pipe
Outer Diameter: 50 - 194 Mm Alloy Or Not: Non-alloy
High Light:

heavy steel pipe

,

structural steel pipes

Material 20#,65*12*6-12m,Hot Rolled Low carbon seamless steel pipe



Advantaged Product Specification
English Chinese
Outside Diameter Wall Outside Wall
(Inch) thickness Diameter thickness
  (Inch) (mm) (mm)
From 2 to 8 From 40S to 120S From 50 to 194 From 8 to 25
Length From 6m to 12m in accordance with customers' requirements
  Chinese American German
Material 10# ASTM A53-A St37 DIN1626
& ASTM A106-A St37-2 DIN17175
Standard ASTM A179-C St35.8 DIN17175
Description ASTM A192 St35.8 DIN17175
  20# ASTM A53-B St42-2 DIN1626
  ASTM A106-B St45-8 DIN17175
  ASTM A178-C St45-4 DIN1629
  45# ASTM A1045 CK45
  16Mn ASTM A210-C St52 DIN1629
  37Mn5 J55
  27SiMn
  CrMo ASTM 4135,4150 CrMo4 DIN17212
  40Cr ASTM 5140 41Cr4





Specifications:

 size range



NPS OD WT
INCH MM SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160
1/2" 21.3 2.11   2.41 2.77 2.77   3.73 3.73       4.78
3/4" 26.7 2.11   2.41 2.87 2.87   3.91 3.91       5.56
1" 33.4 2.77   2.9 3.38 3.38   4.55 4.55       6.35
1.1/4" 42.2 2.77   2.97 3.56 3.56   4.85 4.85       6.35
1.1/2" 48.3 2.77   3.18 3.68 3.68   5.08 5.08       7.14
2" 60.3 2.77   3.18 3.91 3.91   5.54 5.54       8.74
2.1/2" 73 3.05   4.78 5.16 5.16   7.01 7.01       9.53
3" 88.9 3.05   4.78 5.49 5.49   7.62 7.62       11.13
3.1/2" 101.6 3.05   4.78 5.74 5.74   8.08 8.08
4" 114.3 3.05   4.78 6.02 6.02   8.56 8.56   11.13   13.49
5" 141.3 3.4     6.55 6.55   9.53 9.53   12.7   15.88
6" 168.3 3.4     7.11 7.11   10.97 10.97   14.27   18.26
8" 219.1 3.76 6.35 7.04 8.18 8.18 10.31 12.7 12.7 15.09 18.26 20.62 23.01
10" 273 4.19 6.35 7.8 9.27 9.27 12.7 12.7 15.09 18.26 21.44 25.4 28.58
12" 323.8 4.57 6.35 8.38 9.53 10.31 14.27 12.7 17.48 21.44 25.4 28.58 33.32
14" 355.6 6.35 7.92 9.53 9.53 11.13 15.09 12.7 19.05 23.83 27.79 31.75 35.71
16" 406.4 6.35 7.92 9.53 9.53 12.7 16.66 12.7 21.44 26.19 30.96 36.53 40.19
18" 457.2 6.35 7.92 11.13 9.53 14.27 19.05 12.7 23.83 39.36 34.93 39.67 45.24
20" 508 6.35 9.53 12.7 9.53 15.09 20.62 12.7 26.19 32.54 38.1 44.45 50.01
22" 558.8 6.35 9.53 12.7 9.53   22.23 12.7 28.58 34.93 41.28 47.63 53.98
24" 609.6 6.35 9.53 14.27 9.53 17.48 24.61 12.7 30.96 38.89 46.02 52.37 59.54
26" 660.4 7.92 12.7   9.53     12.7
28" 711.2 7.92 12.7 15.88 9.53     12.7





Application of seamless steel pipe



1. Construction are: pipeline under most more building in extraction of groundwater, the boiler hot water use, etc.

2. Mechanical processing, bearing sleeve, processing machinery spare parts, etc.

3. Electrical class: gas pipeline, water power fluid.

4. Wind farms anti-static tube, etc.

Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe 0Material 20#,65*12*6-12m Hot Rolled Low Carbon Seamless Steel Pipe 1
