Product Details:
|
| Steel Grade: | Alloy Steel | Alloy Or Not: | Is Alloy |
|---|---|---|---|
| Technique: | Hot Rolled,Forged,Cold Drawn | Application: | Structural Steel Bar |
| Type: | Alloy Steel Bar | Standard: | ASTM,DIN,AISI,JIS |
| Special Use: | Mold Steel | Shape: | Round |
| Length: | 1m-6m | Surface Treatment: | Black/Peeling/Polishing/Machined |
| Dimensions: | 10mm~800mm | Heat Treatment: | Normalized +Annealed +Quenched + Tempered |
| High Light: | 50CrV4 spring steel round bar,DIN 1.8159 spring steel round bar,SAE9260 spring steel round |
||

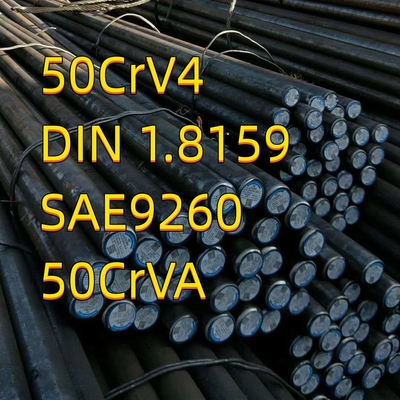

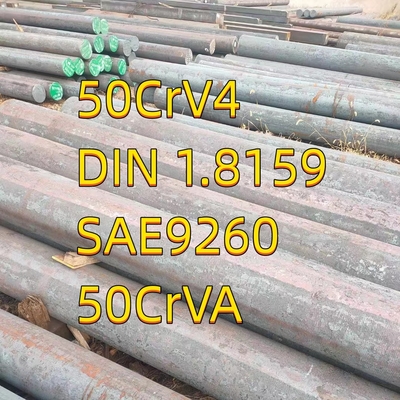

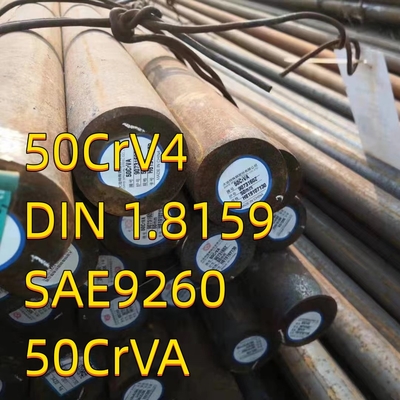

50CrV4 DIN 1.8159 SAE9260 50CrVA Spring Steel Round Bar Material OD 180 mm x 2500 mm
1. Standard: JIS, AISI, GB, DIN, EN
2. Length: 2000-6000mm or as customer's requirement
3. Surface: Black/grinded/Milled
4.Technique: Hot Rolled/Cold Drawn/ Forged
5. Diameter: 16-220mm
Grade
| GB | DIN | JIS | ASTM |
| 50CrVA | 50CrV4 | SUP10 | 61500 |
Chemical Composition
C:0.46-0.54 Si:0.17~0.37 Mn:0.50~0.80 P:Max 0.030 S:Max 0.025 Cr:0.80~1.10 Ni: Max 0.35 Cu:Max 0.25
Mechanical properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation | Reduction of area |
| min 1274 (130) | min 1127 (115) | min 10% | min 40 |
Sizes
Round bar: Diameter(mm) Max 800mm; Length(mm) Max 12000mm.
| Packing | 20ft: GW 27T; (5.80mX2.13mX2.18m) 40ft: GW 27T; (11.8mX2.13mX2.18m) |
| MOQ | 1 TON |
| Dilvery time | 7 days after receiving 30% deposit by T/T or L/C |
Packing
Standard export packing, or as the customers' requirement.
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?A: yes,We are honored to offer you samples
Q: What is your terms of payment ?A: Payment= 30% T/T in advance ,balance before shipment.
Q:What are the difference between you and other steel company?
A:Quality first! The price will be changed according to your order.
Q:Where is your factory located?How can I visit there?
A:Our factory is located in wuxi city,you can fly to wuxi airport and we will arrange people to go there pick you up.
