Product Details:
|
| Steel Grade: | Alloy Steel,4140 /40crmo/en19/C45 | Alloy Or Not: | Is Alloy |
|---|---|---|---|
| Technique: | Cold Drawn | Type: | Alloy Steel Bar |
| Standard: | ASTM,DIN | Shape: | Round |
| Surface Treatment: | Black/Peeling/Polishing/Machined | Diameter: | 12mm-650mm |
| Steel Grade |

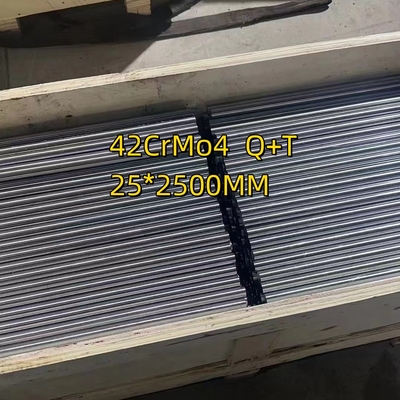

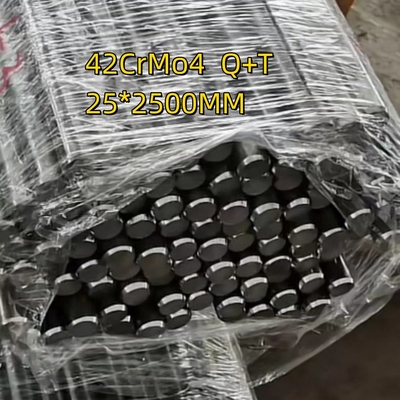

Ø16*2500mm SAE4140 SCM440 42CrMo4+QT Alloy Steel Round Bar With 3.1 Certificate |
|
| Standard |
SAE4140 SCM440 42CrMo4 |
|
| Diameter | 5.5-250 mm | |
| Length | 3000mm-12000mm or as client's request | |
| Straightness | 3mm/M max | |
| Tolerance | +0.5mm/-0(dia),+5mm/-0(L) | |
| MOQ | 5 tons | |
| Heat treatment | Normalized / Annealed / Quenched / tempered | |
| Surface | black,mill,polished,brush,etc | |
| Test | Ultrasonic test according to SEP 1921-84 G3 C/c | |
| Application | Widely used in construction industry for reinforcing concret(Express way; office building, Bridge etc) Trasportation By sea(20' 40' container), parts of larger cross-sections, crankshafts, gears. | |
| Packaging | Export standard, seaworthy | |
| Delivery time | 10-20 days after confirmed order | |
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) | |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | ||
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) | ||
| Item Type | Diameter (MM) | Length |
| Round Bar | 8-400 | 6/9/12m or follow client's requirment. |
| Steel Wire Rod | 5.5-34 | Coil |
| Steel Rebar | 5.5-40 | Cut to length or Coil |
| Category | Grades | Sizes | Standard |
| Carbon structure steel | Q195,Q215,Q235,Q275 | 16mm-250mm | GB/T700-2006 |
| Low alloy high strength structure steel | Q295,Q345,Q390,Q420, Q460 | 16mm-250mm | GB/T1591-2008 |
| Prime Carbon structure steel | 10#, 20#, 35#, 45#, 60#, 20Mn,65Mn,B2, B3,JM20, SH45,S45C,C45 | 16mm-250mm | GB/T699-1999 |
| Alloy structure steel | 30Mn2,40Mn2,27SiMn, 42Crmo, 20Cc40Cr,20CrMo, 35CrMo,20CrMnTi, 30CrMnTi,20MnVB, 20MnTiBf 45MnV 20CrNiMo, Q345B, 35MnBM,40MnB,36Mn2V | 16mm-250mm | GB/T3077-1999 |
| Spring Steel | 65Mn,60Si2Mn, 50CrVA | 16mm-250mm | GB/T1222-84 |
| Bearing Steel | GCr15tGCr15GD,55SiMoV | 16mm-250mm | GB/T18254-2002 |
| Structural steels subject to end-quench hardenability requirements | 20CrMnTi,30CrMnTi, 20Cr, 40Crf30CrMo,42CrMoA,27SiMn, 40Mn2H, 20CrNiMo, 40Mn2,q345b,35MnBM, 40MnB,45MnV. | 16mm-250mm | GB/T5216-2004 |
| Oil wells structural steel | 37Mn5,36Mn2V | 16mm-250mm | Q/LYS248-2007 |
| Marine anchor chain steel | CM490,CM690,M30Mn2 | 16mm-250mm | YB/T66-1987 GB/T18669-2002 |
| C | Si | Mn | S | P | Cr | Ni | Cu | Mo |
| 0.38~0.45% | 0.17~0.37% | 0.50~0.80% | ≤0.035% | ≤0.035% | 0.90~1.20% | ≤0.30% | ≤0.30% | 0.15~0.25% |
Q: What is your terms of payment?
A: 30% TT in advance and balance paid before loading.
Q: Could you provide sample?
A: Yes, we are honored to offer you samples for quality check.
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Q: How long does it take for samples and mass production?
A: Usually it will take3-5 days for ready molds, 15-20days for new molds and samples after confirmation, 25-30 days for mass production.
