Product Details:
|
| Steel Grade: | Alloy Steel | Alloy Or Not: | Is Alloy |
|---|---|---|---|
| Technique: | Hot Rolled,Forged,Cold Drawn | Application: | Structural Steel Bar,Die Steel Bar,Tool Steel Bar |
| Type: | Alloy Steel Bar | Standard: | ASTM,DIN,AISI,JIS |
| Special Use: | Free Cutting Steel | Shape: | Round |
| Length: | 1--12m | Surface: | Black Or Bright |
| Surface Treatment: | Black/Peeling/Polishing/Machined | Diameter: | 12mm-650mm |
| High Light: | 51CrV4 Spring Steel Bar,SAE6150 Spring Steel Round Bar,ANSI Spring Steel Round Bar |
||

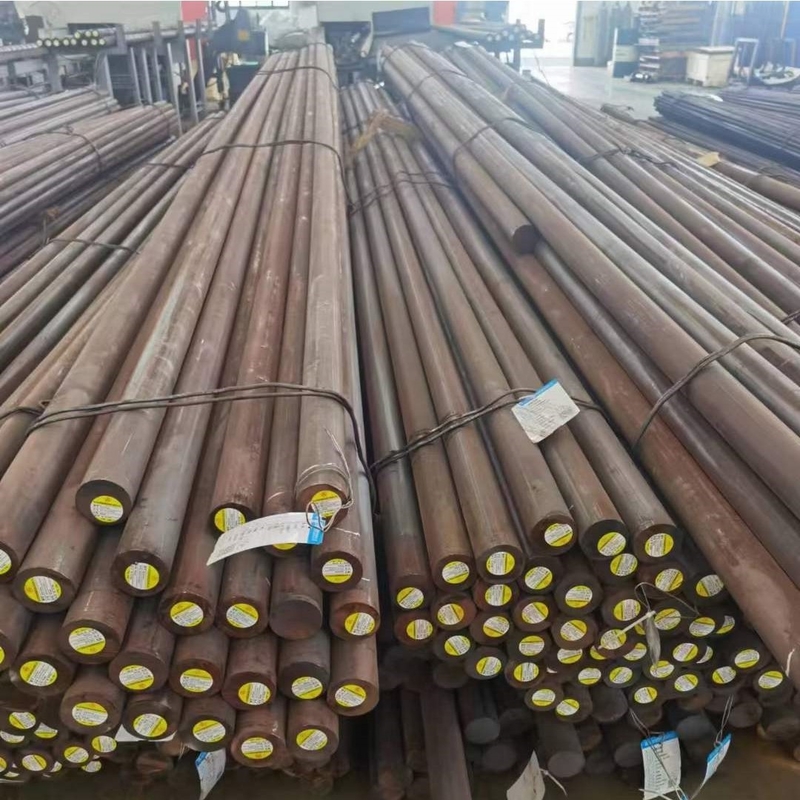

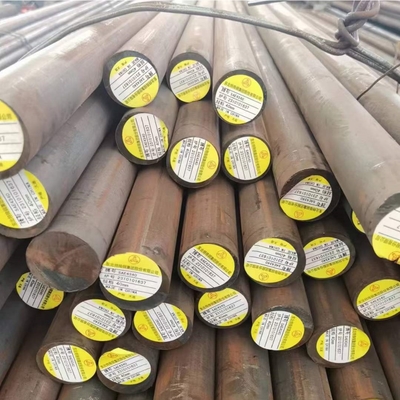

50CrVA Gade in 65mm Diameter 51CrV4 SUP10 ANSI SAE6150 Spring Steel Round Bar
50CrVA has good mechanical and technological properties and high hardenability. The addition of vanadium refines the grain size of steel, reduces overheating sensitivity, improves strength and toughness, has high fatigue strength and high yield ratio. However, the weldability is poor and the cold deformation plasticity is low. It is a kind of higher grade spring, which is used as an important spring with large section and high load, as well as valve spring, piston spring and safety valve spring with working temperature<300 ºC. Generally, the supply specification of plates is 1.5~10.0MM, which is mostly in the annealed state, and more than 10~30mm is in the non-annealed state. The final heat treatment of medium carbon alloy spring steel is quenching and tempering. After heat treatment, the steel has good toughness, high proportion limit and strength limit, high fatigue strength, similar to the hardenability of 65Si2MnWA, high hardenability and low overheating sensitivity; When the service temperature of the part is 300 ºC, its elasticity can still be maintained. The machinability of steel is good, but the plasticity is low and the weldability is poor during cold deformation.
| component | C | Si | Mn | P | S | Cr | Ni | Mo | V |
| minimum value | 0.47 | - | 0.7 | - | - | 0.9 | - | - | 0.1 |
| Maximum value | 0.55 | 0.4 | 1.1 | 0.025 | 0.025 | 1.2 | 0.4 | 0.1 | 0.25 |
| GB | ISC | CNS | JIS | KS | ASTM/AISI | UNS | ISO | DIN EN/DIN | W-Nr. |
| 50CrVA | A23503 | SUP10 | SUP10 | SPS6 | 6150 | G61500 | 51CrV4 | 51CrV4 | 1.8159 |
| Category | Grade | Diameter |
| High speed steel | 6542,M2,M35,M42 | 1mm-600mm |
| Mold steel | Cr12,Cr12MoV,Cr12Mo1V1,D2,SKD11,DC53 | 1mm-600mm |
| Carbon structure steel | Q195, Q215, Q235, Q275 | 1mm-600mm |
| Low alloy high strength structure steel | Q295, Q345, Q390, Q420, Q460 | 1mm-600mm |
| Prime Carbon structure steel | 10#, 20#, 35#, 45#, 60#, 20Mn, 65Mn, B2, B3, JM20, SH45,S45C, C45 | 1mm-600mm |
| Alloy structure steel | 30Mn2, 40Mn2, 27SiMn, 42Crmo,20Cr, 40Cr, 20CrMo, 35CrMo, 20CrMnTi, 30CrMnTi,20MnVB, 20MnTiB, 20CrNiMo, Q345B, 35MnBM,40MnB,36Mn2V, 45MnV, |
1mm-600mm |
| Spring Steel | 65Mn, 60Si2Mn, 50CrVA | 1mm-600mm |
| Bearing Steel | GCr15, GCr15GD,55SiMoV | 1mm-600mm |
| Structural steels subject to end-quench hardenability requirements | 20CrMnTi, 30CrMnTi, 20Cr, 40Cr, 30CrMo, 42CrMoA, 27SiMn, 40Mn2H, 20CrNiMo, 40Mn2, q345b, 35MnBM, 40MnB,45MnV. |
|
Diameter (thickness)
d mm |
tensile strength
σb Mpa |
yield pointσs
Mpa |
Elongation or elongation after fracture
δ % |
hardness
HBW |
|
d=25(Sample size)
|
Normalizing or quenching+tempering
≥645 |
Normalizing or quenching+tempering
≥380 |
Normalizing or quenching+tempering
≥13 |
Unheat-treated steel
≤255 |
|
|
|
|
|
Annealed steel
≤217 |
