Product Details:
|
| Steel Grade: | 400 Series 441 1.4409 | Type: | Welded |
|---|---|---|---|
| Welding Line Type: | ERW | Standard: | ASTM,AISI,DIN,JIS |
| Shape: | Round Section | Surface: | Annealed/Pickling/Polished/Brushed/Sand-blasted Finished |
| Thickness: | 0.5-25.4mm | Length: | 6 Meters Or Customized |
| Trade Terms: | FOB CIF CFR CNF EXWORK | ||
| High Light: | 0.5mm Welded Stainless Steel Pipe,AISI Stainless Steel Welded Pipe,1.4509 Welded Stainless Steel Pipe |
||

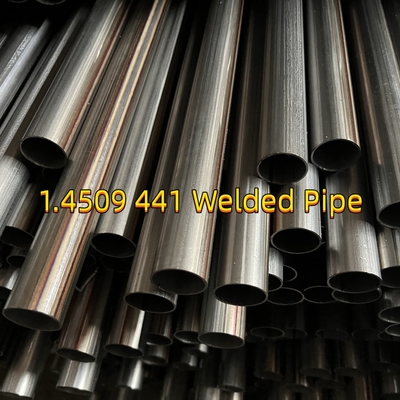

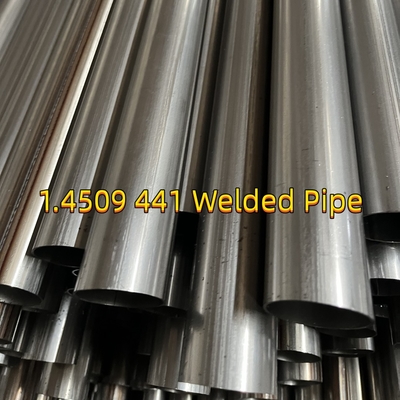

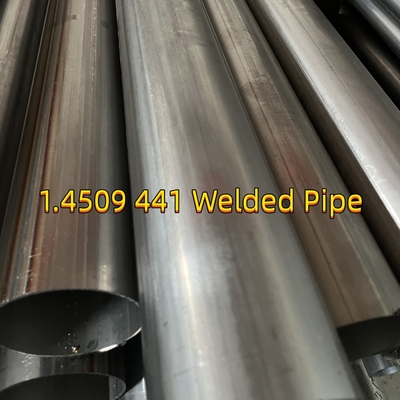

Stainless Steel Welded Pipe Diameter 60mm x thk 2,0mm x 6000mm Material 1.4509 18% Cr(AISI 441)
|
Production Name
|
Stainless Steel Tube, Stainless Steel Pipe
|
|
Production Size
|
Outer Diameter:6-2000 mm
Thickness:0.1-100 mm (Size can be customized.) Length:≤12000mm or as per customer request |
|
Product Standard
|
ASTM A213, ASTM A312, ASTM A789, ASTM A790
|
|
Material Grade |
Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 200series:201,202,202cu,204 400series:409,409L,410,420,430,431,439,440,441,44 Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304 Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo |
|
Technique
|
Cold Rolled; Hot Rolled
|
|
Lead Time
|
7-15 working days after the receipt of 30% deposit
|
|
Payment Terms
|
30% TT for deposit,70% TT /70% LC at sight balance before shipment
|
|
Surface
|
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
|
|
Advantage
|
We have stock, about 20000 tons.
|
|
Chemical Composition (%)
|
||||||||
|
Grade
|
C Max
|
Si Max
|
Mn Max
|
P Max
|
S Max
|
Ni
|
Cr
|
Mo
|
|
201
|
0.15
|
0.75
|
7.5
|
0.06
|
0.03
|
3.50-5.50
|
16.0-18.8
|
-
|
|
202
|
0.15
|
1.0
|
10.0
|
0.06
|
0.03
|
4.0-6.0
|
17.0-19.0
|
-
|
|
301
|
0.15
|
1.0
|
2.0
|
0.045
|
0.03
|
6.0-8.0
|
16.0-18.0
|
-
|
|
302
|
0.15
|
1.0
|
2.0
|
0.035
|
0.03
|
8.0-10.0
|
17.0-19.0
|
-
|
|
304
|
0.08
|
1.0
|
2.0
|
0.045
|
0.03
|
8.0-11.0
|
18.0-20.0
|
-
|
|
304L
|
0.03
|
1.0
|
2.0
|
0.035
|
0.03
|
8.0-12.0
|
18.0-20.0
|
-
|
|
316
|
0.08
|
1.0
|
2.0
|
0.045
|
0.03
|
10.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
316L
|
0.08
|
1.0
|
2.0
|
0.045
|
0.03
|
10.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
310S
|
0.08
|
1.5
|
2.0
|
0.035
|
0.03
|
19.0-22.0
|
24.0-26.0
|
-
|
|
321
|
0.08
|
1.0
|
2.0
|
0.035
|
0.03
|
9.0-12.0
|
17.0-19.0
|
-
|
|
410
|
0.15
|
1.0
|
1.0
|
0.035
|
0.03
|
|
11.5-13.5
|
-
|
|
430
|
0.12
|
0.75
|
1.0
|
0.04
|
0.03
|
Max 0.60
|
16.0-18.0
|
-
|
|
904L
|
2.0
|
0.045
|
1.0
|
0.035
|
|
23.0-28.0
|
19.0-23.0
|
4.0-5.0
|
|
2205
|
0.03
|
1.0
|
2.0
|
0.03
|
0.02
|
4.5-6.5
|
22.0-23.0
|
3.0-3.5
|
|
2507
|
0.03
|
0.80
|
1.2
|
0.035
|
0.02
|
6.0-8.0
|
24.0-26.0
|
3.0-5.0
|
AISI 441 stainless steel is a ferritic stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. 441 is the AISI designation for this material. S44100 is the UNS number.
It has a moderately high embodied energy and a moderately low tensile strength among wrought ferritic stainless steels.
The graph bars on the material properties cards below compare AISI 441 stainless steel to: wrought ferritic stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
Application:
- Heat exchangers
- Acid and nitrogen oxide pipelines
- Acid storage tanks
- Acid transport tanks
- Dairy, fruit and vegetable and brewery industries
- Textile industry
- Household appliances
Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi, Jiangsu, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel sheet aisi 441/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Iran, Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
