Product Details:
|
| Alloy Or Not: | Non-alloy | Technique: | Hot Rolled,Cold Drawn |
|---|---|---|---|
| Application: | Structural Steel Bar | Standard: | ASTM,DIN,AISI,JIS |
| Shape: | Round | Length: | 1m-6m |
| Surface: | Black Or Bright | Diameter: | 12mm-650mm |
| Delivery Condition: | Annealed | Dimensions: | 10mm~800mm,Dia 8-60mm |
| High Light: | Cold Drawn annealed Steel Round Bar,SAE1020 Steel Round Bar,6mm Steel Bar |
||

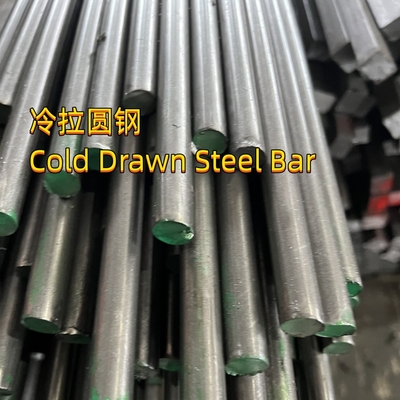

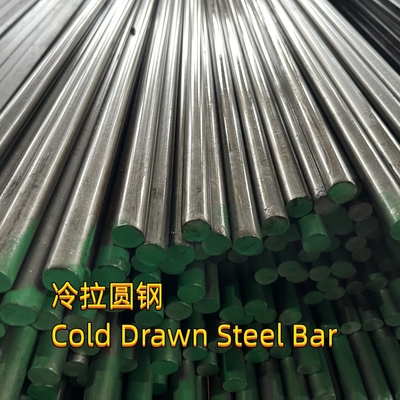

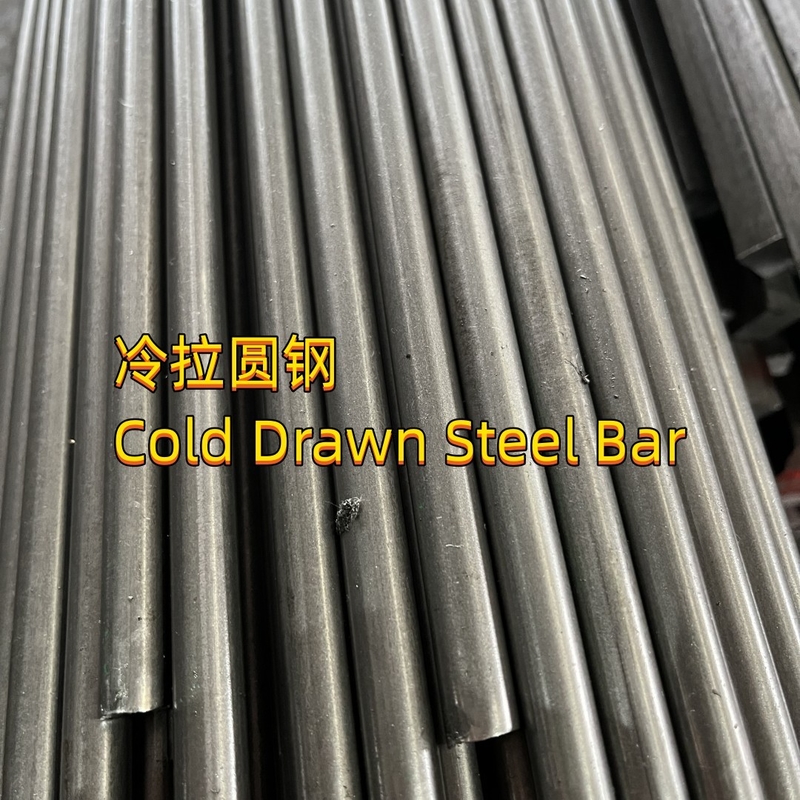

Round bar 6mm EN 10025-2 S355JR SAE1008 Cold Drawn Steel Round Bar
| Item | AISI 4140 1020 1045 Cold Drawn structure mild carbon/alloy forged bright cylinder steel round bar price for sale |
| Standard |
GB/T 700-2006,GB/T 1591-94,JIS G3101-2004, ASTM A36/A36M-05,ASTM A242/A242M-04,ASTM A529/A529M-05, ASTM A572/A572M-06,EN 10025-2-2004 |
| Material |
Q195,Q215 A,Q215 B,Q235 A,Q235 B,Q235 C, Q235D,Q275,Q275B,Q275C,Q275D,Q295,Q345,Q390,Q420, Q460, SS330,SS400,SS490,SS540,A36,1,GR.36,50(245),55(380),42(290), 60(415),65(450),S185(1.0035),S235JO(1.0114), S235JR(1.0038), S235J2(0.0117),S275JR(1.0044),S275JO(1.10143),S355JO(1.0553), E295(1.0050),E335(1.0060), S235J2W(1.861),S355J2W(1.8965),10#, 15#20# |
| Diameter | 4mm~800mm |
| Length | 1m,3m,5.8m,6m,12m or as required |
| Surface | polished,bright,black,coated,2b,ba,mirror,NO.4,8K |
| Package | Standard export seaworthy or as customers' requirements |
|
Application |
1.Mainly used in the manufacture of petroleum, chemical, gas separation and shipping container or other similar devices, such as all kinds of tower vessels, heat exchangers, torage tank and tank car, etc 2.Manufacture all kinds of stamping parts, construction and engineering structure and some of the less important machine structure and parts. 3. Buildings and Bridges,Vehicles, towers and other structures. 4.Used as a floor, workshop escalator, working pedal, ship deck and car plate and so on 5.Make fixed boiler, boiler and other important hull attachments. 6.Pressure vessels, welding gas cylinder steel plate 7.Production of cutting tools, measuring tool and die |
1. Material: 42CrMo4, 40Cr, CK45, ST52, 20MnV6
2. Tensile strength: Not less than 610 N/MM2
3. Yield strength: Not less than 355 N/MM2
4. Advanced inspection apparatus
5. Complete manufactured equipment
Detailed Description
1.CHEMICAL COMPOSITION
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
||
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
||
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
0.90-1.20 |
|
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
0.80-1.10 |
2.MECHANCIAL PROPERTIES
|
Material |
T.S N/MM2 |
Y.S N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
NORMALIZE |
|
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
Q + T |
3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required
