Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm

Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm
Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm

Large Image :  Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm

Product Details:
Place of Origin: China
Brand Name: BAO STEEL
Certification: ISO,SGS
Model Number: C276
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: 30 - 40 USD/Kg
Packaging Details: export packing
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 500 tons

Bright Polished Stainless Steel Bright Bar Hastelloy C276 100mm

Description
Product Name: C276 Round Bar Alloy Or Not: Non-alloy
Surface Treatment: Polished Tolerance: 0/+1mm
Length: 2000-6000mm Technology: Clod Drawn
High Light:

Bright Polished Stainless Steel Bright Bar

,

Hastelloy C276 Stainless Steel Bright Bar

,

100mm Stainless Steel Bright Bar

Bright Polished Hastelloy C276 Round Bar / Stainless Steel Bright Bar Diameter 4 - 100mm



Specification of our hastelloy C276 round bar



Products Name

Hastelloy C276 round bar

Finishing

Hot rolled / Cold Drawn

Diameter

hot rolled bars: 10 - 250mm

cold drawn bars: 4 - 60mm

Length

6m or cutting any length as request

Standard

ASTM  EN

MOQ

100 kgs

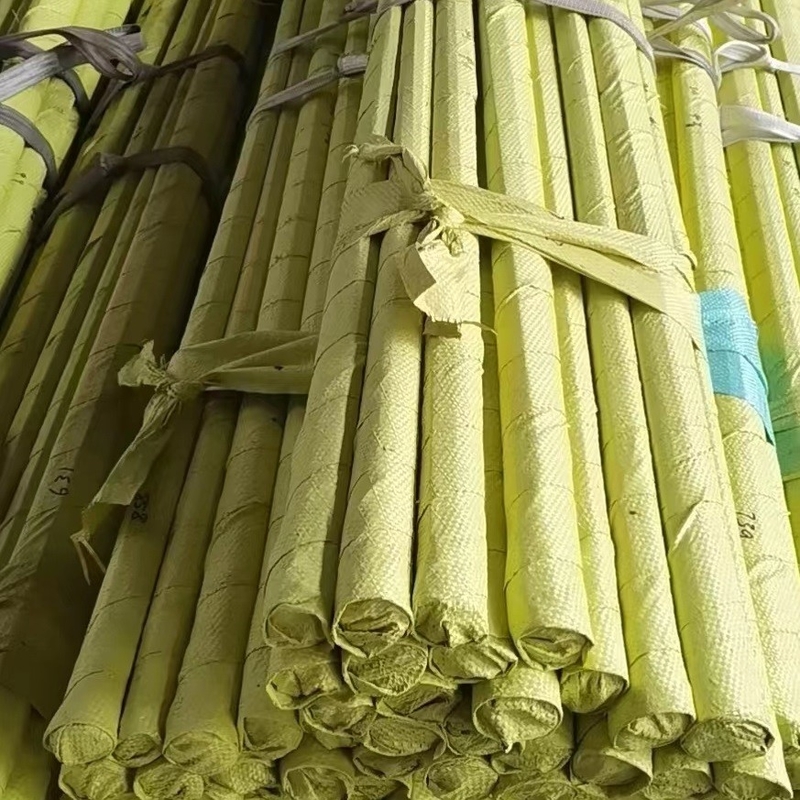

Packing

surround by waterproof paper and plastic foil

Loading Port

Shanghai Port(China)

Certificate

EN 10204-3.1 / CO or other certificate as request

Other Grade

Stainless steel: 201 303 304 310S 316L 321 2205 2507 410 420.etc

Monel: 400 500

Inconel 600 625 800 825.etc





Hastelloy C276 - UNS N10276 Advanced Nickel Alloy



Overview



HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.



Characteristics of Hastelloy C276

  • HASTELLOY C276 is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions.
  • HASTELLOY C276 has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.
  • HASTELLOY C276 is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications



Applications of hastelloy C276

  • Digesters and bleach plants in the paper industry.
  • Components exposed to sour gas.
  • Equipment for flue-gas desulfurisation plants.
  • Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.
  • Sulfuric acid reactors.
  • Organic chloride process equipment.
  • Equipment for processes utilizing halide or acid catalysts.




Some typical applications of HASTELLOY C276 include equipment components in chemical and petrochemical organic chloride processes and processes utilizing halide or acid catalysts. Other industry applications are pulp and paper (digesters and bleach areas), scrubbers and ducting for flue gas desulfurization, pharmaceutical and food processing equipment.

HASTELLOY C-276 is a nickel-chromium-molybdenum alloy with universal corrosion resistance unmatched by any other alloy. It has outstanding resistance to a wide variety of chemical process environments including ferric and cupric chlorides, hot contaminated mineral acids, solvents, chlorine and chlorine contaminated (both organic and inorganic), dry chlorine, formic and acetic acids, acetic anhydride, sea water and brine solutions and hypochlorite and chlorine dioxide solutions. Alloy C276 also resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. It has excellent resistance to pitting and stress corrosion cracking.

HASTELLOY C276 sheet 0.044" thick in the heat-treated condition at 2050°F, rapid quenched, has an average olsen cup depth of 0.48". Alloy C-276 can be successfully fabricated by many methods. The alloy tends to work harden but with the proper care, the alloy is readily hot and cold formed. Complete information on welding, machining and forming is available


Chemical Requirements





Ni

Cr

Mn

Mo

C

Si

Fe

Max % Bal. 16.5 1.0 17.0 0.010 0.08 7.0
Min %   14.5   15.0     4.0



Mechanical Property Requirements



  Ultimate Tensile Yield Strength (0.2% OS) Elong. in 2 in. (50.8mm) or 4D min,% R/A Hardness
Min 100 KSi 41 KSi 40
Max
Min (Metric) 690 MPa 283 MPa
Max





Specifications

Form Standard

UNS

UNS N10276

Bar

ASTM B574 Din 17752

Wire



Sheet

ASTM B575 Din 17750

Plate

ASTM B575 Din 17750

Fitting

ASTM B366

Forging

ASTM B564

Tube

ASTM B619 ASTM B622 ASTM B626 Din 17751

Pipe

ASTM B619 ASTM B622 ASTM B626 Din 17751

Weld Wire

A5.14 ERNiCrMo-4

Weld Electrode

A5.11 ENiCrMo-4

Din.

2.4819 All Forms
