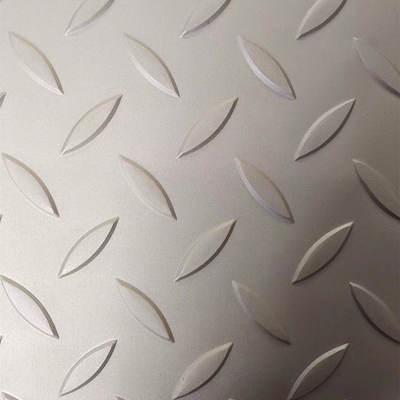

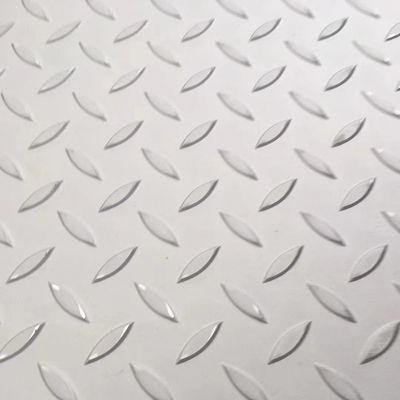

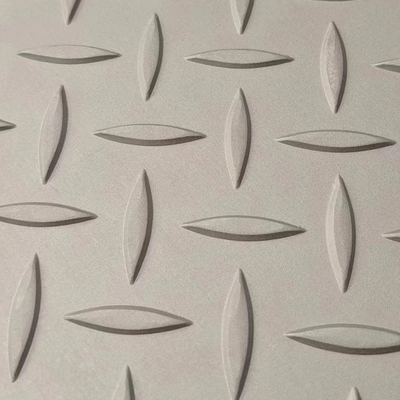

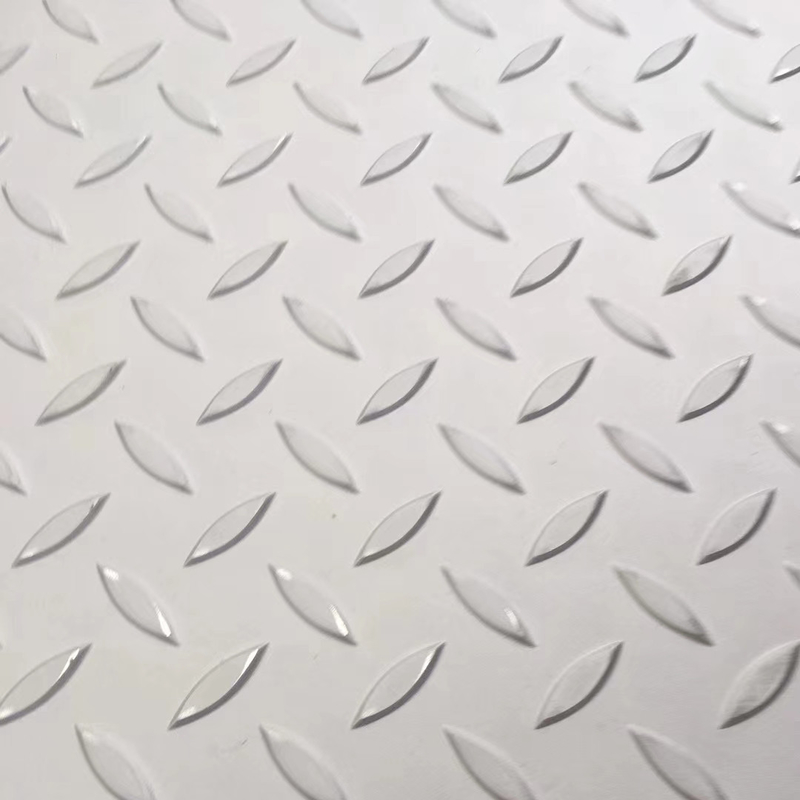

SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered

SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered
SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered

Large Image :  SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered

Product Details:
Place of Origin: China
Brand Name: MITTEL
Certification: SGS ISO MTC
Model Number: 304
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 2.85 USD/KG
Packaging Details: Wooden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered

Description
Material: Stainless Steel,SUS304 Metal Type: Hot Rolled
Usage Condition: FLOOR,Desktop Size: 1220*2440 1500*3000mm
Shape: Flat Plate Thickness: 1-10mm
High Light:

ASTM Stainless Steel Plates Nickel

,

ASTM A240M Stainless Steel 304 Plates

,

SUS304 Stainless Steel Plates 10mm

Material SUS-304 (Nickerl 8 HR (Hot Roll) ASTM-A240M-304 Checkered Plate or Chequered Plate


Product Details

Grade 304 Chequered is the standard "18/8" stainless; it is the most versatile and most widely used Chequered, available in a wider range of products, forms and finishes than any other. Stainless Steel 304 Chequered Plates has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special "304DDQ" (Deep Drawing Quality) variants. Grade 304 Chequered Plate is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.



Stainless Steel 304 Chequered Plate Specification

Standard : ASTM / ASME A240 / SA240

Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm

Thickness : 0.1mm to 12 mm Thk

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Equivalent Grades of SS 304 Chequered Plate

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3041.4301S30400SUS 304304S3108Х18Н10Z7CN18-09X5CrNi18-10

Stainless Steel 304 Chequered Plate Chemical Composition

ElementSS 304
C0.08 max
Mn2 max
Si0.75 max
P0.045 max
S0.030 max
Cr18 – 20
Ni8 – 11

Mechanical Properties of SS 304 Chequered Plate

ElementSS 304
Density8.0 g/cm3
Melting Point1400 °C (2550 °F)
Tensile StrengthPsi – 75000 , MPa – 515
Yield Strength (0.2%Offset)Psi – 30000 , MPa – 205
Elongation35 %

304 Chequered Plate Application

  • Automotive

  • Railway & Transport

  • Architecture, Building & Construction

  • Chemical & Petrochemical Industries

  • Pharmaceutical

  • Energy and Power

  • Oil and Gas Industries

  • Kitchenware and Food Processing Industries

  • Plumbing And Overhead Water Tanks

SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered 0SUS304 Stainless Steel Plates Nickel 8 HR ASTM A240M 304 Checkered 1
