Product Details:
|
| Certification: | CE, ISO, BV, SGS | Stock: | Always In Good Stock |
|---|---|---|---|
| Product Name: | Stainless Steel Seamless Pipe & Tube | Outer Diameter: | DN10 - DN500 |
| Wall Thickness: | SCH5 - SCH160 | Standard: | AISI, ASTM, JIS, DIN, EN, GB |
| Color: | Natural Color | Quality: | Class 1 |
| Type: | Seamless | Main Grade: | 304 304L 304H 309S 310S 316L 316Ti 321 347 .etc |
| High Light: | High Corrosion Resistant Stainless Seamless Pipe,316Ti Stainless Seamless Pipe,Stainless Seamless Pipe For Heat Exchangers |
||

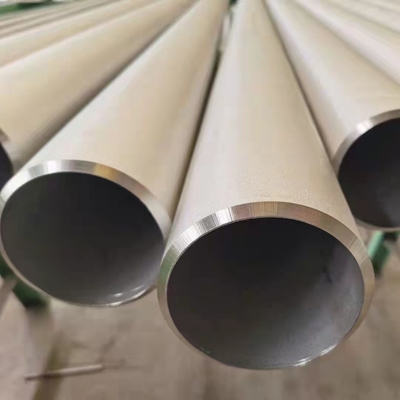

High Corrosion Resistant Stainless Steel Seamless Pipe Grade 316Ti / 1.4571 / UNS S31635
More informations of our stainless steel pipe
| Products | Stainless Steel Pipe &Tube |
| Model Number | 200 Series:201 202 |
| 300 Series:301 302 303 304 304L 309 309S 310 316 316L 316Ti 321 904L | |
| 400 Series:410 420 430 440 | |
| Duplex stainless:2205 2507 | |
| Type | Flat/corrugated/checkered |
| Processing Service | Bending,Welding,Decoiling,Punching,Cutting, Moulding |
| Delivery Time | 3-10 days |
| Payment terms | 30%TT Advance+70% Balance against the copy of bill of loading |
| Sample | Sample Avaliable |
| Inspection | Accept Thrid Party Inspection |
| Port | Tianjin Shanghai Qingdao |
| Certification | ISO9001 |
| Packing | Standardsea worthy export packing or according to the customers' request. |
| Applications: | Kitchenware,home appliances,construction decoration,stairs,refrigerated container,burner parts,exhaust parts of auto |
| Container Size: | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)24-26CBM |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)54CBM | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)68CBM |
About 316Ti Stainless Steel
Type 316Ti is a titanium stabilized variation of alloy 316. This austenitic chromium-nickel stainless steel containing molybdenum which increases the corrosion resistance, improves resistance to pitting chloride ion solutions and provide increased strength at elevated temperatures. Properties are similar to those of alloy 316 except that 316Ti due to its Titanium addition can be used at elevated sensitization temperatures. Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids, acid sulfates and alkaline chlorides.
Applications of 316Ti Stainless Steel
| Chemical Composition of 316Ti Stainless Steel | |||||||||
| Quality | C | Mn | PA | S | Si | Cr | NU | B.C | T |
| 316Ti (1.4571) | 0.08max | 2.0 | 0045 | 0030 | 1.0 | Between 16.0-18.0 | Between 10.0 and 14.0 | Between 2.0-3.0 | 0.70 max |
| Mechanical Properties at Room Temperature of 316Ti Stainless Steel | |
| Quality | 316Ti (1.4571) X6CrNiMoTi17-12-2 |
| Tensile strength | 485 MPa |
| Yield strength, (0.2%) | 170 MPa |
| Hardness, Rockwell (HB) | - |
Stainless steel pipe dimension as per astm & weight
| Nominal | Outside Diameter | Sch 5S | Sch 10S | Sch-40S | Sch-80S | Sch-160S | Sch-XXS | |||||||
| mm | inch | mm | WT mm | Weight (Kg/mt) | WT mm | Weight (Kg/mt) | WT mm | Weight (Kg/mt) | WT mm | Weight (Kg/mt) | WT mm | Weight (Kg/mt) | WT mm | Weight (Kg/mt) |
| 3 | 1/8 | 10.3 | 1.24 | 0.276 | 1.24 | 0.28 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
| 6 | 1/4 | 13.7 | 1.24 | 0.390 | 1.65 | 0.49 | 2.24 | 0.631 | 3.02 | 0.80 | - | - | - | - |
| 10 | 3/8 | 17.1 | 1.24 | 0.490 | 1.65 | 0.63 | 2.31 | 0.845 | 3.20 | 1.10 | - | - | - | - |
| 15 | 1/2 | 21.3 | 1.65 | 0.800 | 2.11 | 1.00 | 2.77 | 1.27 | 3.75 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.87 | 1.68 | 3.91 | 2.20 | 5.54 | 2.89 | 7.82 | 3.63 |
| 25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
| 32 | 1 1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.56 | 3.38 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
| 40 | 1 1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 10.16 | 9.54 |
| 50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.1 | 11.07 | 13.44 |
| 65 | 2 1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.4 | 9.53 | 14.9 | 14.2 | 20.39 |
| 80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 5.49 | 11.30 | 7.62 | 15.2 | 11.1 | 21.3 | 15.24 | 27.65 |
| 100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.3 | 13.49 | 33.54 | 17.12 | 41.03 |
| 125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 6.55 | 21.8 | 9.53 | 31.97 | 15.88 | 49.11 | 19.05 | 57.43 |
| 150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 7.11 | 28.3 | 10.97 | 42.7 | 18.2 | 67.56 | 21.95 | 79.22 |
| 200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 8.18 | 42.6 | 12.7 | 64.6 | 23.0 | 111.2 | 22.23 | 107.8 |
| 250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 9.27 | 60.5 | 12.7 | 96.0 | 28.6 | 172.4 | 25.40 | 155.15 |
| 300 | 12 | 323.9 | 3.96 | 31.25 | 4.57 | 36.00 | 9.52 | 73.88 | 12.7 | 132.0 | 33.32 | 238.76 | 25.40 | 186.97 |
| 350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 11.13 | 94.59 | 19.05 | 158.08 | 35.71 | 281.70 | - | - |
| 400 | 16 | 406.4 | 4.19 | 41.56 | 4.78 | 47.29 | 12.7 | 123.30 | 21.41 | 203.33 | 40.46 | 365.11 | - | - |
| 450 | 18 | 457.2 | 4.19 | 46.80 | 4.78 | 53.42 | 14.27 | 155.80 | 23.8 | 254.36 | 45.71 | 466.40 | - | - |
| 500 | 20 | 508.0 | 4.78 | 59.25 | 5.54 | 68.71 | 15.09 | 183.42 | 26.19 | 311.2 | 49.99 | 564.68 | - | - |
| 600 | 24 | 609.6 | 5.54 | 82.47 | 6.35 | 94.45 | 17.48 | 255.41 | 30.96 | 442.08 | 59.54 | 808.22 | - | - |
