Product Details:
|
| Material: | Stainless Steel,SUS304 | Metal Type: | Stainless Steel |
|---|---|---|---|
| Shape: | Flat Plate | Usage: | Garden Decoration,flower And Plants Planting,outdoor,office,Park |
| Thickness: | 1.5-8 Mm Or Customized | Surface: | According To Customer Demand,Mirror Or Matt |
| High Light: | 304 316L Non Slip Steel Plate,6000mm Length Stainless Steel Sheet,316L Stainless Steel Sheet SUS304 |
||
MITTEL Steel Centre produces, supply and export a top quality Stainless Steel Anti Slip Sheets which are mainly used in cooling chambers, rooms, hospitals, thresholds and in the lift industry. Due to their flat surfaces, the sheets have the large advantage of preventing damaging vibrations and noise-development during transport.
Salient Features:
Clients can avail these SS Anti Slippery Sheets from us in a wide spectrum of thicknesses, sizes, length and Stainless steel grades like 201, 304, 316, 430 etc. at most affordable prices. We can customize the pattern and size as per customer’s specific requirement. Our offered range of anti-slip steel sheets supplied and exported all over USA, Australia, Canada, and Gulf countries especially in Dubai, Bahrain, Iran, Iraq, Kuwait, Oman, Qatar, Saudi Arabia, and the United Arab Emirates etc. Please contact us today for more information or request a free estimate for our anti slippery stainless steel sheet.
SPECIFICATIONS OF STAINLESS STEEL ANTI SLIPPERY |
||
| Material | Stainless Steel | |
| Grade | 201,304,316, 430 | |
| Thickness | 0.3 ~ 5.0 (mm) | |
| Width | 1000mm, 1220mm, 1250mm, 1500mm | |
| Length | 2000mm, 2440mm, 2500mm, 3000mm | |

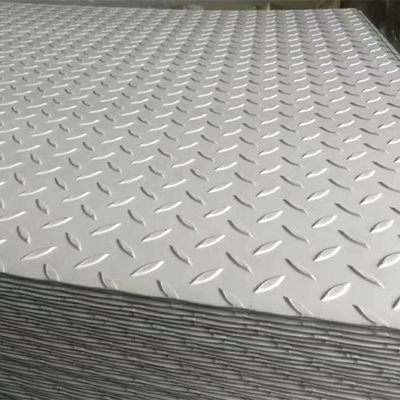

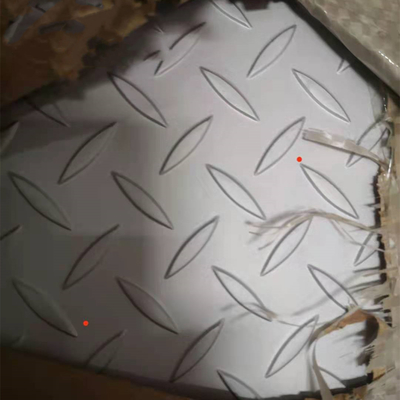

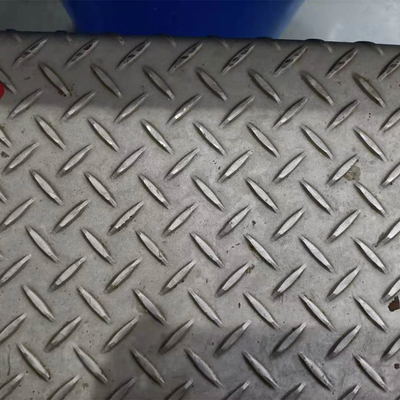

What is stainless steel checker plate
Stainless steel checker plate:The checker plate uses the machine's gravity to punch holes of different shapes and sizes on the stainless steel surface.Herringbone flower,small oval,millet flower,five-pin flower, round convex hole,button-shaped convex hole, etc.Features:1.non-slip,long use time;2.fire prevention and moistureproof,easy to scrub clean;3.Subsequent plating process can be done without fingerprints.
Thickness: 1.0mm – 6.0mm
Width: 600mm - 1500mm
Length: 1000mm-6000mm
Finish: 2B, NO.1
Forming way: hot rolled, cold press
Grade: 304,201,316L, 430
Application about stainless steel checker plate
Because of its surface rib bar, non-slip effect, can be used as the floor, factory escalator, working platform pedals, ship deck, car floor and so on. The beautiful appearance of the tread plate, non-slip, strengthen the performance, saving steel and many other advantages, in transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields have a wide range of applications. In general, the use of square on the mechanical properties of the board, mechanical performance is not high, so the quality of the main pattern is the pattern into flower rate, pattern height, pattern height difference. Currently available on the market from the thickness of 1.0-6mm ranging from the width of the common1219 1250,1500 mm.
Checkered plates are used in the workshop, large equipment or ship walkways and stair pedals, the surface of the diamond-shaped or lenticular pattern of steel. The size of the plate is based on the basic thickness (excluding the thickness of the rib).
Pattern board height not less than 0.2 times the thickness of the substrate; intact pattern, the pattern allows a height of not more than half of the thickness tolerance of the local slight burr
Production process about stainless steel checker plate
Usually, there are 2 production process for checker plate, one is hot rolled with NO.1 finish, and other is cold press with NO.1 or 2B finish. Hot rolled is expensive than cold press
Factory and Machinery Equipment :
We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
Different kinds of finish sevices
